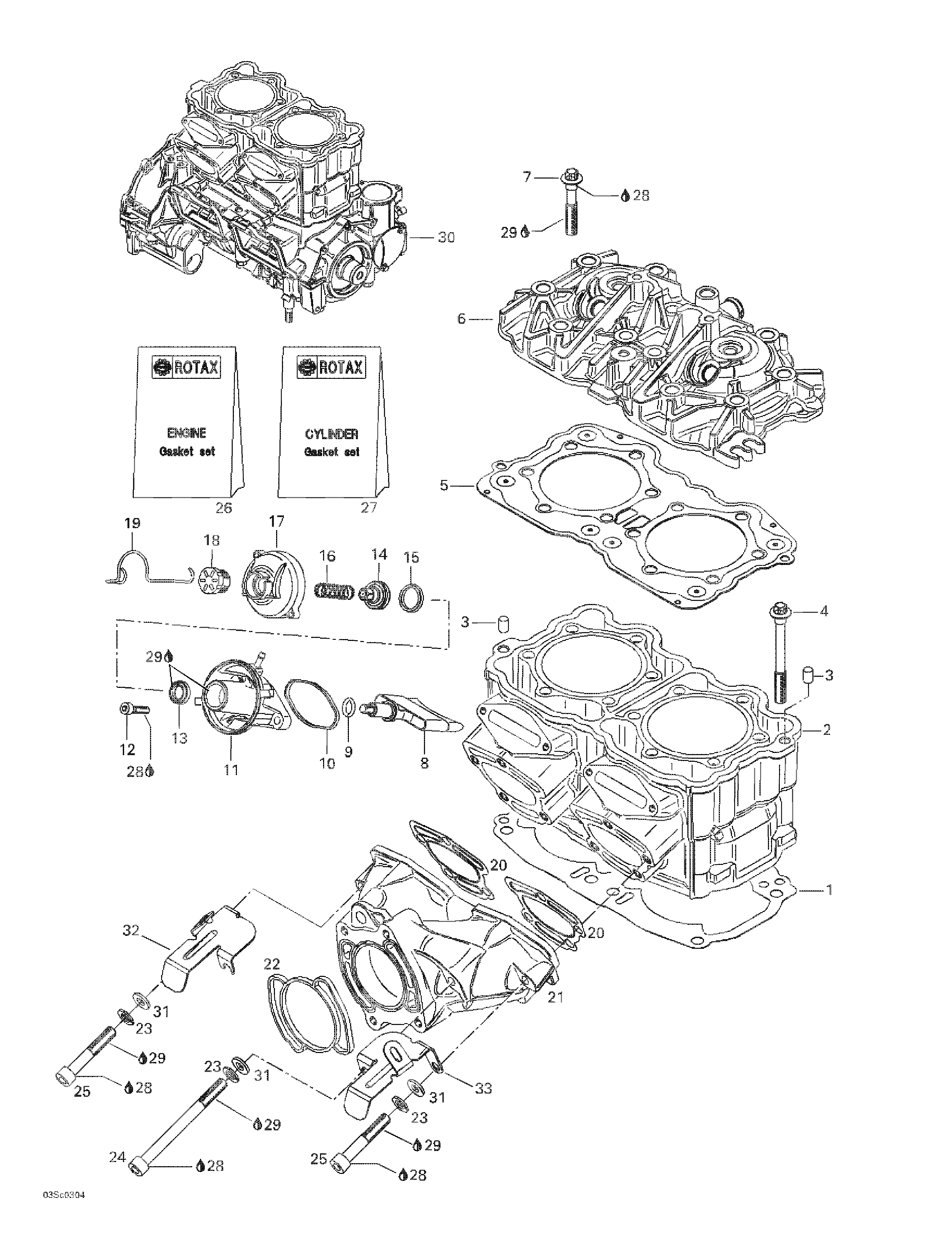

01- Cylinder, Exhaust Manifold для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1420931907 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
420931908 Gasket Cylinder 0.7 mmGasket Cylinder 0.7 mm
-
420931906 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
420931905 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
2420613576 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3420632010 Pin 8 x 12Pin 8 x 12
-
4420640293 Torx Screw M10 x 94Torx Screw M10 x 94
-
5420931706 Cylinder Head GasketCylinder Head Gasket
-
6420613681 Head Cylinder (Silver)Head Cylinder (Silver)
-
7420640308 Torx Screw M10 x 60Torx Screw M10 x 60
-
8420854540 Exhaust ValveExhaust Valve
-
9420250462 O-RingO-Ring
-
10420931670 Rubber GasketRubber Gasket
-
11420854555 Valve HousingValve Housing
-
12205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
13420931970 Sealing RingSealing Ring
-
14420854560 Exhaust Valve PistonExhaust Valve Piston
-
15420931950 Grooved RingGrooved Ring
-
16420939130 Compression SpringCompression Spring
-
17420911558 Valve CoverValve Cover
-
18420241222 Screw AdjustmentScrew Adjustment
-
19420838083 Spring ClipSpring Clip
-
20420931653 GasketGasket
-
21420979606 Exhaust ManifoldExhaust Manifold
-
22420931990 Exhaust GasketExhaust Gasket
-
23234101601 Lock Washer 10 mmLock Washer 10 mm
-
24420941483 Socket Head Screw M10 x 110Socket Head Screw M10 x 110
-
25205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
26420888134 Engine Gasket SetEngine Gasket Set
-
27420888139 Cylinder Gasket SetCylinder Gasket Set
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29413707000 Molykote 111Molykote 111
-
30420094706 Short Block Ass'y (947 DI)Short Block Ass'y (947 DI)
-
31234000600 Flat Washer 10 mmFlat Washer 10 mm
-
32273000170 Duct Support (MAG)Duct Support (MAG)
-
33273000169 Duct Support (PTO)Duct Support (PTO)
