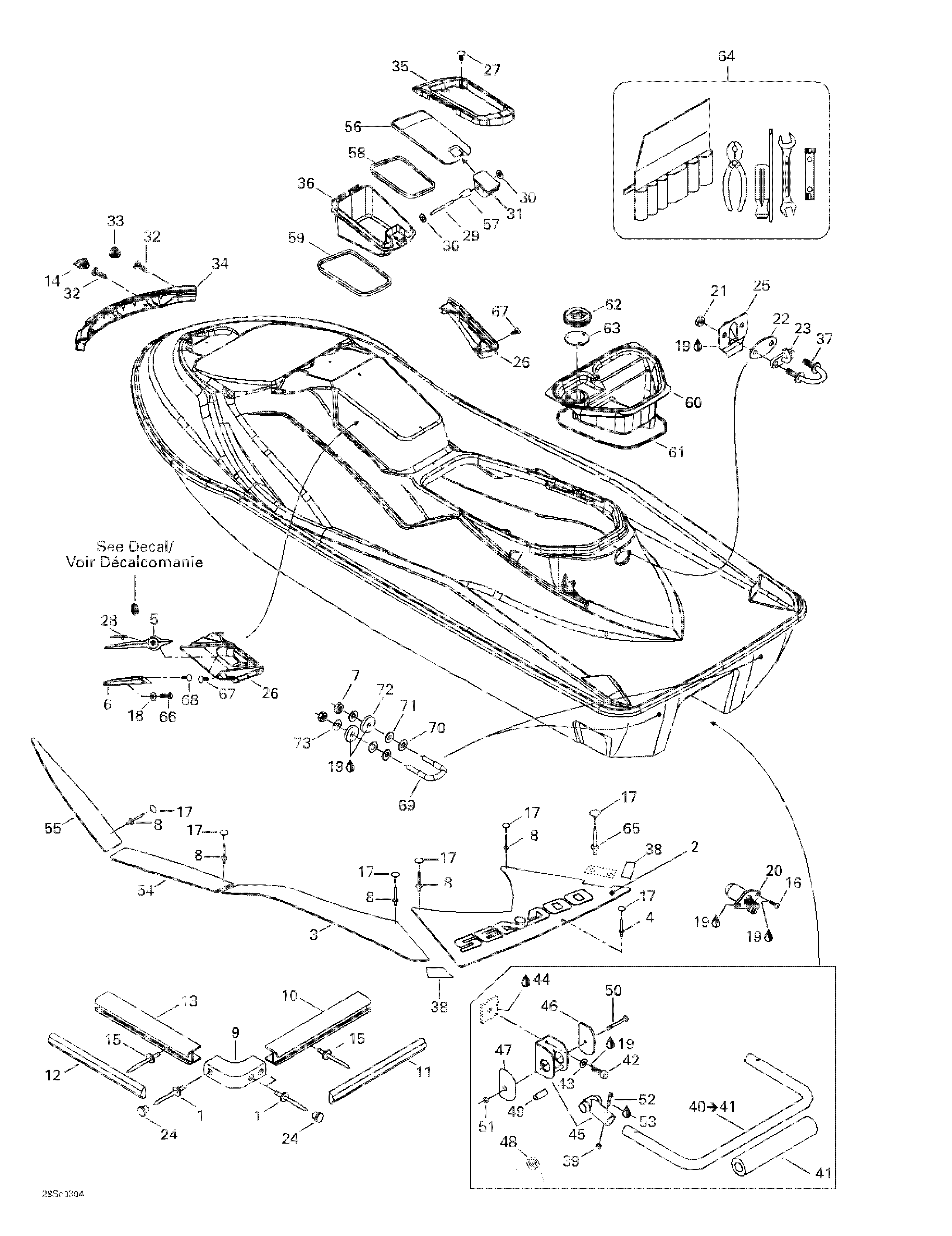

09- Body, Rear View для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
2291001905 Rear CarpetRear Carpet
-
3291001906 R.H. Rear CarpetR.H. Rear Carpet
-
3291001907 LH Rear CarpetLH Rear Carpet
-
4293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
5269500716 Finition plateFinition plate
-
6293450223 R.H. Grill InsertR.H. Grill Insert
-
6293450224 LH Grill InsertLH Grill Insert
-
7232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
8293150036 Pop Rivet 1/8''Pop Rivet 1/8''
-
9291001505 Bumper Corner (Black)Bumper Corner (Black)
-
10291001483 Rear Bumper (Black)Rear Bumper (Black)
-
11291001686 Rear Bumper TrimRear Bumper Trim
-
12291001685 Side Bumper TrimSide Bumper Trim
-
13291001609 Side BumperSide Bumper
-
14291001040 Bumper Plug (Black)Bumper Plug (Black)
-
15293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
16211000021 Phillips ScrewPhillips Screw
-
17293000014 Snap Cap (Black)Snap Cap (Black)
-
18234052600 Washer 5 mmWasher 5 mm
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000685 Drain PlugDrain Plug
-
21232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291001386 Finition Plate (Black)Finition Plate (Black)
-
23291001232 HookHook
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291001853 Retainer PlateRetainer Plate
-
26269500931 R.H. Grill Ass'yR.H. Grill Ass'y
-
26269500932 LH Grill Ass'yLH Grill Ass'y
-
27293730006 DartDart
-
28293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
29211400008 PinPin
-
30211100002 Push NutPush Nut
-
31269500553 LatchLatch
-
32211000037 Phillips Screw 10-14 x 7/8''Phillips Screw 10-14 x 7/8''
-
33291001519 Bumper Plug (Black)Bumper Plug (Black)
-
34291001035 Nose Bumper (Black)Nose Bumper (Black)
-
35269501031 Cover TrimCover Trim
-
36269500968 Gloves BoxGloves Box
-
37292000011 U-ClampU-Clamp
-
38291001758 R.H. Anti-SkidR.H. Anti-Skid
-
38291001759 LH Anti-SkidLH Anti-Skid
-
39232361600 Nut M6Nut M6
-
40292000778 Stair Tube. Includes 40 - 41.Stair Tube. Includes 40 - 41.
-
41292000781 Protector TubeProtector Tube
-
42250000076 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
43234061600 Flat Washer 6 mmFlat Washer 6 mm
-
44293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
45292000539 Support Ass'ySupport Ass'y
-
46292000540 R.H. Support CapR.H. Support Cap
-
47292000548 LH Support CapLH Support Cap
-
48292000541 Recall SpringRecall Spring
-
49292000542 Plastic TubePlastic Tube
-
50211000186 Phillips ScrewPhillips Screw
-
51212000005 Elastic Stop NutElastic Stop Nut
-
52205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
54291001908 R.H. Center CarpetR.H. Center Carpet
-
54291001909 LH Center CarpetLH Center Carpet
-
55291001910 R.H. Front CarpetR.H. Front Carpet
-
55291001911 LH Front CarpetLH Front Carpet
-
56269501136 Glove Box DoorGlove Box Door
-
57291000922 Latch SpringLatch Spring
-
58293250126 GasketGasket
-
59293250127 GasketGasket
-
60269501036 Rear TrayRear Tray
-
61293250008 GasketGasket
-
62269000788 CoverCover
-
63269000810 Cover SealCover Seal
-
64295500783 Tool KitTool Kit
-
65293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
66241141660 Screw K40 x 16Screw K40 x 16
-
67293730006 DartDart
-
68293730010 DartDart
-
69292000933 U-ClampU-Clamp
-
70293050001 WasherWasher
-
71234081100 Washer 8 mmWasher 8 mm
-
72293830037 Rubber WasherRubber Washer
-
73250200011 Washer 8 mmWasher 8 mm
