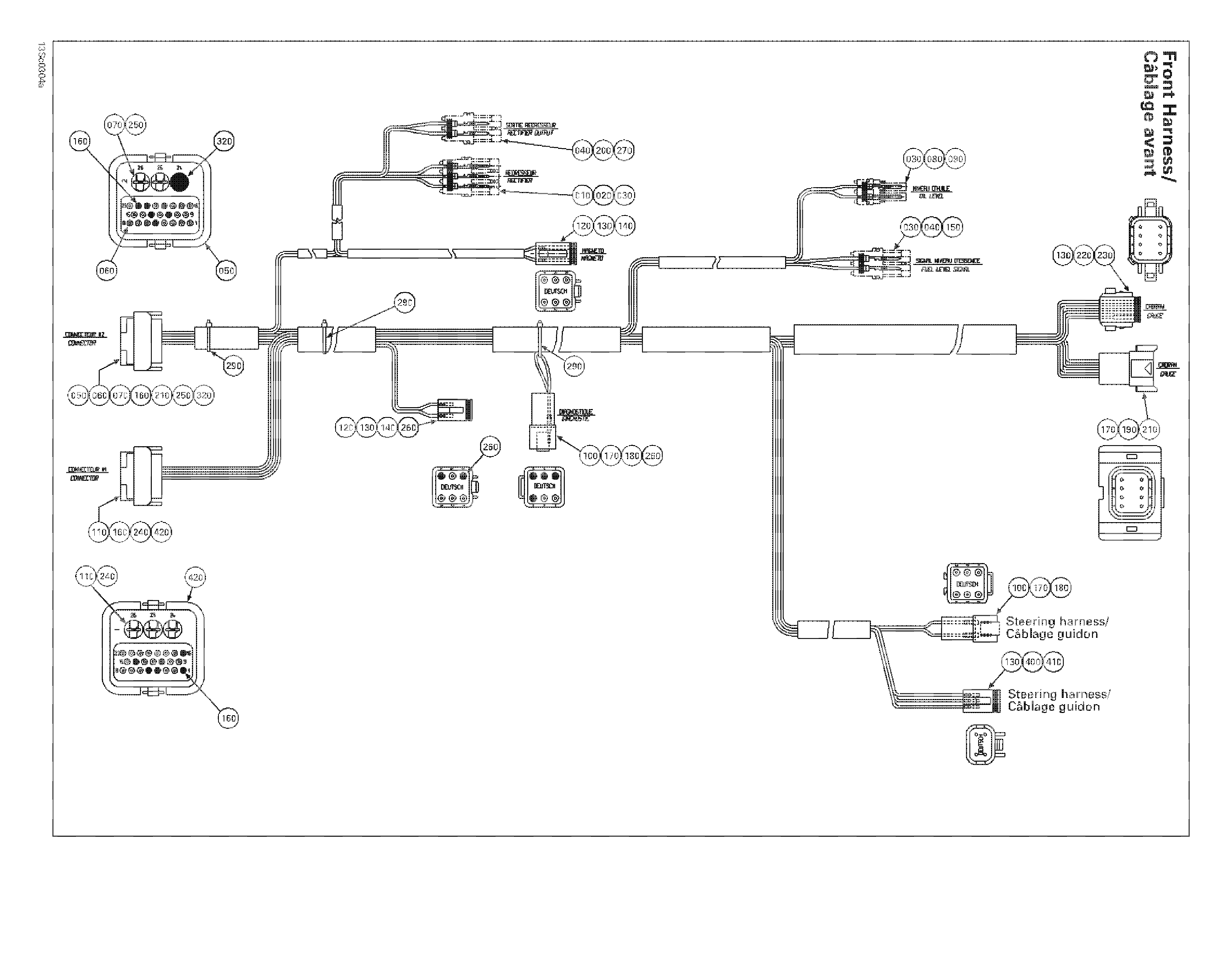

10- Front Harness для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
10278001809 Front Harness Ass'y. Includes 10 - 420.Front Harness Ass'y. Includes 10 - 420.
-
10278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
20409004300 Male TerminalMale Terminal
-
30278000218 Wire SealWire Seal
-
40278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
50278001062 Male Housing (26 Circuits). Includes 50 - 51.Male Housing (26 Circuits). Includes 50 - 51.
-
51278001307 Wire SealWire Seal
-
60278000995 Female TerminalFemale Terminal
-
70278001223 Wire SealWire Seal
-
80278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
90278000223 Female TerminalFemale Terminal
-
100270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
110278000994 Female TerminalFemale Terminal
-
120278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
130278000632 Female TerminalFemale Terminal
-
140278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
150278000222 Male TerminalMale Terminal
-
160293000070 Sealing CapSealing Cap
-
170278000631 Male TerminalMale Terminal
-
180278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
190278001742 Female Housing (8 Circuits)Female Housing (8 Circuits)
-
200278001576 Male TerminalMale Terminal
-
210515175276 Male Secondary Lock (8 Circuits)Male Secondary Lock (8 Circuits)
-
220278001743 Male Housing (8 Circuits)Male Housing (8 Circuits)
-
230278001744 Male Secondary Lock (8 Circuits)Male Secondary Lock (8 Circuits)
-
240278000996 Wire SealWire Seal
-
250409011700 Female TerminalFemale Terminal
-
260293000052 Sealing CapSealing Cap
-
270278001505 Wire SealWire Seal
-
290293750002 Tie Rap 130 mmTie Rap 130 mm
-
320409013900 Sealing CapSealing Cap
-
400278001739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
410278000738 Female Secondary Lock (3 Circuits)Female Secondary Lock (3 Circuits)
-
420278000993 Male Housing (26 Circuits)Male Housing (26 Circuits)
