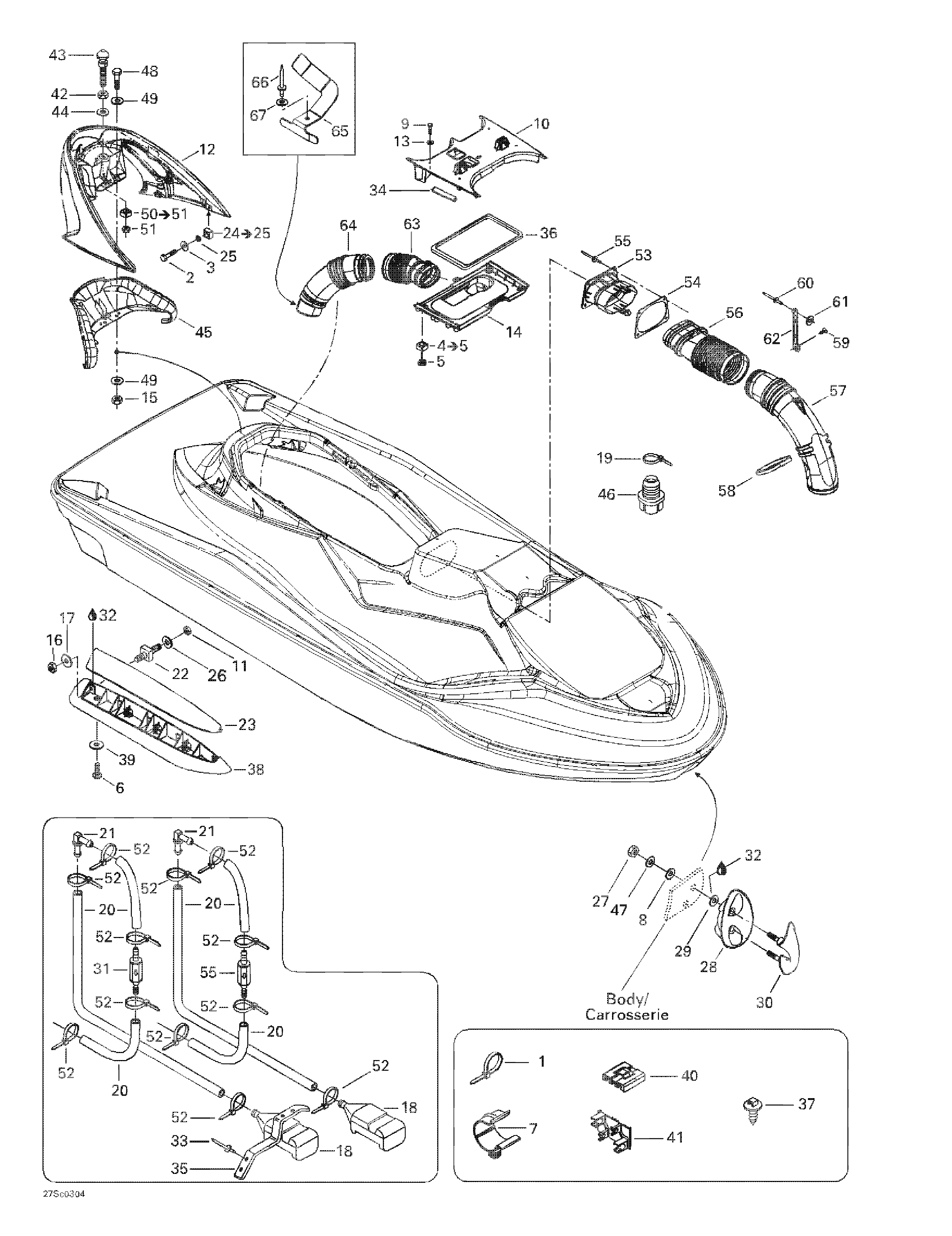

09- Body, Front View для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
2207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
3234062600 Flat Washer 6 mmFlat Washer 6 mm
-
4269501166 Nut Housing. Includes 4 - 5.Nut Housing. Includes 4 - 5.
-
5232561200 Elastic Stop Nut M6Elastic Stop Nut M6
-
6211000037 Phillips ScrewPhillips Screw
-
7275500527 RetainerRetainer
-
8293830037 Rubber WasherRubber Washer
-
9207167560 Hex. Screw M6 x 75Hex. Screw M6 x 75
-
10291001602 Upper BridgeUpper Bridge
-
11232061600 Nut M6Nut M6
-
12269000722 Grab HandleGrab Handle
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14291001599 Lower BridgeLower Bridge
-
15232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
16232061600 Hex. Nut M6Hex. Nut M6
-
17234062600 Flat Washer 6 mmFlat Washer 6 mm
-
18292000688 Screen BailerScreen Bailer
-
19414115200 Tie Rap 180 mmTie Rap 180 mm
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
22293450227 Threaded InsertThreaded Insert
-
23292000815 R.H. Sponson CoverR.H. Sponson Cover
-
292000817 LH Sponson CoverLH Sponson Cover
-
24269500725 Nut Housing. Includes 24 - 25.Nut Housing. Includes 24 - 25.
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
28292000453 Shell (Black)Shell (Black)
-
29234081600 Washer 8 mmWasher 8 mm
-
30292000708 Bow Eye (Black)Bow Eye (Black)
-
31276000093 Check ValveCheck Valve
-
32296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34293250008 GasketGasket
-
35292000398 LH Spring ClipLH Spring Clip
-
36293200090 Tray Seal (Meter)Tray Seal (Meter)
-
37293730018 Dart MountDart Mount
-
38292000818 R.H. SponsonR.H. Sponson
-
292000816 LH SponsonLH Sponson
-
39234051600 Flat Washer 5 mmFlat Washer 5 mm
-
40293750025 Tie Rap MountTie Rap Mount
-
41291001399 Tie ClampTie Clamp
-
42232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
43291000945 Seat StudSeat Stud
-
44234002600 Flat Washer 10 mmFlat Washer 10 mm
-
45269000749 Handle CoverHandle Cover
-
46293720042 GrommetGrommet
-
47250200011 Washer 8 mmWasher 8 mm
-
48207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
49234081600 Flat Washer 8 mmFlat Washer 8 mm
-
50271000598 Nut Housing. Includes 50 - 51.Nut Housing. Includes 50 - 51.
-
51232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
52293750001 Tie Rap 94 mmTie Rap 94 mm
-
53291001627 Front CollectorFront Collector
-
54293250128 GasketGasket
-
55293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
56291001746 Flexible HoseFlexible Hose
-
57291001689 Vent HoseVent Hose
-
58293200003 GasketGasket
-
59293730010 DartDart
-
60293150026 Pop Rivet 1/8''Pop Rivet 1/8''
-
61234032600 Flat Washer 3 mmFlat Washer 3 mm
-
62291001886 Hose SupportHose Support
-
63291001748 Flexible HoseFlexible Hose
-
64291001601 Vent HoseVent Hose
-
65291001780 Hose SupportHose Support
-
66293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
61211200033 Flat WasherFlat Washer
