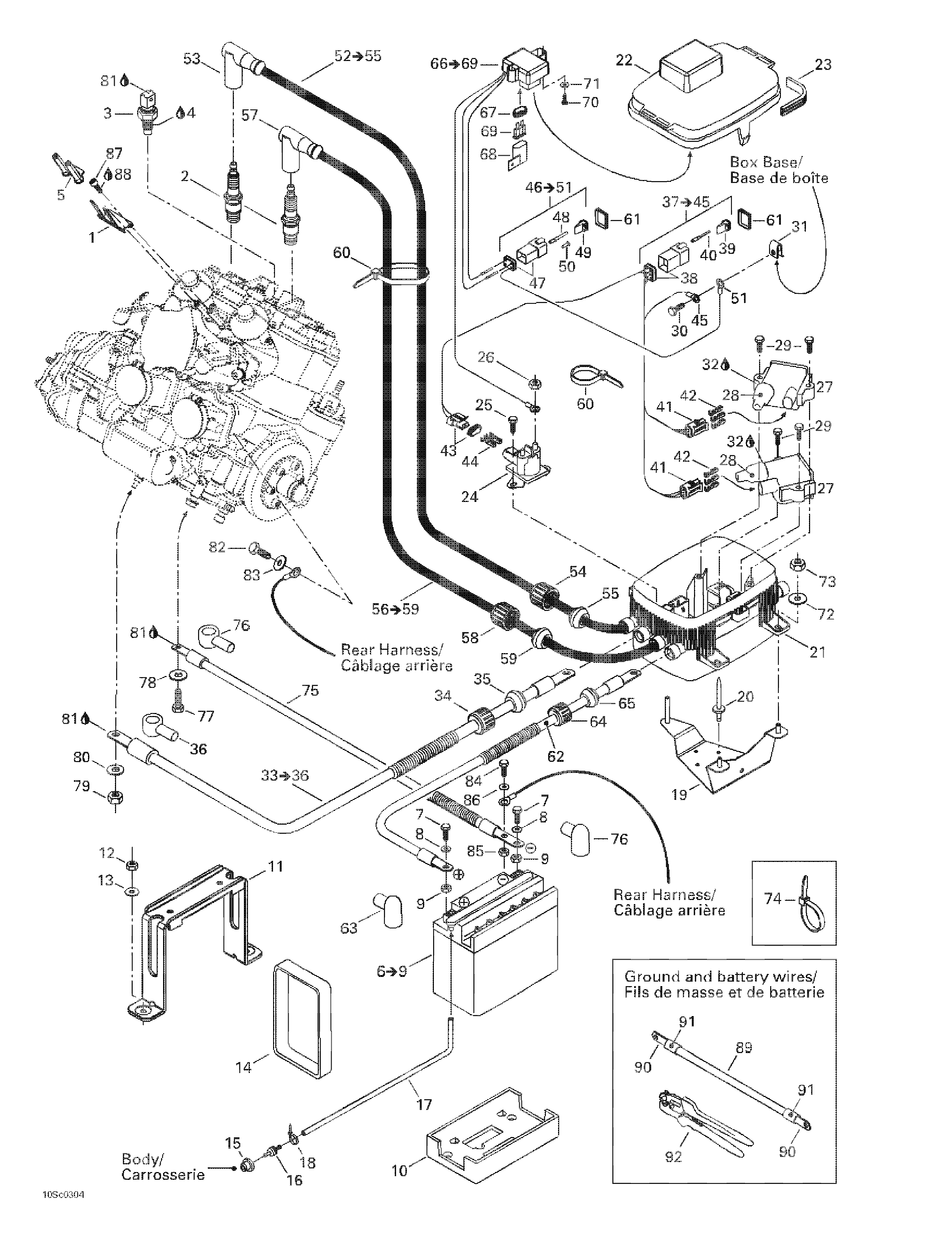

10- Rear Electrical Box для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1278001662 Ground PlateGround Plate
-
2278001650 Spark Plug (NGK ZFR-4F-11)Spark Plug (NGK ZFR-4F-11)
-
3278001016 Temperature SensorTemperature Sensor
-
4293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
5278001512 InsulatorInsulator
-
6278001756 Battery. Includes 6 - 9.Battery. Includes 6 - 9.
-
7211000045 Hex. ScrewHex. Screw
-
8211200018 Flat Washer 6 mmFlat Washer 6 mm
-
9211100022 Nut M6Nut M6
-
10278001746 Battery Lower PadBattery Lower Pad
-
11278001677 Battery SupportBattery Support
-
12232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
13234082600 Flat Washer 8 mmFlat Washer 8 mm
-
14278001765 StrapStrap
-
15293720029 GrommetGrommet
-
16275500499 Check ValveCheck Valve
-
17275500446 Vent Hose 6 mm (Meter)Vent Hose 6 mm (Meter)
-
18293750001 Tie Rap 94 mmTie Rap 94 mm
-
19278001487 Electric Box SupportElectric Box Support
-
20293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
21278001760 Electric box baseElectric box base
-
22278001785 Electric Box CoverElectric Box Cover
-
23278001173 GasketGasket
-
24278001802 Starter RelayStarter Relay
-
25210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
26232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
27278001451 Ignition CoilIgnition Coil
-
28278001470 Protector CapProtector Cap
-
29209463840 Hex. Tapping ScrewHex. Tapping Screw
-
30207361660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
31250100029 Panel Nut ''U'' Type M6Panel Nut ''U'' Type M6
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33278001457 Starter Cable (Red). Includes 33 - 36.Starter Cable (Red). Includes 33 - 36.
-
34278000100 Electrical Box CapElectrical Box Cap
-
35278000098 Grommet (Black)Grommet (Black)
-
36278000020 Protector CapProtector Cap
-
37278001458 Electric Box Harness. Includes 37 - 45.Electric Box Harness. Includes 37 - 45.
-
38270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
39278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
40278000631 Male TerminalMale Terminal
-
41278001467 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
42278001468 Female TerminalFemale Terminal
-
43278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
44278001114 Female TerminalFemale Terminal
-
45278001392 Open BarrelOpen Barrel
-
46278001811 Electric Box Harness. Includes 46 - 51.Electric Box Harness. Includes 46 - 51.
-
47278001477 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
48515175261 Male TerminalMale Terminal
-
49278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
50293000052 Sealing CapSealing Cap
-
51278001392 Open BarrelOpen Barrel
-
52278001454 Coil Cable (MAG). Includes 52 - 55.Coil Cable (MAG). Includes 52 - 55.
-
54278000100 Electric Wire CapElectric Wire Cap
-
55278000682 Grommet (Gray)Grommet (Gray)
-
56278001466 Coil Cable (PTO). Includes 56 - 59.Coil Cable (PTO). Includes 56 - 59.
-
58278000100 Electric Wire CapElectric Wire Cap
-
59278000682 Grommet (Gray)Grommet (Gray)
-
60293750002 Tie Rap 130 mmTie Rap 130 mm
-
61293200055 GasketGasket
-
62278001728 Battery Positive Cable, Red. Includes 63 to 65Battery Positive Cable, Red. Includes 63 to 65
-
63278000020 Battery Wire Cap (Red)Battery Wire Cap (Red)
-
64278000100 Electrical Box CapElectrical Box Cap
-
65278000098 Grommet (Black)Grommet (Black)
-
66278001784 Cut-off relay. Includes 66 - 69.Cut-off relay. Includes 66 - 69.
-
67278000805 CushionCushion
-
69410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
70243041660 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
71234051600 Flat Washer 5 mmFlat Washer 5 mm
-
72234062600 Flat Washer 6 mmFlat Washer 6 mm
-
73232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
74293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
75278001462 Ground Cable, BlackGround Cable, Black
-
76278001491 Wire Cap (Black)Wire Cap (Black)
-
77207302060 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
78234001600 Flat Washer 10 mmFlat Washer 10 mm
-
79232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
80234061600 Flat Washer 6 mmFlat Washer 6 mm
-
81293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
82207361260 Hex. Screw M6 x 12 (Scotch Grip)Hex. Screw M6 x 12 (Scotch Grip)
-
83234061600 Flat Washer 6 mmFlat Washer 6 mm
-
84207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
85232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
86234061600 Flat Washer 6 mmFlat Washer 6 mm
-
87205062560 Socket Screw M6 x 25Socket Screw M6 x 25
-
88293800060 Loctite 243, 10 mlLoctite 243, 10 ml
