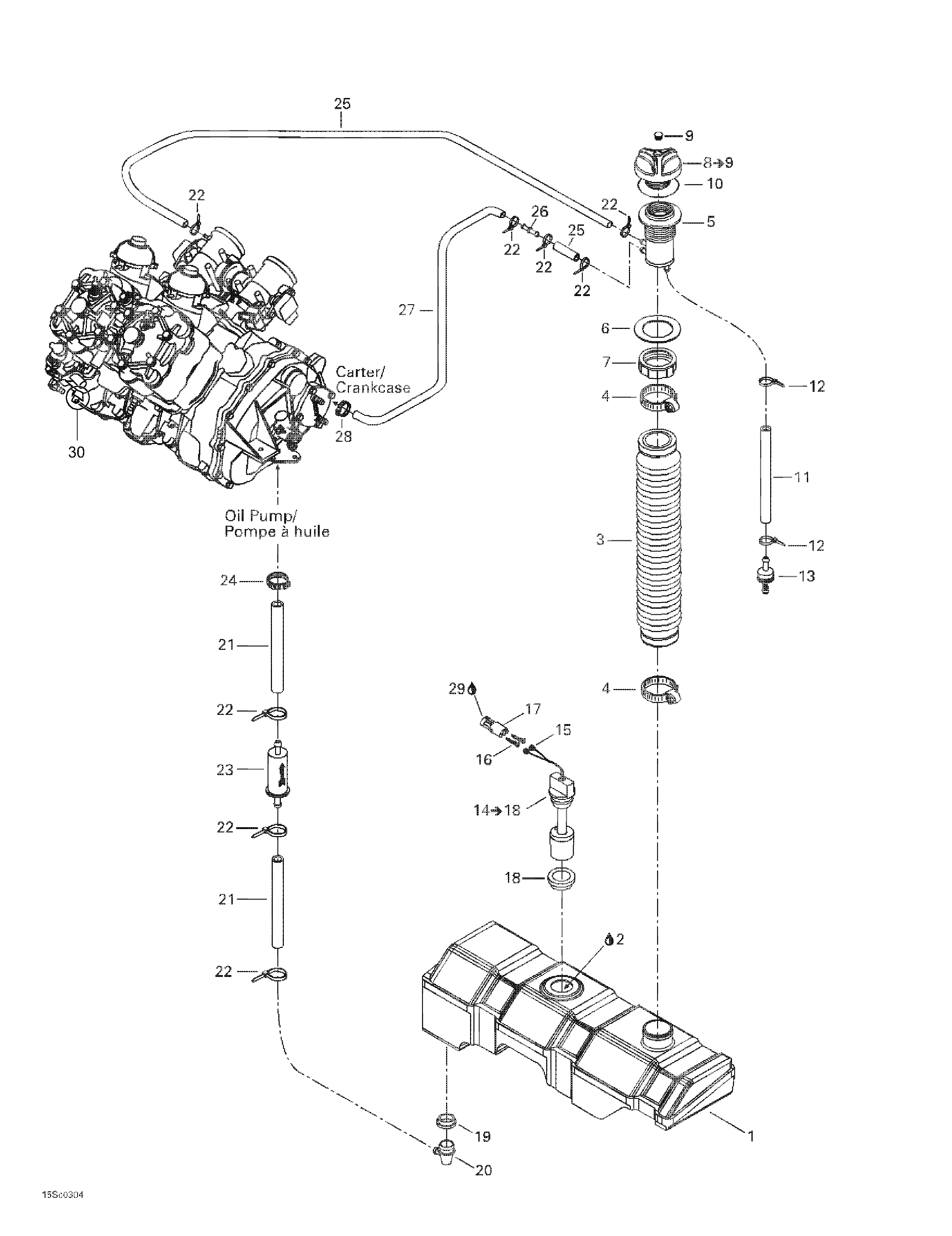

02- Oil Injection System для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1275000238 Oil TankOil Tank
-
2293600045 Synthetic Injection Oil. Formula XP-S II (12 GTX DI 6119..Synthetic Injection Oil. Formula XP-S II (12 GTX DI 6119..
-
293600046 Synthetic Injection Oil. Formula XP-S II (3 GTX DI 6119..Synthetic Injection Oil. Formula XP-S II (3 GTX DI 6119..
-
293600047 Synthetic Injection Oil. Formula XP-S II GTX DI 6119..Synthetic Injection Oil. Formula XP-S II GTX DI 6119..
-
3275000185 Filler HoseFiller Hose
-
4293650035 Tridon Gear ClampTridon Gear Clamp
-
5275000234 Filler NeckFiller Neck
-
6293250029 GasketGasket
-
7211100012 Filler Neck NutFiller Neck Nut
-
8275000221 Oil Cap. Includes 8 - 9.Oil Cap. Includes 8 - 9.
-
9293000076 Snap CapSnap Cap
-
10293250075 GasketGasket
-
11270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
12293750001 Tie Rap 94 mmTie Rap 94 mm
-
13275500398 Check ValveCheck Valve
-
14278001515 Oil Level Sensor Ass'y. Includes 14 - 18.Oil Level Sensor Ass'y. Includes 14 - 18.
-
15278000218 Wire Seal (Packard)Wire Seal (Packard)
-
16278000222 Male Terminal (Packard)Male Terminal (Packard)
-
17278000217 Female Housing Tab (2 Circuits)Female Housing Tab (2 Circuits)
-
18293720008 GrommetGrommet
-
19293720008 GrommetGrommet
-
20293710070 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
21275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
22293750001 Tie Rap 94 mmTie Rap 94 mm
-
23275000051 Oil FilterOil Filter
-
24293650042 Oetiker ClampOetiker Clamp
-
25270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
26275500444 Straight FittingStraight Fitting
-
27270000469 Hose 3 mm (Meter)Hose 3 mm (Meter)
-
28293650105 Oetiker ClampOetiker Clamp
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30420924652 Elbow Fitting 90 DegElbow Fitting 90 Deg
