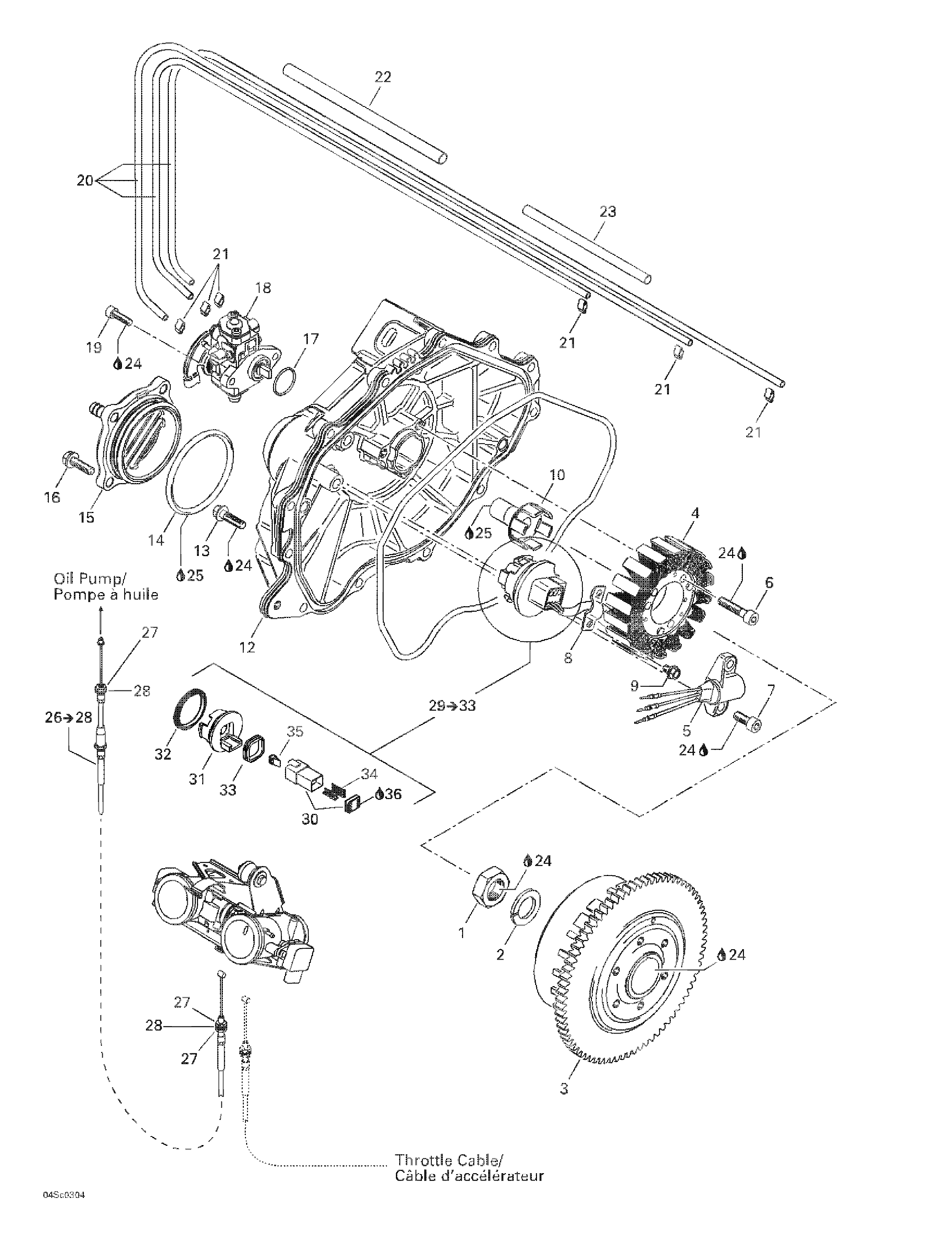

03- Magneto, Oil Pump для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1420942220 Hex. Nut M18Hex. Nut M18
-
2420945757 Lock Washer 18 mmLock Washer 18 mm
-
3420966822 Flywheel HubFlywheel Hub
-
4420888652 Stator Plate Ass'yStator Plate Ass'y
-
5420966760 Sensor Ass'ySensor Ass'y
-
6420640051 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
7420940566 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8420853080 Retainer PlateRetainer Plate
-
9207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
10420837395 Oil Pump ShaftOil Pump Shaft
-
11420931690 O-RingO-Ring
-
12420811421 Ignition CoverIgnition Cover
-
13420240033 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
14420850390 O-RingO-Ring
-
15420811225 Waterchannel CoverWaterchannel Cover
-
16420941253 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
17293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
18420888540 Oil Pump Ass'yOil Pump Ass'y
-
19205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
20414413800 Hose (Foot)Hose (Foot)
-
21293650105 ClampClamp
-
22420960205 Protection HoseProtection Hose
-
23420260465 Protection HoseProtection Hose
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413707000 Molykote 111Molykote 111
-
26270000546 Injection Cable. Includes 26 - 28.Injection Cable. Includes 26 - 28.
-
27232160600 Hex. Nut M6Hex. Nut M6
-
28234061600 Flat Washer 6 mmFlat Washer 6 mm
-
29707000031 Adaptor Ass'y. Includes 29 - 33.Adaptor Ass'y. Includes 29 - 33.
-
30270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
31270000138 AdaptorAdaptor
-
32293300033 GasketGasket
-
33293200055 GasketGasket
-
34278000631 Male TerminalMale Terminal
-
35278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37420888134 Engine Gasket Set (Not Shown). GTX DI 6119. .Engine Gasket Set (Not Shown). GTX DI 6119. .
-
38420888139 Cylinder Gasket Set (Not Shown). GTX DI 6119. .Cylinder Gasket Set (Not Shown). GTX DI 6119. .
