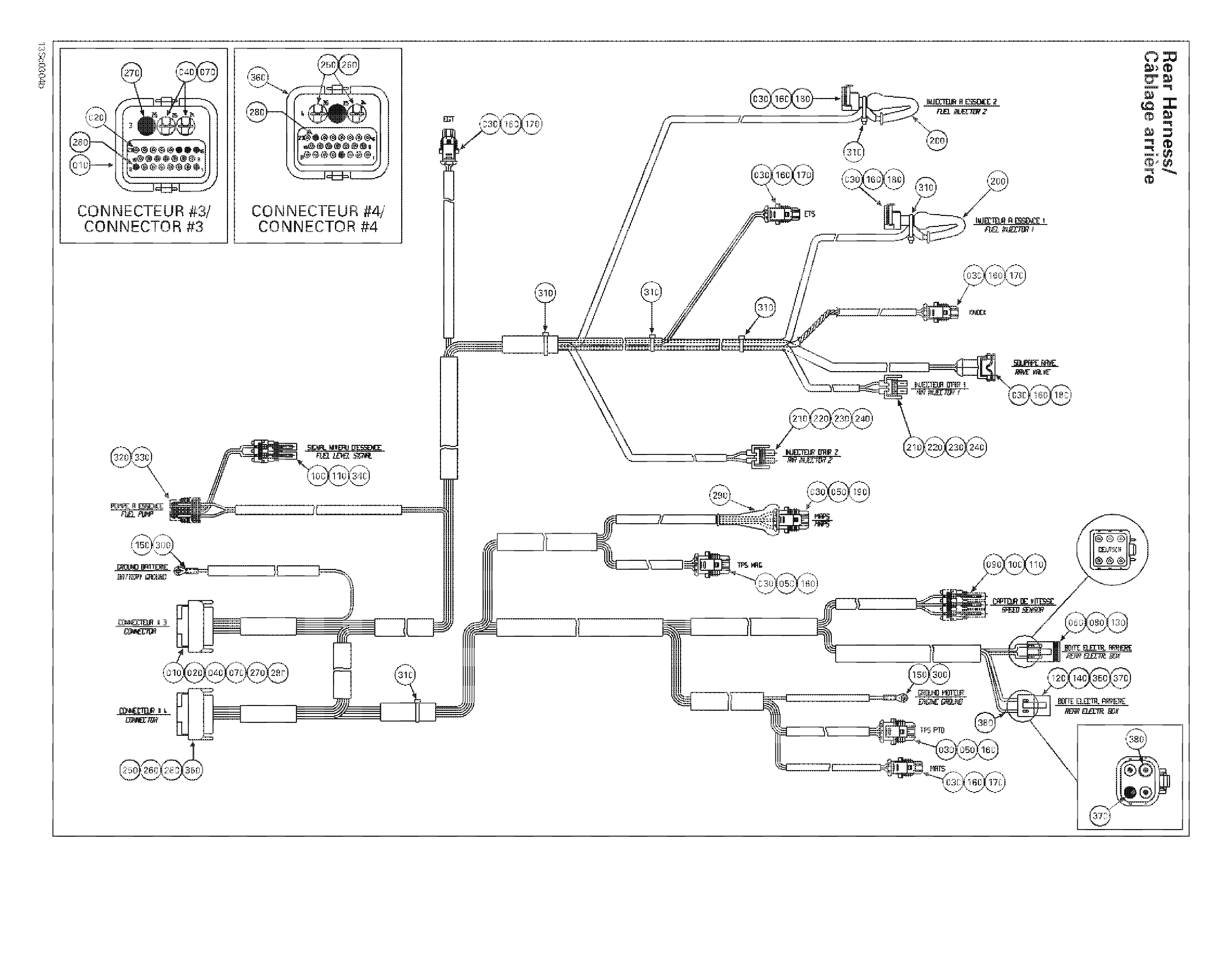

10- Rear Harness для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
10278001810 Rear Harness Ass'y. Includes 10 - 380.Rear Harness Ass'y. Includes 10 - 380.
-
10278001063 Male Housing (26 Circuits)Male Housing (26 Circuits)
-
20278000995 Female TerminalFemale Terminal
-
30278000999 Wire SealWire Seal
-
40409011700 Female TerminalFemale Terminal
-
50278000997 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
60278000632 Female TerminalFemale Terminal
-
70278001223 Wire SealWire Seal
-
80278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
90278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
100278000223 Female TerminalFemale Terminal
-
110278000218 Wire SealWire Seal
-
120278001473 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
130278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
140515175260 Female TerminalFemale Terminal
-
150512059668 Heat Shrink TubingHeat Shrink Tubing
-
160278000998 Female TerminalFemale Terminal
-
170278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
180278001003 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
190278001210 Female TerminalFemale Terminal
-
200278001484 Rubber CapRubber Cap
-
210278001480 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
220278001481 Female TerminalFemale Terminal
-
230278001482 Wire SealWire Seal
-
240278001483 Male Secondary LockMale Secondary Lock
-
250278000994 Female TerminalFemale Terminal
-
260278000996 Wire SealWire Seal
-
270409013900 Sealing PlugSealing Plug
-
280293000070 Sealing PlugSealing Plug
-
300278001392 Open BarrelOpen Barrel
-
310293750002 Tie Rap 130 mmTie Rap 130 mm
-
320278001114 Female TerminalFemale Terminal
-
330278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
340278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
350278001474 Male Secondary Lock (4 Circuits)Male Secondary Lock (4 Circuits)
-
360278001211 Male Housing (26 Circuits)Male Housing (26 Circuits)
-
370293000052 Sealing PlugSealing Plug
