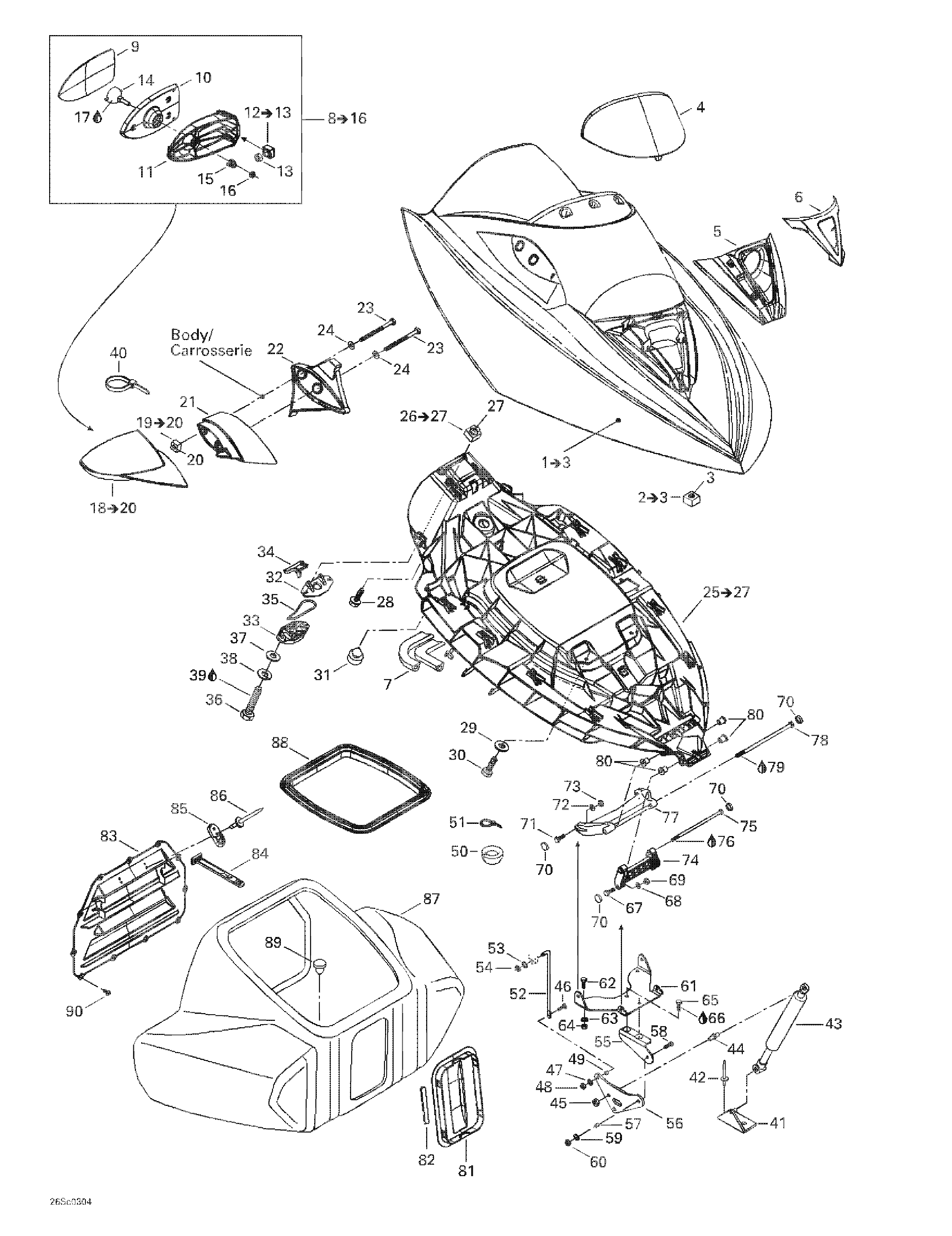

09- Front Storage Compartment для BRP GTX DI, 6118/6119 - 2003
-
№АртикулНазвание
-
1269501047 Upper Storage Cover. Includes 1 - 3. (Red)Upper Storage Cover. Includes 1 - 3. (Red)
-
2269500252 Nut Housing Ass'y. Includes 2 - 3.Nut Housing Ass'y. Includes 2 - 3.
-
3232061600 Hex. Nut M6Hex. Nut M6
-
4269500943 DeflectorDeflector
-
5269500994 Lower GrillLower Grill
-
6269500942 Upper Grill (Chrome)Upper Grill (Chrome)
-
7293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
8269500685 R.H. Mirror Ass'y. Includes 8 - 16.R.H. Mirror Ass'y. Includes 8 - 16.
-
269500688 L.H. Mirror Ass'yL.H. Mirror Ass'y
-
9269500687 R.H. MirrorR.H. Mirror
-
269500788 L.H. MirrorL.H. Mirror
-
10269500697 Mirror FrameMirror Frame
-
11269500807 Housing SupportHousing Support
-
12269500813 Nut Housing Ass'y. Includes 12 - 13.Nut Housing Ass'y. Includes 12 - 13.
-
13232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
14269500079 Ball JointBall Joint
-
15269500453 SpringSpring
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
18269501042 Mirror Shell (Red). Includes 18 - 20.Mirror Shell (Red). Includes 18 - 20.
-
19269500813 Nut Housing Ass'y. Includes 19 - 20.Nut Housing Ass'y. Includes 19 - 20.
-
20232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
21269501044 R.H. Mirror Support (Red)R.H. Mirror Support (Red)
-
269501045 L.H. Mirror Support (Red)L.H. Mirror Support (Red)
-
22269500950 R.H. SpacerR.H. Spacer
-
269500951 L.H. SpacerL.H. Spacer
-
23230082060 Hex. Screw M8 x 120Hex. Screw M8 x 120
-
24234082600 Flat Washer 8 mmFlat Washer 8 mm
-
25269500952 Lower Storage Cover. Includes 25 - 27.Lower Storage Cover. Includes 25 - 27.
-
26269500252 Nut Housing Ass'y. Includes 26 - 27.Nut Housing Ass'y. Includes 26 - 27.
-
27232061600 Hex. Nut M6Hex. Nut M6
-
28241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
31293830005 Rubber PlugRubber Plug
-
32269700076 Latch CoverLatch Cover
-
33269000015 Latch BaseLatch Base
-
34269700077 Latch LeverLatch Lever
-
35269700017 Latch SpringLatch Spring
-
36207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
37234061600 Flat Washer 6 mmFlat Washer 6 mm
-
38234161601 Lock Washer 6 mmLock Washer 6 mm
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40293750008 Tie Rap 350 mm. GTX DI 6119.Tie Rap 350 mm. GTX DI 6119.
-
41291001618 Shock SupportShock Support
-
42293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
43269500937 Gaz ShockGaz Shock
-
44250300016 Stud BallStud Ball
-
45232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
46207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
47234041600 Flat Washer 4 mmFlat Washer 4 mm
-
48232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
49269501130 SpacerSpacer
-
50293720063 Cable GrommetCable Grommet
-
51414115200 Tie Rap 180 mmTie Rap 180 mm
-
52269500842 RodRod
-
53234061600 Flat Washer 6 mmFlat Washer 6 mm
-
54293370005 CirclipCirclip
-
55269500846 Lever SupportLever Support
-
56269501132 LeverLever
-
57269501172 SpacerSpacer
-
58207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
59234062600 Flat Washer 6 mmFlat Washer 6 mm
-
60232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
61269500934 Pivot SupportPivot Support
-
62207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
63234062600 Flat Washer 6 mmFlat Washer 6 mm
-
64232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
65207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
66293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
67211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
68234061600 Flat Washer 6 mmFlat Washer 6 mm
-
69232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
70414436900 Snap CapSnap Cap
-
71211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
72234061600 Flat Washer 6 mmFlat Washer 6 mm
-
73232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
74269500935 Front ArmFront Arm
-
75230006060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77269501012 Rear ArmRear Arm
-
78230065060 Hex. Screw M6 x 150Hex. Screw M6 x 150
-
79293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
80269500706 SleeveSleeve
-
81291001744 Front DoorFront Door
-
82293250078 Gasket (Meter)Gasket (Meter)
-
83291001743 Rear DoorRear Door
-
84269500408 StrapStrap
-
85269500521 HookHook
-
86293150027 Rivet AvdelRivet Avdel
-
87269500955 Front TrayFront Tray
-
88269501234 Cover TrimCover Trim
-
89291000279 PlugPlug
-
90293150089 Plastic RivetPlastic Rivet
