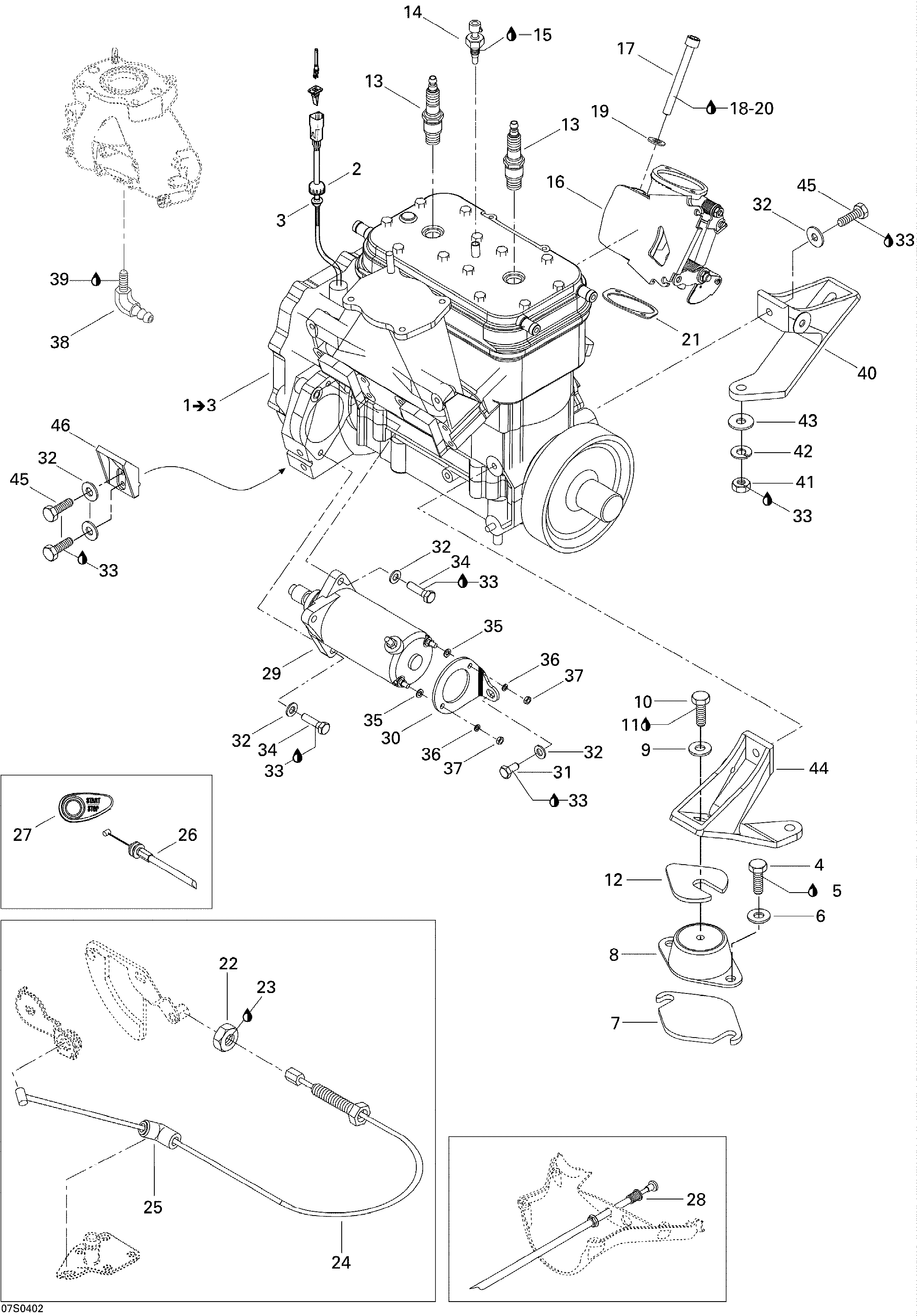

01- Engine для BRP GTI LE - 2004
-
№АртикулНазвание
-
1270000595 Engine 717. Includes 1 to 3Engine 717. Includes 1 to 3
-
2278000100 CapCap
-
3293720034 GrommetGrommet
-
4207183060 Hex Screw M8 X 30Hex Screw M8 X 30
-
5293800060 Loctite 243Loctite 243
-
6234081600 Flat Washer M8Flat Washer M8
-
7270000006 Shim 0.40 mmShim 0.40 mm
-
270000007 Shim 1.30 mmShim 1.30 mm
-
8270000425 Rubber MountRubber Mount
-
9234082600 Flat Washer M8Flat Washer M8
-
10207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
11293800060 Loctite 243Loctite 243
-
12270000025 Shim 1.30 mmShim 1.30 mm
-
270000024 Shim 0.40 mmShim 0.40 mm
-
13278000609 Spark Plug NGK Br8-EsSpark Plug NGK Br8-Es
-
14278000965 Temperature SensorTemperature Sensor
-
15293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
16270500447 Carburetor Bn40I-38-61 (California)Carburetor Bn40I-38-61 (California)
-
17205088060 Socket Head Screw M8 X 80Socket Head Screw M8 X 80
-
18293800060 Loctite 243Loctite 243
-
19234081600 Flat Washer M8Flat Washer M8
-
20293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
21204250035 GasketGasket
-
22232160600 Hex Jam Nut M6Hex Jam Nut M6
-
23293800060 Loctite 243Loctite 243
-
24270000540 Injection CableInjection Cable
-
25270000187 Cable GuideCable Guide
-
26277001064 Throttle CableThrottle Cable
-
27277000279 Lock Tab. Canada / United StatesLock Tab. Canada / United States
-
28270000545 Choke CableChoke Cable
-
29278001935 Starter Ass'Y (Black)Starter Ass'Y (Black)
-
30270000080 Starter SupportStarter Support
-
31207181660 Hex Screw M8 X 16Hex Screw M8 X 16
-
32234081600 Flat Washer M8Flat Washer M8
-
33293800060 Loctite 243Loctite 243
-
34207183060 Hex Screw M8 X 30Hex Screw M8 X 30
-
35234051600 Flat Washer M5Flat Washer M5
-
36234151601 Lock Washer 5 mmLock Washer 5 mm
-
37232051600 Hex Nut M5Hex Nut M5
-
38293700016 Elbow Fitting 90°Elbow Fitting 90°
-
39293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
40270000596 RH Engine Support (Black)RH Engine Support (Black)
-
41232001600 Hex Nut M10Hex Nut M10
-
42234101601 Lock Washer M10Lock Washer M10
-
43234001600 Flat Washer M10Flat Washer M10
-
44270000597 LH Engine Support (Black)LH Engine Support (Black)
-
45207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
46270000598 Engine Support (Black)Engine Support (Black)
