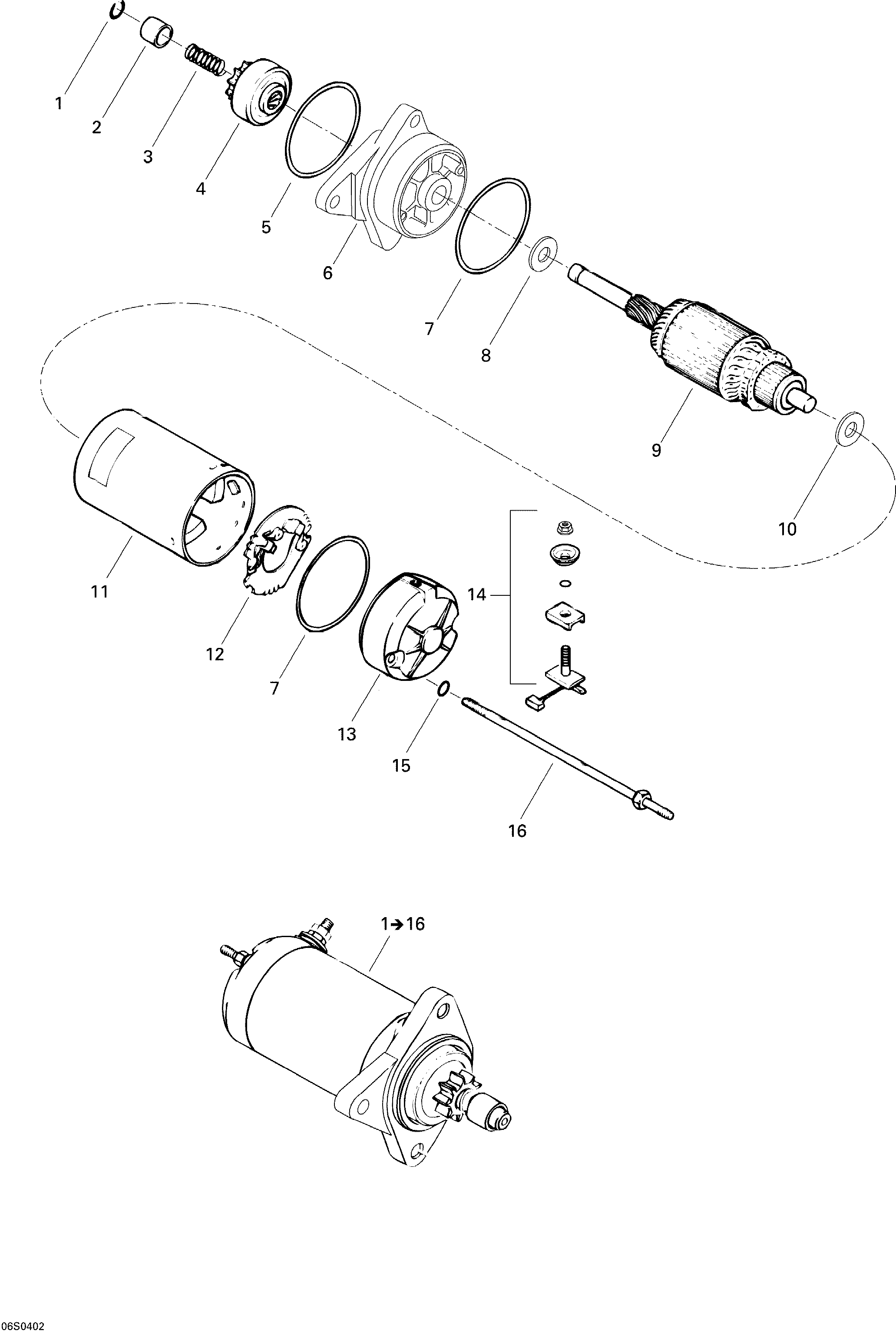

04- Electric Starter для BRP GTI LE - 2004
-
№АртикулНазвание
-
1278001935 Starter Ass'Y (Black). Includes 1 to 16Starter Ass'Y (Black). Includes 1 to 16
-
1410207700 CirclipCirclip
-
2278000254 Stopper BushingStopper Bushing
-
3278000168 SpringSpring
-
4295500089 Starter Clutch Ass'YStarter Clutch Ass'Y
-
5278000694 O-RingO-Ring
-
6278000697 Housing Ass'YHousing Ass'Y
-
7278000695 O-RingO-Ring
-
8278000054 Flat WasherFlat Washer
-
9278000699 ArmatureArmature
-
10410204500 Flat WasherFlat Washer
-
11278000057 Yoke Ass'YYoke Ass'Y
-
12278001296 Brush HolderBrush Holder
-
13278000251 Commutator End FrameCommutator End Frame
-
14278001297 Brush Starter KitBrush Starter Kit
-
15278000060 O-RingO-Ring
-
16278000170 Retainer StudRetainer Stud
