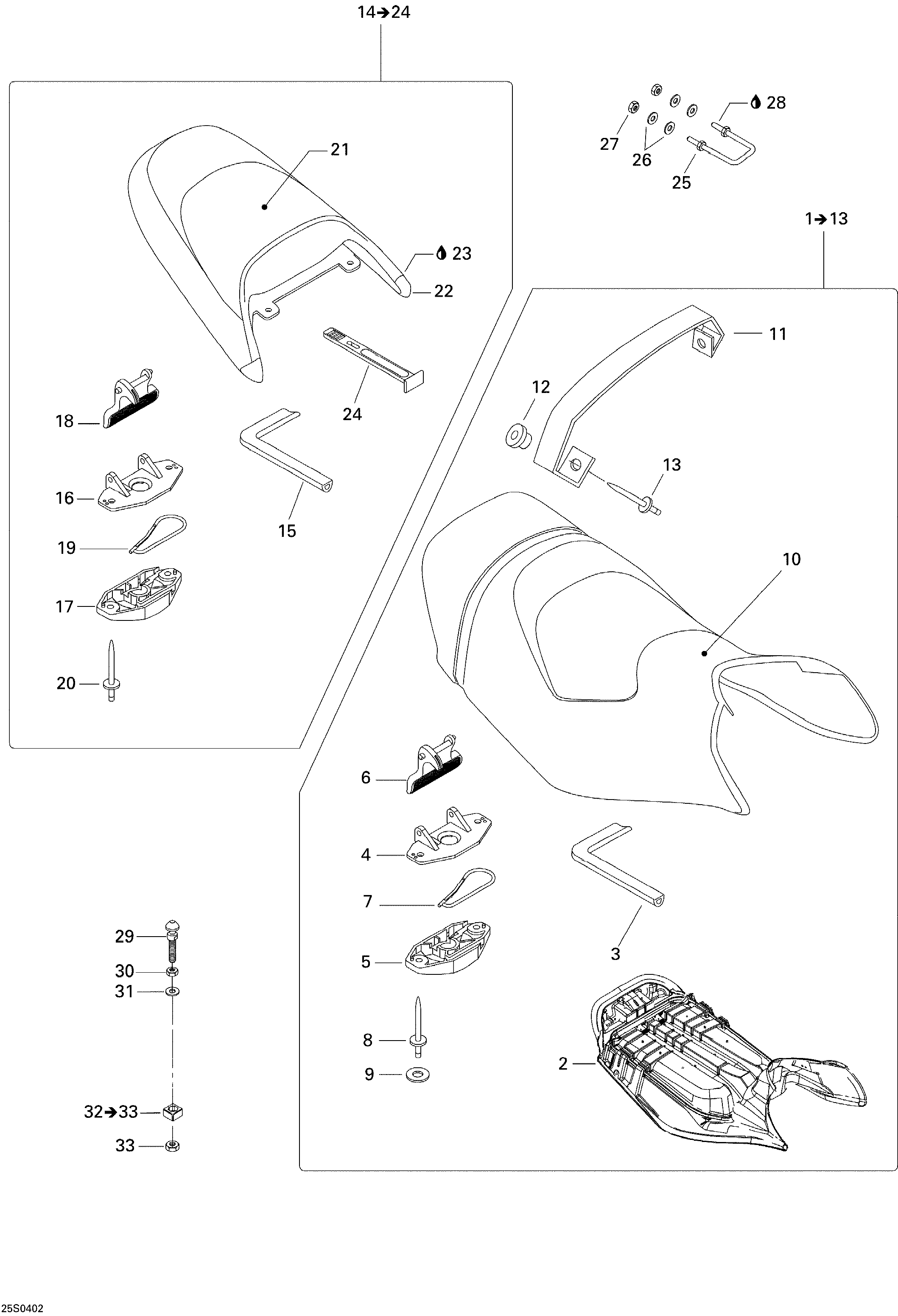

09- Seat для BRP GTI LE - 2004

№

Артикул

Название
1

269001042 Seat Ass'Y (Blue Jay). Includes 1 to 13. STD

Seat Ass'Y (Blue Jay). Includes 1 to 13. STD

91 540 ₽
1

269001105 Seat Ass'Y (Sonoran Sand). LE

Seat Ass'Y (Sonoran Sand). LE

79 240 ₽
2

269000829 Seat Base

Seat Base

15 600 ₽
3

293200062 Seal

Seal

0 ₽
4

269700076 Latch Cover

Latch Cover

1 010 ₽
5

269000015 Latch Base

Latch Base

0 ₽
6

269700077 Latch Lever

Latch Lever

0 ₽
7

269700017 Latch Spring

Latch Spring

3 090 ₽
8

293150074 Pop Rivet 1/4''

Pop Rivet 1/4''

380 ₽
9

234061600 Flat Washer M6

Flat Washer M6

120 ₽
10

269001044 Cover & Foam. STD

Cover & Foam. STD

0 ₽
10

269001106 Cover & Foam (Sonoran Sand). LE

Cover & Foam (Sonoran Sand). LE

76 710 ₽
11

269001045 Seat Strap (Blue Jay). STD

Seat Strap (Blue Jay). STD

4 580 ₽
11

269001107 Seat Strap (Sonoran Sand). LE

Seat Strap (Sonoran Sand). LE

6 510 ₽
12

293720067 Grommet

Grommet

3 890 ₽
13

293150078 Pop Rivet 1/4''

Pop Rivet 1/4''

80 ₽
14

269001046 Rear Seat Ass'Y (Blue Jay). Includes 14 to 24. STD

Rear Seat Ass'Y (Blue Jay). Includes 14 to 24. STD

36 690 ₽
14

269001108 Rear Seat Ass'Y (Sonoran Sand). LE

Rear Seat Ass'Y (Sonoran Sand). LE

45 660 ₽
15

293200062 Seal

Seal

0 ₽
16

269700076 Latch Cover

Latch Cover

1 010 ₽
17

269000015 Latch Base

Latch Base

0 ₽
18

269700077 Latch Lever

Latch Lever

0 ₽
19

269700017 Latch Spring

Latch Spring

3 090 ₽
20

293150074 Pop Rivet 1/4''

Pop Rivet 1/4''

380 ₽
21

269001047 Rear Cover & Foam. STD

Rear Cover & Foam. STD

0 ₽
21

269001109 Rear Cover & Foam (Sonoran Sand). LE

Rear Cover & Foam (Sonoran Sand). LE

0 ₽
22

269001048 RH. Seat Corner (Blue Jay). STD

RH. Seat Corner (Blue Jay). STD

970 ₽
22

269001049 LH. Rear Seat Corner (Blue Jay). STD

LH. Rear Seat Corner (Blue Jay). STD

970 ₽
22

269000837 RH. Seat Corner (Sonoran Sand). LE

RH. Seat Corner (Sonoran Sand). LE

1 220 ₽
22

269000838 LH. Seat Corner (Sonoran Sand). LE

LH. Seat Corner (Sonoran Sand). LE

1 220 ₽
23

413705800 Loctite 414, 29.5 Cc

Loctite 414, 29.5 Cc

3 320 ₽
24

269500408 Strap

Strap

5 850 ₽
25

291001527 Seat Bow-Eye

Seat Bow-Eye

1 470 ₽
26

234062600 Flat Washer M6

Flat Washer M6

80 ₽
27

232561600 Hex Elastic Nut M6

Hex Elastic Nut M6

390 ₽
28

293800032 Loctite Wheel Mount

Loctite Wheel Mount

0 ₽
29

291000691 Latch Stud

Latch Stud

3 710 ₽
30

232100600 Hex Nut M10

Hex Nut M10

210 ₽
31

234002600 Flat Washer M10

Flat Washer M10

210 ₽
32

271000598 Nut Housing Ass'Y. Includes Items 32 to 33

Nut Housing Ass'Y. Includes Items 32 to 33

1 400 ₽
33

232501600 Elastic Stop Nut M10

Elastic Stop Nut M10

330 ₽
