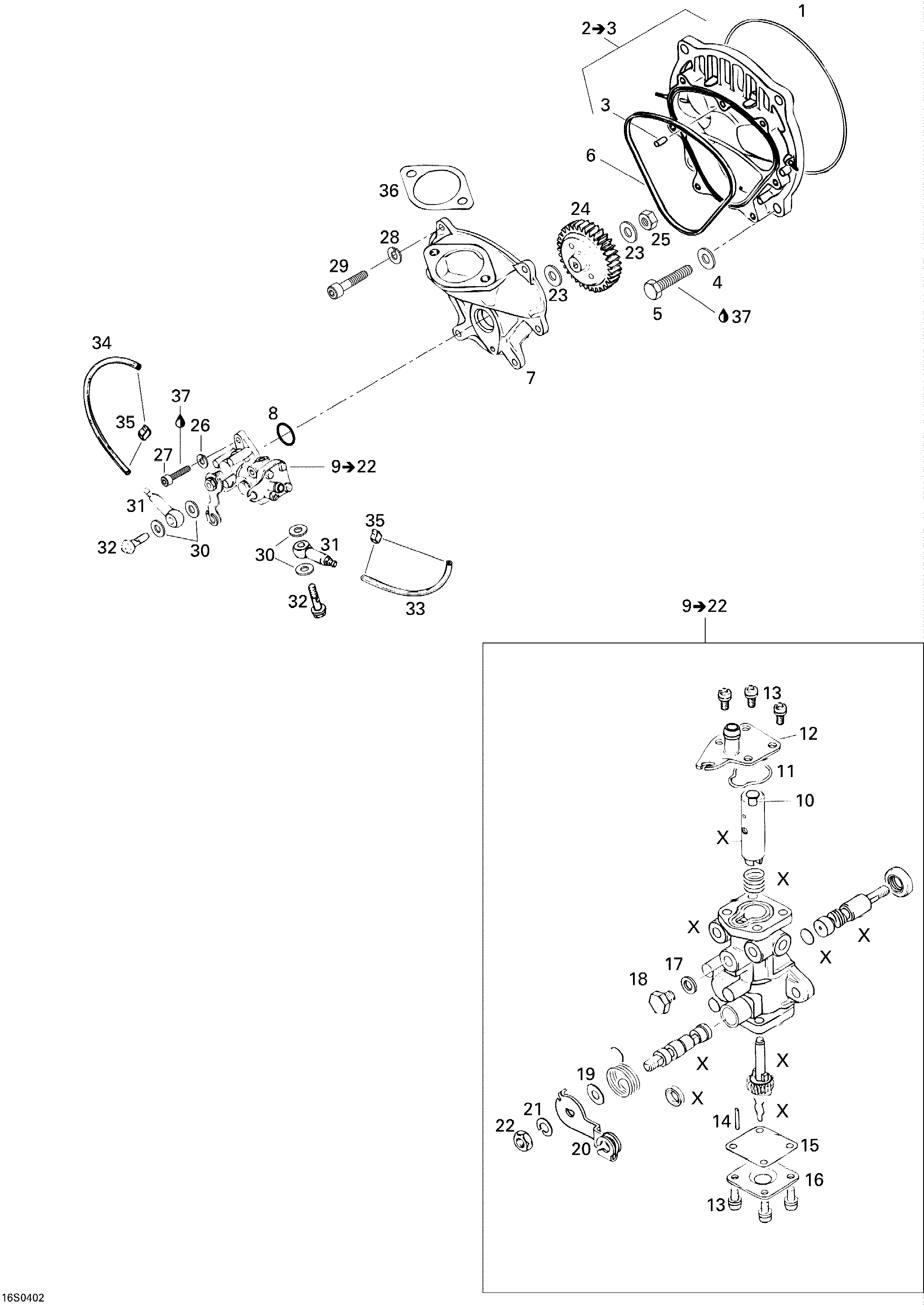

02- Oil Pump для BRP GTI LE - 2004
-
№АртикулНазвание
-
1293300023 O-RingO-Ring
-
2420811253 Rotary Cover (Black). Includes 2 to 3Rotary Cover (Black). Includes 2 to 3
-
3420929650 Drive PinDrive Pin
-
4420250313 Washer 8.4 mmWasher 8.4 mm
-
5207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
6420850160 Rubber RingRubber Ring
-
7420811194 Oil Pump Flange (Black)Oil Pump Flange (Black)
-
8293300018 O-RingO-Ring
-
9420996726 Oil Pump Assy.. Includes 9 to 22Oil Pump Assy.. Includes 9 to 22
-
10420256085 RetainerRetainer
-
11293300019 O-RingO-Ring
-
12420956340 Pump Upper PlatePump Upper Plate
-
13420241975 Screw M4 X 8 With Lock WasherScrew M4 X 8 With Lock Washer
-
14420929900 Stop PinStop Pin
-
15420850200 GasketGasket
-
16420956031 Pump Lower PlatePump Lower Plate
-
17420227505 GasketGasket
-
18420841583 Hex Screw M6 X 8Hex Screw M6 X 8
-
19420227665 Washer 6.2 mmWasher 6.2 mm
-
20420848162 Lever ControlLever Control
-
21420845381 Lock Washer 6 mmLock Washer 6 mm
-
22420242623 Hex Nut M6Hex Nut M6
-
23420927945 Flat Washer 6.2 mmFlat Washer 6.2 mm
-
24420935945 Oil Pump Gear 41 TeethOil Pump Gear 41 Teeth
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26420845389 Lock WasherLock Washer
-
27205051660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
28420845381 Lock Washer 6 mmLock Washer 6 mm
-
29205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
30404146600 Seal WasherSeal Washer
-
31420956010 Check Valve Ass'YCheck Valve Ass'Y
-
32404146800 Banjo Screw M6 X 16Banjo Screw M6 X 16
-
33414413800 Oil Line (Mag Side)Oil Line (Mag Side)
-
34414413800 Oil Line (PTO Side)Oil Line (PTO Side)
-
35420853843 Clamp 3.5 mmClamp 3.5 mm
-
36293250042 GasketGasket
-
37293800060 Loctite 243Loctite 243
