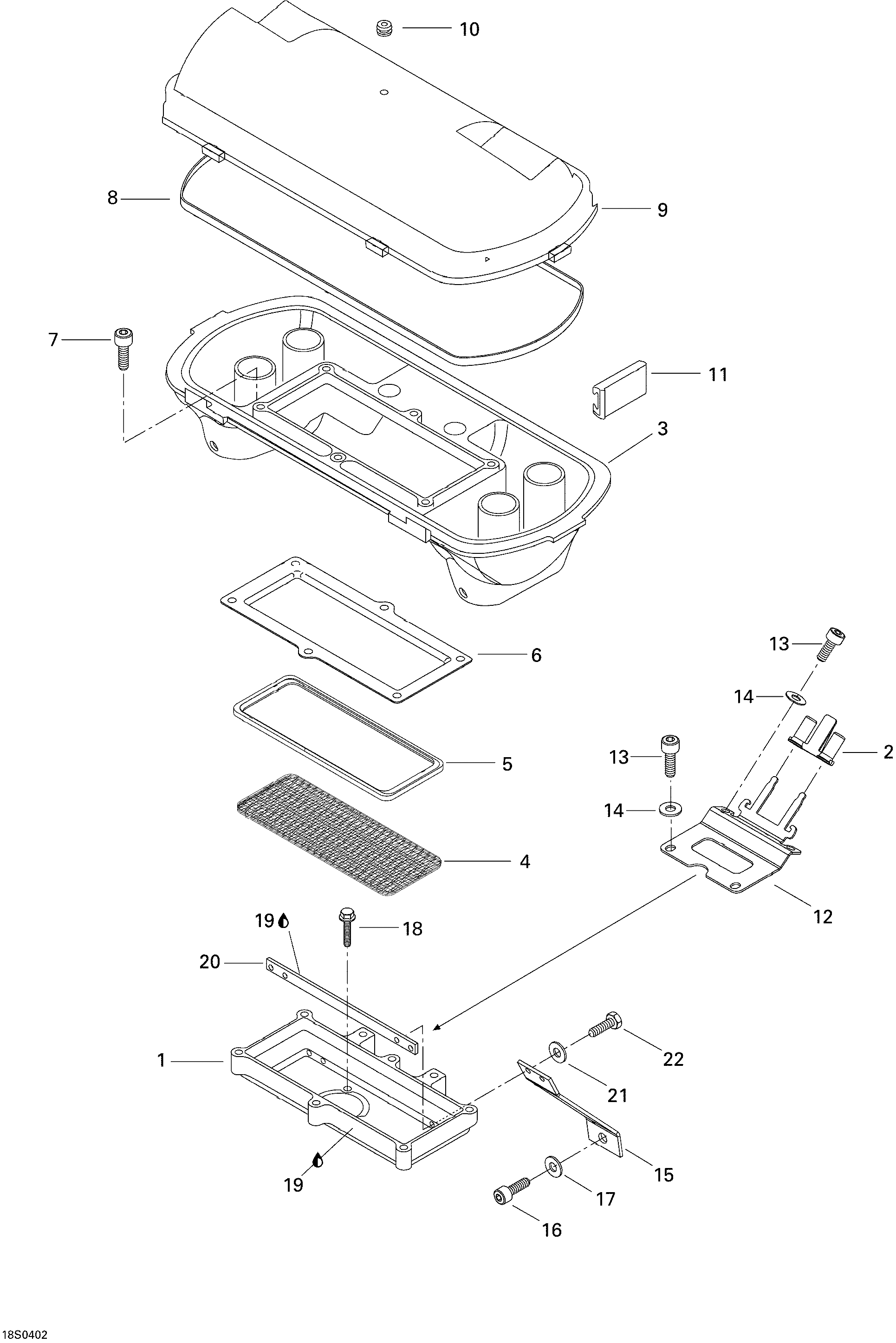

02- Air Intake для BRP GTI LE - 2004
-
№АртикулНазвание
-
1273000225 Arrest Housing (Black)Arrest Housing (Black)
-
2278000213 InsulatorInsulator
-
3273000103 Air Silencer BaseAir Silencer Base
-
4273000117 Flame ArresterFlame Arrester
-
5273000020 IsolatorIsolator
-
6273000059 HolderHolder
-
7205562560 Socket Head Screw M6 X 25 (Scotch Grip)Socket Head Screw M6 X 25 (Scotch Grip)
-
8293250023 GasketGasket
-
9273000115 Air Silencer CoverAir Silencer Cover
-
10293830005 Rubber PlugRubber Plug
-
11273000006 Retainer ClipRetainer Clip
-
12270000561 Arrester SupportArrester Support
-
13205561260 Socket Head Screw M6 X 12 (Scotch Grip)Socket Head Screw M6 X 12 (Scotch Grip)
-
14234061600 Flat Washer M6Flat Washer M6
-
15270000508 Flame Arrester Support PTOFlame Arrester Support PTO
-
270000507 Flame Arrester Support MagFlame Arrester Support Mag
-
16205582560 Socket Head Screw M8 X 25 (Scotch Grip)Socket Head Screw M8 X 25 (Scotch Grip)
-
17293050001 Flat WasherFlat Washer
-
18207562560 Hex Flanged Screw M6 X 25 (Scotch Grip)Hex Flanged Screw M6 X 25 (Scotch Grip)
-
19293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
20270000393 Threaded PlateThreaded Plate
-
21234051600 Flat Washer M5Flat Washer M5
-
22207351660 Hex Screw M5 X 16 (Scotch Grip)Hex Screw M5 X 16 (Scotch Grip)
