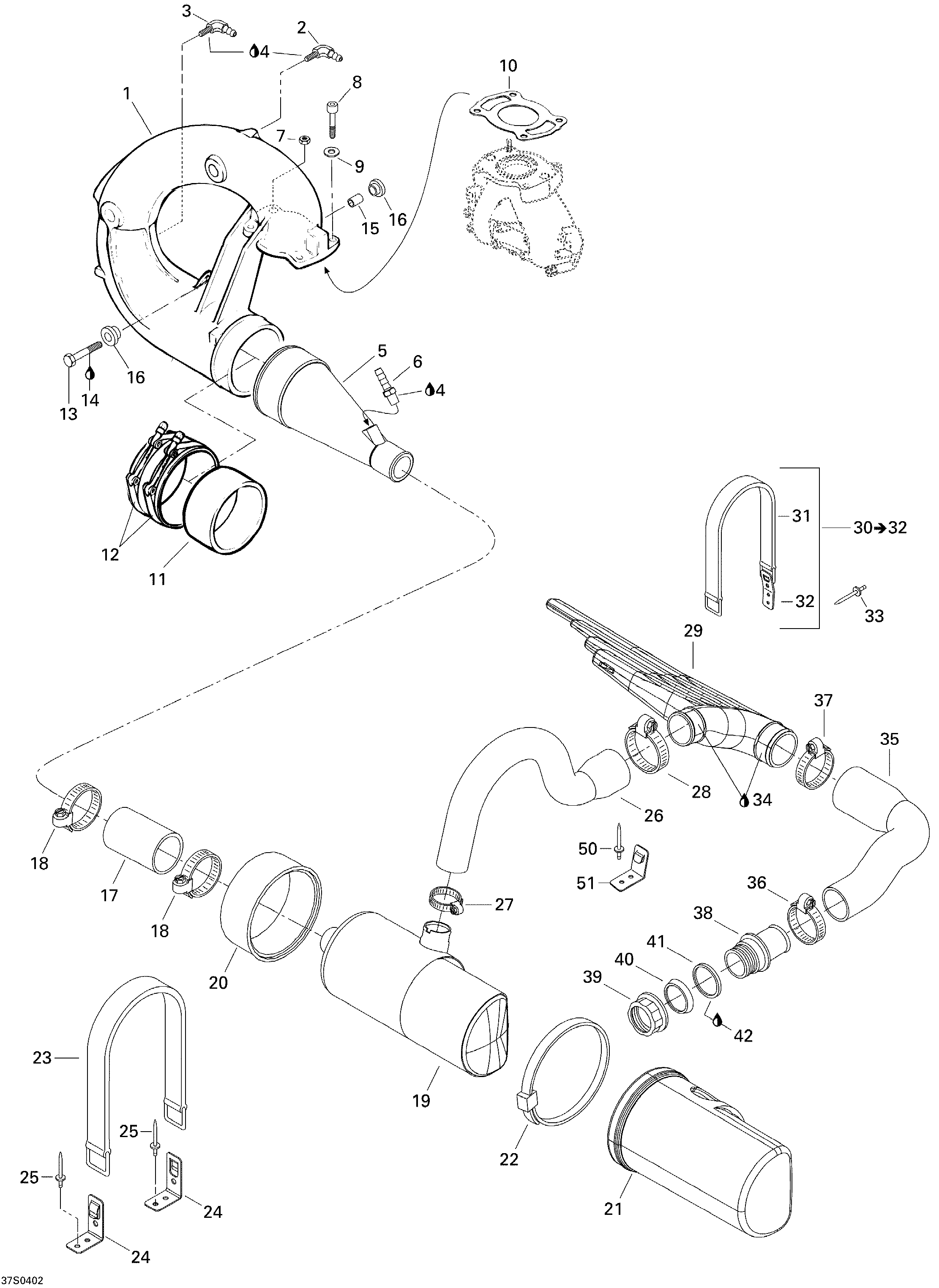

01- Exhaust System для BRP GTI LE - 2004
-
№АртикулНазвание
-
1274001091 Tune PipeTune Pipe
-
2293710018 Elbow Fitting 90°Elbow Fitting 90°
-
3293700023 Elbow Fitting 90°Elbow Fitting 90°
-
4293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
5274001093 Exhaust ConeExhaust Cone
-
6293710037 Male ConnectorMale Connector
-
7233101600 Nut M8Nut M8
-
8205503060 Socket Head Screw M10 X 30Socket Head Screw M10 X 30
-
9211200051 Washer 10 mmWasher 10 mm
-
10420950255 GasketGasket
-
11274000074 Sealing RingSealing Ring
-
12293650068 Norma ClampNorma Clamp
-
13207084060 Hex Screw M8 X 40Hex Screw M8 X 40
-
14293800060 Loctite 243Loctite 243
-
15274000114 BushingBushing
-
16293830031 Rubber BushingRubber Bushing
-
17274000032 Exhaust HoseExhaust Hose
-
18293650023 Tridon ClampTridon Clamp
-
19274000788 MufflerMuffler
-
20274000803 Front Cover MufflerFront Cover Muffler
-
21274000806 Rear Cover MufflerRear Cover Muffler
-
22293750020 Tie-Rap 838 mmTie-Rap 838 mm
-
23293850036 StrapStrap
-
24293850076 Strap Clip 90°Strap Clip 90°
-
25293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
26274000873 Exhaust HoseExhaust Hose
-
27293650023 Tridon ClampTridon Clamp
-
28293650107 Tridon ClampTridon Clamp
-
29274000700 LH ResonatorLH Resonator
-
30293850082 Strap Ass'y. Includes Items 30 to 32Strap Ass'y. Includes Items 30 to 32
-
31293850036 StrapStrap
-
32293850030 Strap ClipStrap Clip
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
35274000874 Hose ExhaustHose Exhaust
-
36293650064 Tridon ClampTridon Clamp
-
37204000079 Tridon ClampTridon Clamp
-
38274000843 Exhaust OutletExhaust Outlet
-
39274000224 Nut 72 mmNut 72 mm
-
40274000225 Stabilizing WasherStabilizing Washer
-
41293250041 GasketGasket
-
42296000309 Sealant Silicone, ClearSealant Silicone, Clear
