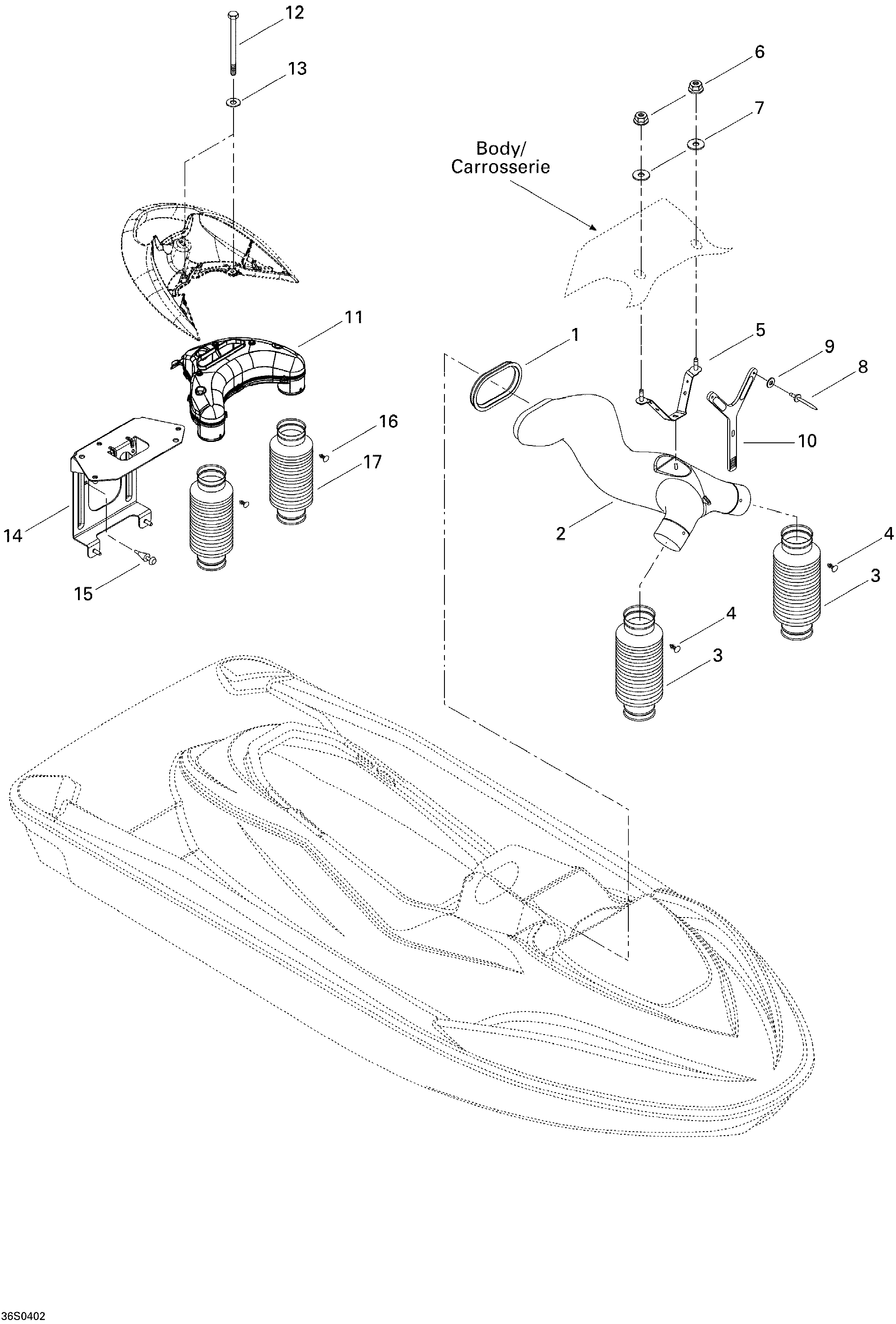

09- Ventilation для BRP GTI LE - 2004
-
№АртикулНазвание
-
1291001424 Collector JointCollector Joint
-
2291001629 Front CollectorFront Collector
-
3291001777 Vent HoseVent Hose
-
4293730024 Dard Fastex. Canada / United StatesDard Fastex. Canada / United States
-
5291001614 Collector SupportCollector Support
-
6232581600 Hex Elastic Nut M8. Canada / United StatesHex Elastic Nut M8. Canada / United States
-
7234081600 Flat Washer M8. Canada / United StatesFlat Washer M8. Canada / United States
-
8293150043 Pop Rivet (3/16)Pop Rivet (3/16)
-
9234052600 Flat Washer M5Flat Washer M5
-
10293850065 Rubber StrapRubber Strap
-
11291001873 Vent Tube Ass'YVent Tube Ass'Y
-
12230262060 Hex Screw M6 X 120 (Scotch Grip)Hex Screw M6 X 120 (Scotch Grip)
-
13234062600 Flat Washer M6Flat Washer M6
-
14278001615 Box SupportBox Support
-
15293830005 Rubber PlugRubber Plug
-
16293730024 Dard FastexDard Fastex
-
17291001777 Vent HoseVent Hose
