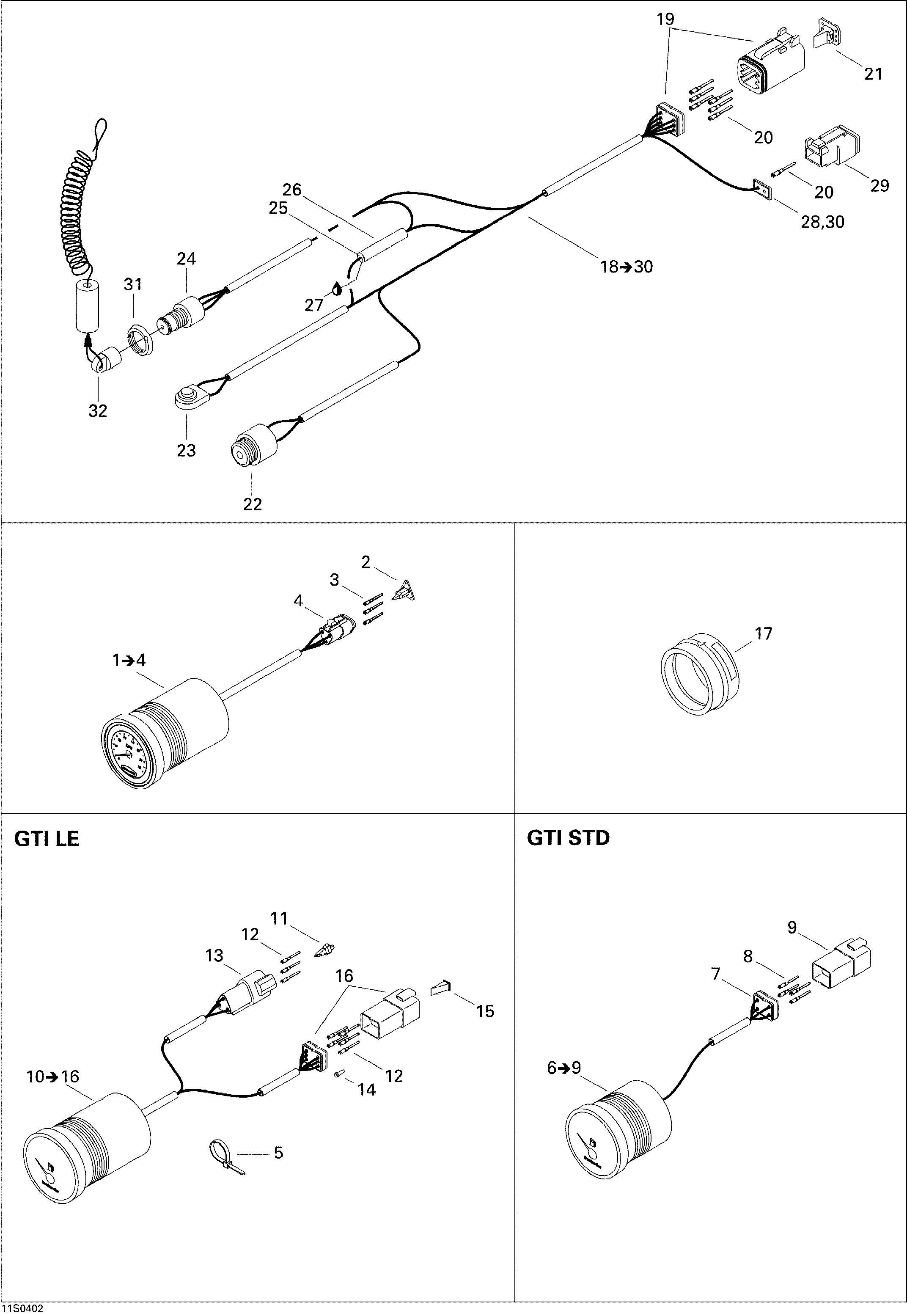

10- Electrical Accessories 1 для BRP GTI LE - 2004
-
№АртикулНазвание
-
1278001962 Speedometer. Includes 1 to 4 / GTI LESpeedometer. Includes 1 to 4 / GTI LE
-
2409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
3278001665 FemaleterminalFemaleterminal
-
4409207300 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
5414115200 Tie-RapTie-Rap
-
6278001622 Oil/Fuel Gauge. Includes 6 to 9 / GTI STDOil/Fuel Gauge. Includes 6 to 9 / GTI STD
-
7278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
8278001664 Male TerminalMale Terminal
-
9278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
10278001961 Oil/Fuel Gauge. Includes 10 to 16 / GTI LEOil/Fuel Gauge. Includes 10 to 16 / GTI LE
-
11409207600 Secondary Lock (3 Circuits)Secondary Lock (3 Circuits)
-
12278001664 Male TerminalMale Terminal
-
13409207000 Female Connector (3 Circuits)Female Connector (3 Circuits)
-
14293000052 Sealing CapSealing Cap
-
15278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
16270000137 Female Connector (6 Circuits)Female Connector (6 Circuits)
-
17293720047 Gauge Support. GTI LEGauge Support. GTI LE
-
17293720047 Gauge Support. GTI STDGauge Support. GTI STD
-
18278001791 Steering Harness. Includes 18 to 30Steering Harness. Includes 18 to 30
-
19278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
20278000632 Female TerminalFemale Terminal
-
21278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
22278001586 BuzzerBuzzer
-
23278001587 Switch Ass'YSwitch Ass'Y
-
24278001790 Safety SwitchSafety Switch
-
25278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
26278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
27293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
28293000052 Sealing CapSealing Cap
-
29409207300 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
30409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
31278000508 Safety Switch NutSafety Switch Nut
-
32278001543 Lanyard SafetyLanyard Safety
