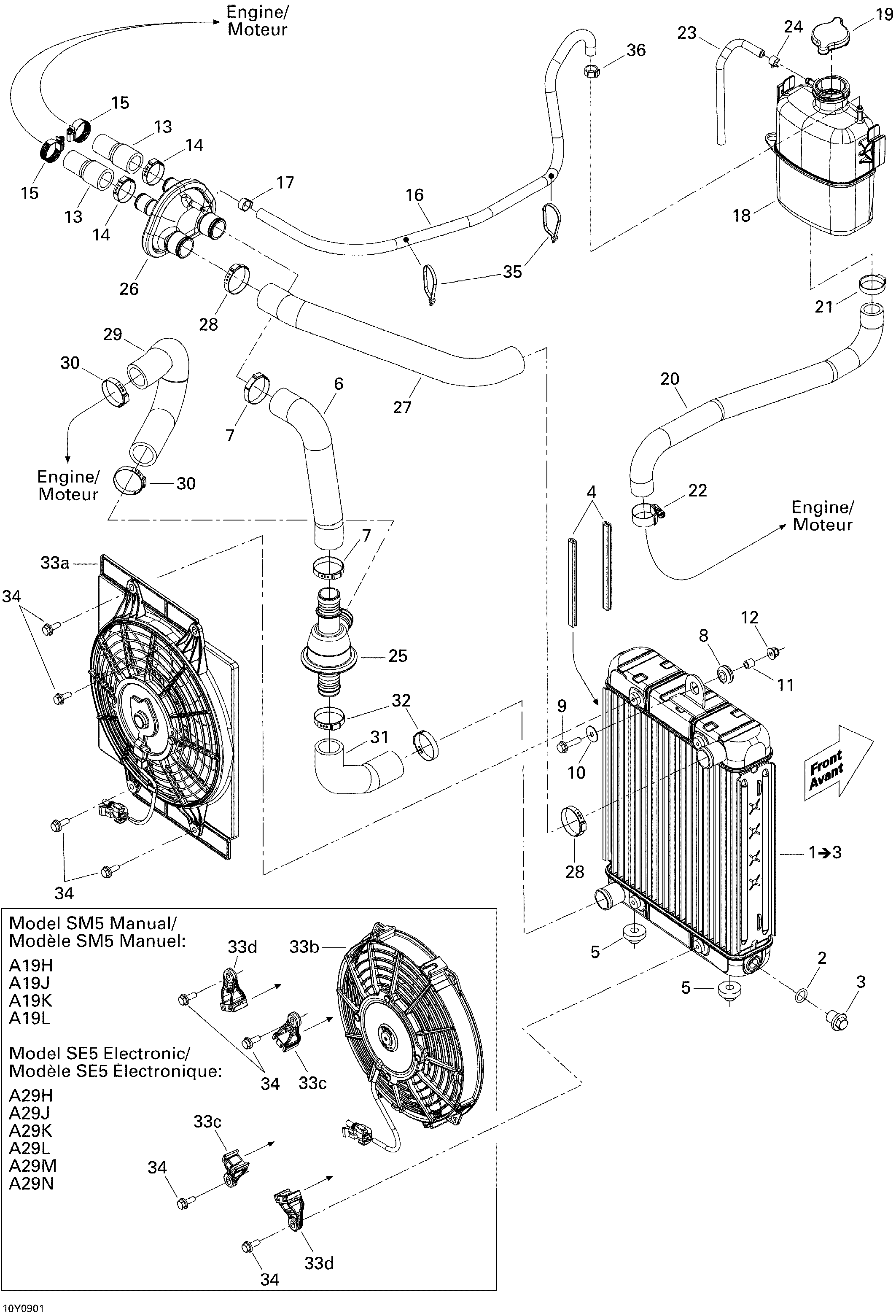

01- Cooling System SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1709200128 Radiator. Includes 1 to 3Radiator. Includes 1 to 3
-
2709200217 O-RingO-Ring
-
3709200218 Drain PlugDrain Plug
-
4271001530 TrimTrim
-
5570135100 GrommetGrommet
-
6709200215 HoseHose
-
7509000045 Oetiker Gear ClampOetiker Gear Clamp
-
8293720053 GrommetGrommet
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10224060201 Flat WasherFlat Washer
-
11293900045 BushingBushing
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13709200144 HoseHose
-
14293650099 Oetiker Gear ClampOetiker Gear Clamp
-
15293650173 Tridon Gear ClampTridon Gear Clamp
-
16709200186 HoseHose
-
17293650042 Oetiker ClampOetiker Clamp
-
18709200163 Coolant TankCoolant Tank
-
19509000187 Pressure CapPressure Cap
-
20709200139 HoseHose
-
21293650141 Oetiker Gear ClampOetiker Gear Clamp
-
22293650051 Tridon Gear ClampTridon Gear Clamp
-
23415080200 Polyurethane HosePolyurethane Hose
-
24414554800 Spring ClampSpring Clamp
-
25709200183 Thermostat HousingThermostat Housing
-
26709200151 ConnectorConnector
-
27709200133 HoseHose
-
28509000045 Oetiker Gear ClampOetiker Gear Clamp
-
29709200259 Formed HoseFormed Hose
-
30509000045 Oetiker Gear ClampOetiker Gear Clamp
-
31709200185 HoseHose
-
32509000045 Oetiker Gear ClampOetiker Gear Clamp
-
33a709200242 Fan. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GFan. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
33b709200124 Fan. SM5 Manual, A19H, A19J, A19K, A19LFan. SM5 Manual, A19H, A19J, A19K, A19L
-
33c709200125 Fan Support. SM5 Manual, A19H, A19J, A19K, A19LFan Support. SM5 Manual, A19H, A19J, A19K, A19L
-
33d709200126 Fan Support. SM5 Manual, A19H, A19J, A19K, A19LFan Support. SM5 Manual, A19H, A19J, A19K, A19L
-
34207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293650025 Oetiker ClampOetiker Clamp
