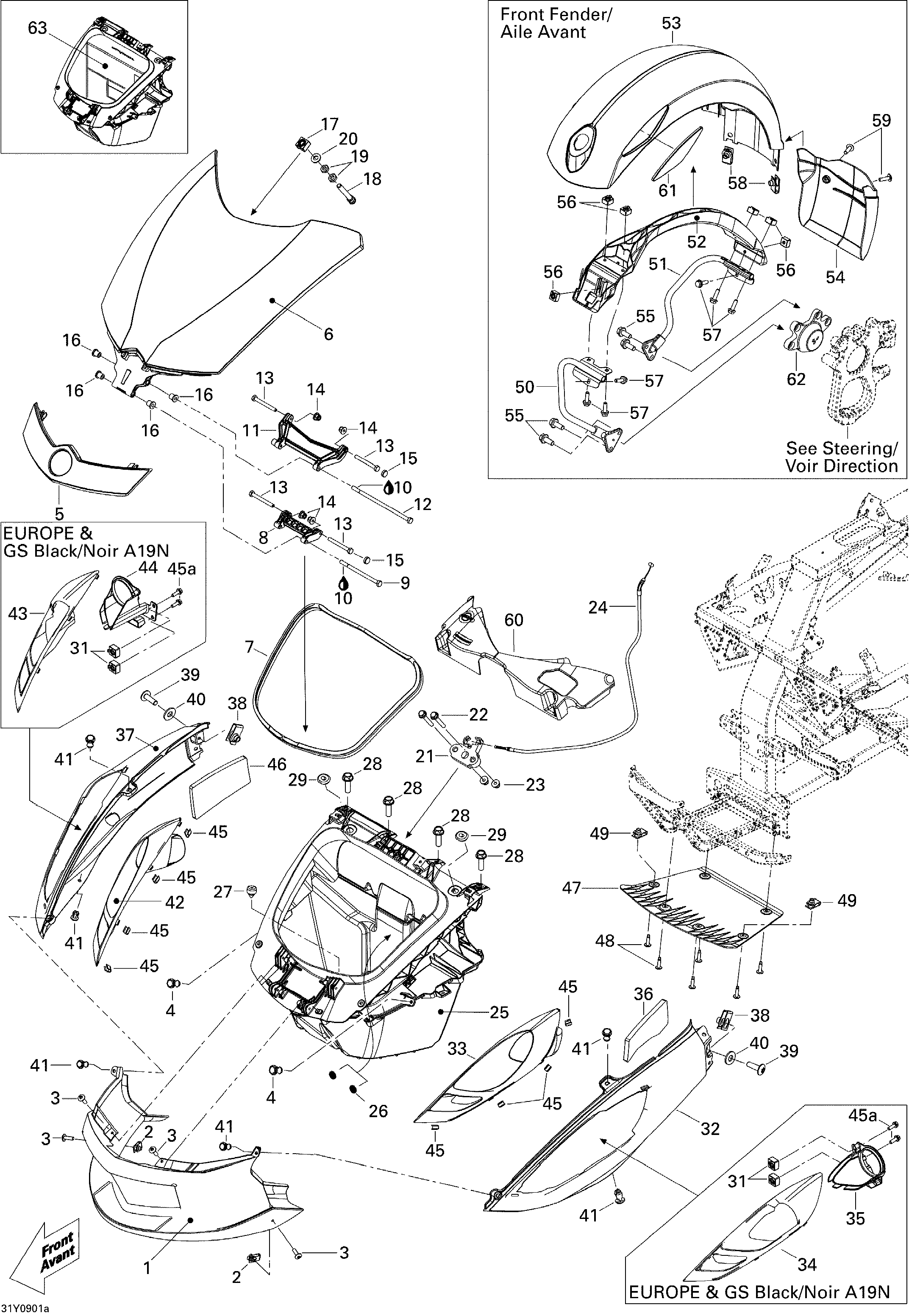

09- Body And Accessories Front_SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1705001391 Bumper CoverBumper Cover
-
2250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5705002549 Front Fascia, Full Moon. Full MoonFront Fascia, Full Moon. Full Moon
-
5705002550 Front Fascia, Yellow. YellowFront Fascia, Yellow. Yellow
-
5705003188 Front Fascia, Red. RedFront Fascia, Red. Red
-
5705003168 Front Fascia, Black. GS Black A19N ModelFront Fascia, Black. GS Black A19N Model
-
6705002552 Hood, Full Moon. Full MoonHood, Full Moon. Full Moon
-
6705002553 Hood, Yellow. YellowHood, Yellow. Yellow
-
6705003186 Hood, Red. RedHood, Red. Red
-
6705003169 Hood, Black. GS Black A19N ModelHood, Black. GS Black A19N Model
-
7293250047 Neoprene SealNeoprene Seal
-
8269501482 Front ArmFront Arm
-
9230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11269501481 Rear ArmRear Arm
-
12230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
13207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15414436900 Snap Cap, BlackSnap Cap, Black
-
16269500706 SleeveSleeve
-
17269501387 Nut Housing Ass'yNut Housing Ass'y
-
18705002223 LugLug
-
19232180600 Nut M8Nut M8
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21705002224 LatchLatch
-
22207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24517303484 Hood CableHood Cable
-
25705002287 Front Storage CompartmentFront Storage Compartment
-
26293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
27293830005 Rubber Plug, BlackRubber Plug, Black
-
28210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
29705005156 Oblong WasherOblong Washer
-
31269501387 Nut Housing Ass'y. EuropeNut Housing Ass'y. Europe
-
31269501387 Nut Housing Ass'y. GS Black A19N ModelNut Housing Ass'y. GS Black A19N Model
-
32705002561 LH Front Panel, BlackLH Front Panel, Black
-
33705001541 LH Air DuctLH Air Duct
-
34705001469 LH Headlamp Bezel. EuropeLH Headlamp Bezel. Europe
-
34705001469 LH Headlamp Bezel. GS Black A19N ModelLH Headlamp Bezel. GS Black A19N Model
-
35705002510 LH Headlamp Support, Black. EuropeLH Headlamp Support, Black. Europe
-
35705002510 LH Headlamp Support, Black. GS Black A19N ModelLH Headlamp Support, Black. GS Black A19N Model
-
36518325515 LH Front Panel FoamLH Front Panel Foam
-
37705002562 RH Front Panel, BlackRH Front Panel, Black
-
38250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
39250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
40705003207 Plastic WasherPlastic Washer
-
41293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
42705001543 RH Air DuctRH Air Duct
-
43705001470 RH Headlamp Bezel. EuropeRH Headlamp Bezel. Europe
-
43705001470 RH Headlamp Bezel. GS Black A19N ModelRH Headlamp Bezel. GS Black A19N Model
-
44705002511 RH Headlamp Support, Black. EuropeRH Headlamp Support, Black. Europe
-
44705002511 RH Headlamp Support, Black. GS Black A19N ModelRH Headlamp Support, Black. GS Black A19N Model
-
45414479100 ClipClip
-
45a207682544 Hex. Flanged Screw M8 X 25. EuropeHex. Flanged Screw M8 X 25. Europe
-
45a207682544 Hex. Flanged Screw M8 X 25. GS Black A19N ModelHex. Flanged Screw M8 X 25. GS Black A19N Model
-
46518325516 RH Front Panel FoamRH Front Panel Foam
-
47705002388 Skid PlateSkid Plate
-
48250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
49250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
50705002397 LH Fender Front SupportLH Fender Front Support
-
50705002400 RH Fender Front SupportRH Fender Front Support
-
51705003347 LH Fender Rear Support. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GLH Fender Rear Support. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
51705003348 RH Fender Rear Support. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GRH Fender Rear Support. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
51705002390 LH Fender Rear Support. SM5 Manual, A19H, A19J, A19K, A19LLH Fender Rear Support. SM5 Manual, A19H, A19J, A19K, A19L
-
51705002394 RH Fender Rear Support. SM5 Manual, A19H, A19J, A19K, A19LRH Fender Rear Support. SM5 Manual, A19H, A19J, A19K, A19L
-
52705002389 Central Front Fender SupportCentral Front Fender Support
-
53705003415 LH Front Fender, Yellow. YellowLH Front Fender, Yellow. Yellow
-
53705003417 LH Front Fender, Full Moon. Full MoonLH Front Fender, Full Moon. Full Moon
-
53705003419 LH Front Fender, Red. RedLH Front Fender, Red. Red
-
53705003170 LH Front Fender, Black. GS Black A19N ModelLH Front Fender, Black. GS Black A19N Model
-
53705003416 RH Front Fender, Yellow. YellowRH Front Fender, Yellow. Yellow
-
53705003418 RH Front Fender, Full Moon. Full MoonRH Front Fender, Full Moon. Full Moon
-
53705003420 RH Front Fender, Red. RedRH Front Fender, Red. Red
-
53705003171 RH Front Fender, Black. GS Black A19N ModelRH Front Fender, Black. GS Black A19N Model
-
54705001767 LH MudguardLH Mudguard
-
54705001768 RH MudguardRH Mudguard
-
55207582034 Hex. Flanged Screw, Scotch Grip. GS ModelHex. Flanged Screw, Scotch Grip. GS Model
-
56269500725 Nut Housing Ass'yNut Housing Ass'y
-
57207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
58250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
59250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
60705003025 Service CenterService Center
-
61705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
62520000862 LH Axle Cap. GS Black A19N ModelLH Axle Cap. GS Black A19N Model
-
62520000869 RH Axle Cap. GS Black A19N ModelRH Axle Cap. GS Black A19N Model
-
63280000319 Spyder Trunk Bag. GS Black A19N ModelSpyder Trunk Bag. GS Black A19N Model
