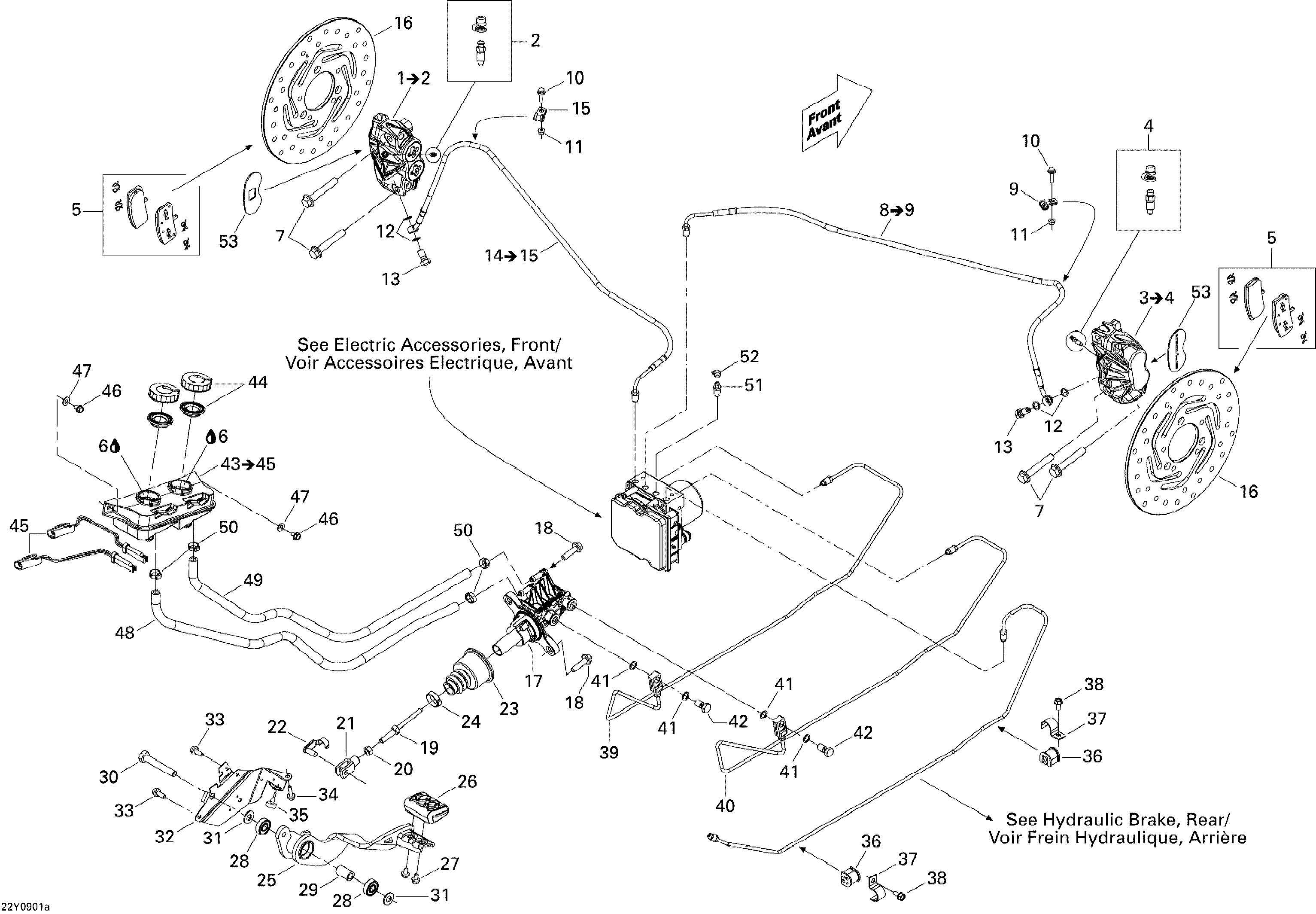

06- Hydraulic Brake, Front SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1219800125 LH Front Caliper Ass'y. Includes 1 to 2LH Front Caliper Ass'y. Includes 1 to 2
-
2219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
3219800126 RH Front Caliper Ass'y. Includes 3 to 4RH Front Caliper Ass'y. Includes 3 to 4
-
4219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
5219800071 Pad KitPad Kit
-
6293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
7207506034 Hex. Flanged Screw M10 X 60, Scotch GripHex. Flanged Screw M10 X 60, Scotch Grip
-
8705600731 RH Front Hose Ass'y. Includes 8 to 9RH Front Hose Ass'y. Includes 8 to 9
-
9705600459 ClampClamp
-
10207652034 Hex. Flanged Screw M5 X 20Hex. Flanged Screw M5 X 20
-
11233251434 Flanged Elastic NutFlanged Elastic Nut
-
12414920600 WasherWasher
-
13414920500 Banjo BoltBanjo Bolt
-
14705600732 LH Front Hose Ass'y. Includes 14 to 15LH Front Hose Ass'y. Includes 14 to 15
-
15705600459 ClampClamp
-
16705600435 Front Brake DiscFront Brake Disc
-
17705600722 Tandem Cylinder MasterTandem Cylinder Master
-
18207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
19705600468 Piston RodPiston Rod
-
20232081414 Hex. Nut M8Hex. Nut M8
-
21705600100 YokeYoke
-
22250400007 PinPin
-
23705600716 BellowBellow
-
24509000442 Oetiker Gear ClampOetiker Gear Clamp
-
25705600633 Brake PedalBrake Pedal
-
26705003352 Rubber Pad. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GRubber Pad. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
26705002706 Rubber Pad. SM5 Manual, A19H, A19J, A19K, A19LRubber Pad. SM5 Manual, A19H, A19J, A19K, A19L
-
27210261280 Hex. Flanged Screw M6 X 12. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GHex. Flanged Screw M6 X 12. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
27210261080 Hex. Flanged Screw M6 X 10. SM5 Manual, A19H, A19J, A19K, A19LHex. Flanged Screw M6 X 10. SM5 Manual, A19H, A19J, A19K, A19L
-
28705600458 BearingBearing
-
29705600541 BushingBushing
-
30207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
31234001410 Flat Washer 10 mmFlat Washer 10 mm
-
32705600606 Tab LockTab Lock
-
33207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
34210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
35708000125 Rubber StopperRubber Stopper
-
36705600450 Tube SupportTube Support
-
37705600507 ClipClip
-
38210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
39705600447 Rigid TubeRigid Tube
-
40705600448 Rigid TubeRigid Tube
-
41414920600 WasherWasher
-
42414920500 Banjo BoltBanjo Bolt
-
43705600735 Brake Fluid Reservoir Ass'y. Includes 43 to 45, SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GBrake Fluid Reservoir Ass'y. Includes 43 to 45, SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
43705600549 Brake Fluid Reservoir Ass'y. Includes 43 to 45, SM5 Manual, A19H, A19J, A19K, A19LBrake Fluid Reservoir Ass'y. Includes 43 to 45, SM5 Manual, A19H, A19J, A19K, A19L
-
44219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
45515176508 Oil Level SensorOil Level Sensor
-
46210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
47224061121 Flat WasherFlat Washer
-
48276000084 Hose 8 mmHose 8 mm
-
49276000084 Hose 8 mmHose 8 mm
-
50293650047 Oetiker ClampOetiker Clamp
-
51705600502 Bleeder ScrewBleeder Screw
-
52705600554 Bleeder CapBleeder Cap
-
53219400074 Caliper Decal Kit. GS Black A19N ModelCaliper Decal Kit. GS Black A19N Model
