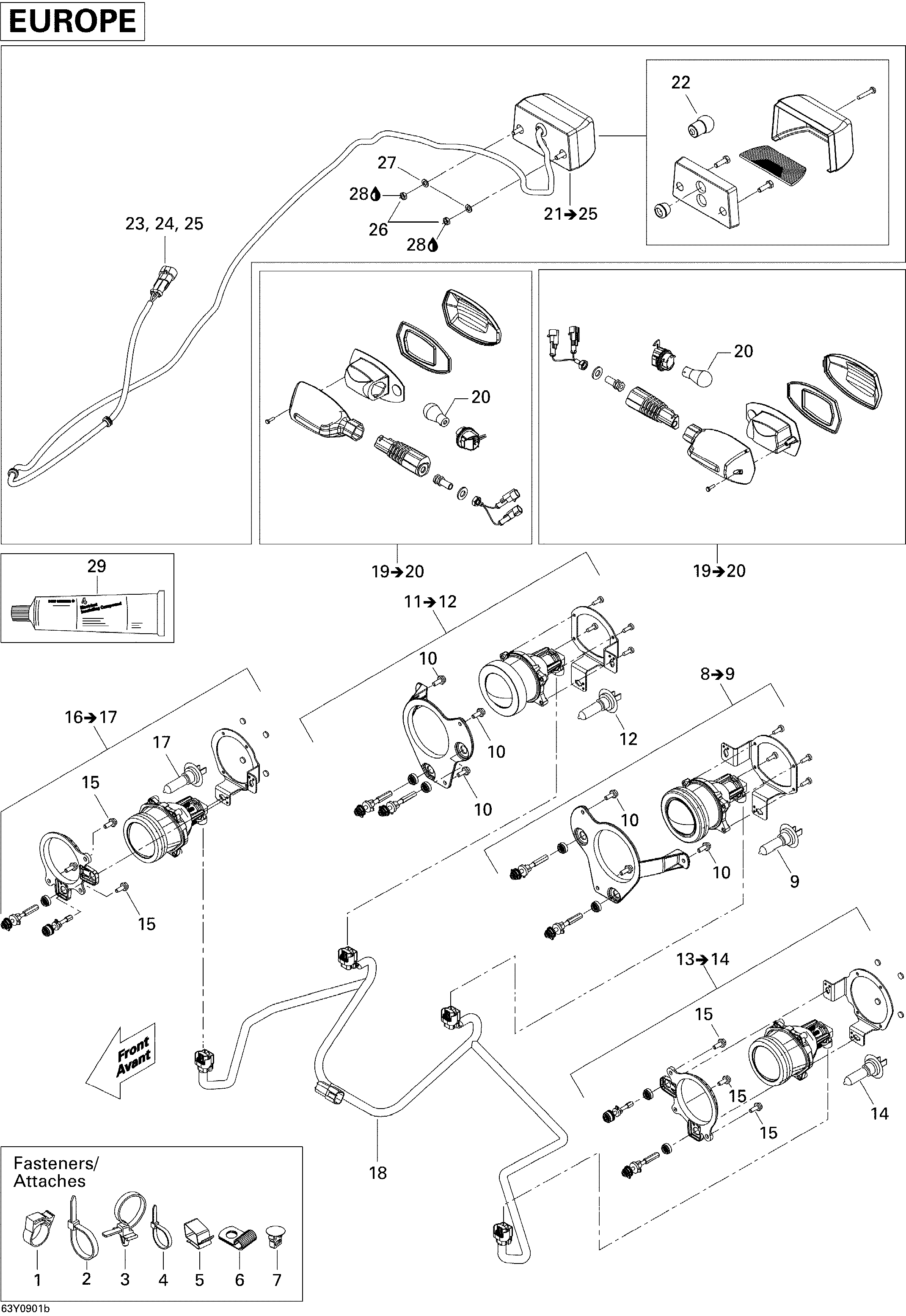

10- Lighting System Europe для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8710001601 High Beam Ass'y. Includes 8 to 9High Beam Ass'y. Includes 8 to 9
-
9415129249 Halogen BulbHalogen Bulb
-
10207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
11710001602 High Beam Ass'y. Includes 11 to 12High Beam Ass'y. Includes 11 to 12
-
12415129249 Halogen BulbHalogen Bulb
-
13710001603 Low Beam Ass'y. Includes 13 to 14Low Beam Ass'y. Includes 13 to 14
-
14415129249 Halogen BulbHalogen Bulb
-
15207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
16710001604 Low Beam Ass'y. Includes 16 to 17Low Beam Ass'y. Includes 16 to 17
-
17415129249 Halogen BulbHalogen Bulb
-
18710000793 Beam Harness Ass'yBeam Harness Ass'y
-
19710000707 Rear Turn Signal Ass'y. Includes 19 to 20Rear Turn Signal Ass'y. Includes 19 to 20
-
20715900043 Bulb 12V 21WBulb 12V 21W
-
21710000709 Licence Light. Includes 21 to 25Licence Light. Includes 21 to 25
-
22415129261 BulbBulb
-
23278001013 Wire SealWire Seal
-
24409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
25409012900 Male TerminalMale Terminal
-
26232051600 Hex. Nut M5Hex. Nut M5
-
27234051600 Flat Washer M5Flat Washer M5
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
