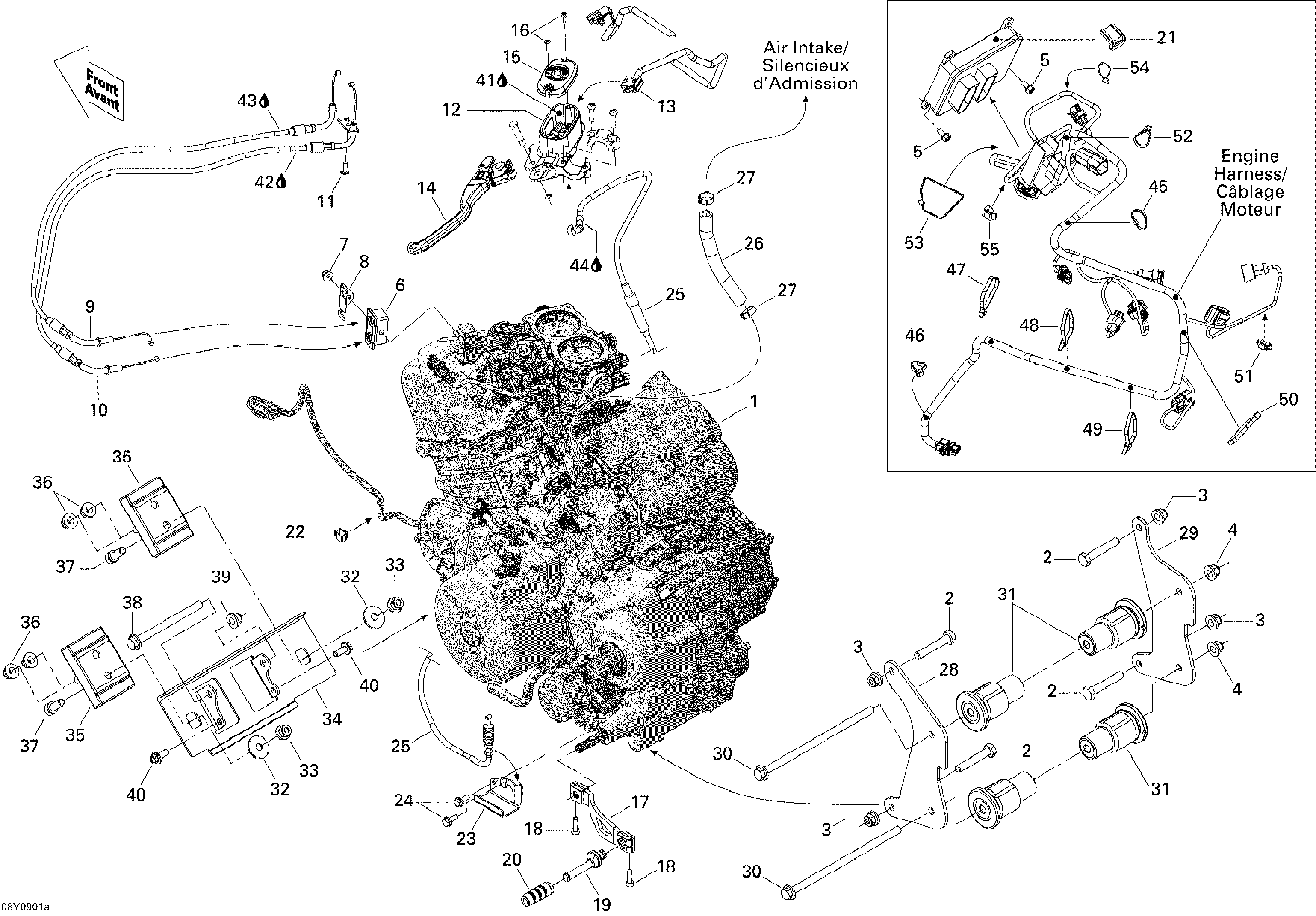

01- Engine 1_SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1707000378 Engine, Rotax 991 FS. Long Block 421000708Engine, Rotax 991 FS. Long Block 421000708
-
2207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
6707000609 Indexing BlockIndexing Block
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8707000610 Fixation PlateFixation Plate
-
9707000607 Throttle CableThrottle Cable
-
10707000608 Throttle Cable With BracketThrottle Cable With Bracket
-
11250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
12707000381 Clutch Lever Ass'yClutch Lever Ass'y
-
13219400068 SwitchSwitch
-
14707000623 Lever Ass'yLever Ass'y
-
15707000616 Cover ReservoirCover Reservoir
-
16250000342 Screw 8-32Screw 8-32
-
17707000386 LeverLever
-
18514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
19707000455 Adjustment RodAdjustment Rod
-
20707000456 End Clutch PedalEnd Clutch Pedal
-
21278001166 Module ProtectorModule Protector
-
22414227300 ClipClip
-
23420251560 SupportSupport
-
24207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
25707000400 Reverse CableReverse Cable
-
26707000484 HoseHose
-
27293650186 Oetiker ClampOetiker Clamp
-
28707000510 Support LHSupport LH
-
29707000512 Support RHSupport RH
-
30250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
31707000516 Rubber MountRubber Mount
-
32512056700 Lock WasherLock Washer
-
33233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
34707000452 Front Engine SupportFront Engine Support
-
35707000441 Rubber MountRubber Mount
-
36233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
37205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
38230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
39233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
40207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
41293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
42293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
43293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
44293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
45293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
51414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
55414227300 ClipClip
