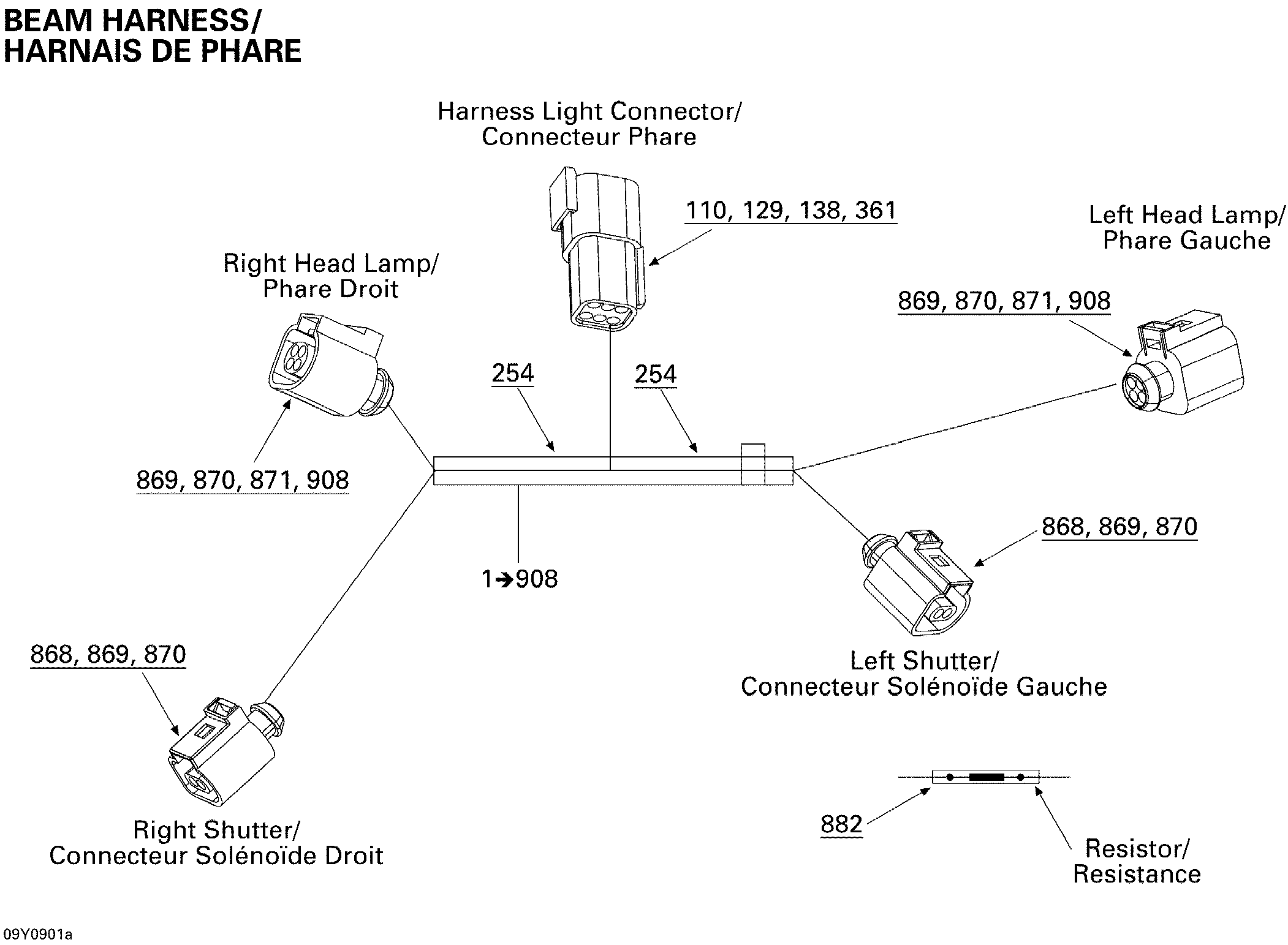

10- Beam Harness для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1710000792 Beam Harness Ass'y. Includes 1 to 908Beam Harness Ass'y. Includes 1 to 908
-
110278000631 Male TerminalMale Terminal
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
254409901700 Tubing 9 mmTubing 9 mm
-
361515175668 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
868710001184 HousingHousing
-
869710001185 Female TerminalFemale Terminal
-
870710001186 Seal WireSeal Wire
-
871710001187 HousingHousing
-
882710001205 ResistorResistor
-
908710001258 PlugPlug
