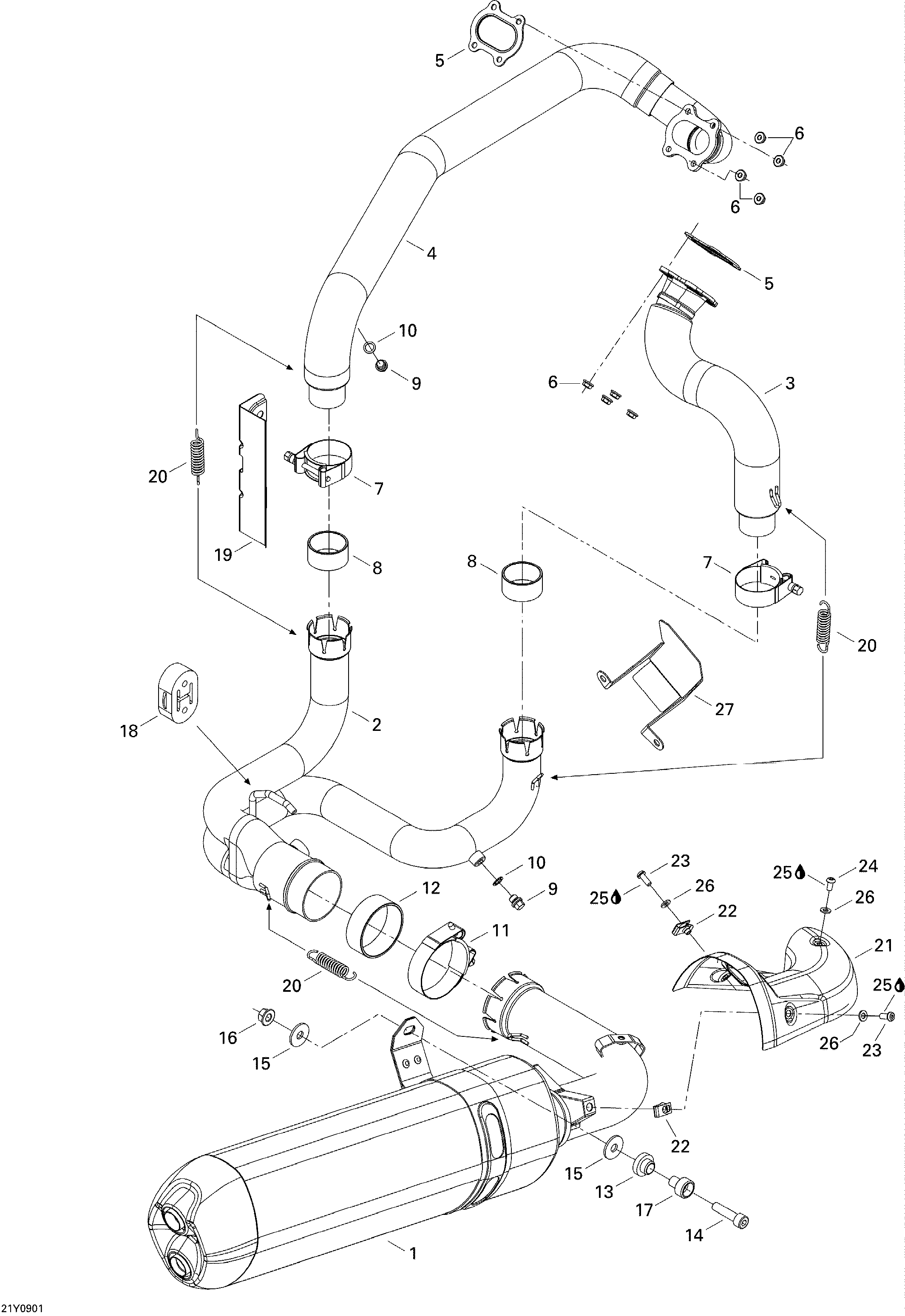

01- Exhaust System SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1707600285 Tune PipeTune Pipe
-
2707600623 Exhaust ManifoldExhaust Manifold
-
3707600635 Rear Exhaust Pipe. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19GRear Exhaust Pipe. SM5 Manual, A19B, A19C, A19D, A19E, A19F, A19G
-
3707600294 Rear Tune Pipe. SM5 Manual, A19H, A19J, A19K, A19LRear Tune Pipe. SM5 Manual, A19H, A19J, A19K, A19L
-
4707600289 Front Tune PipeFront Tune Pipe
-
5707600296 SealSeal
-
6233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
7707600336 CollarCollar
-
8707600546 Slip JointSlip Joint
-
9250100087 Hex Head Pipe Plug M10Hex Head Pipe Plug M10
-
10414920600 WasherWasher
-
11707600351 CollarCollar
-
12707600547 Slip JointSlip Joint
-
13570273900 GrommetGrommet
-
14244004060 Hex. Screw M10 X 40, Scotch GripHex. Screw M10 X 40, Scotch Grip
-
15234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
16233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
17707600390 BushingBushing
-
18707600638 Rubber BumperRubber Bumper
-
19707600444 DeflectorDeflector
-
20514054226 SpringSpring
-
21705001570 Heat ShieldHeat Shield
-
22250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
23205461660 Socket Screw M6 X 16Socket Screw M6 X 16
-
24205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26234061600 Flat Washer M6Flat Washer M6
-
27707600580 RH Deflector. SM5 Manual, A19H, A19J, A19K, A19LRH Deflector. SM5 Manual, A19H, A19J, A19K, A19L
