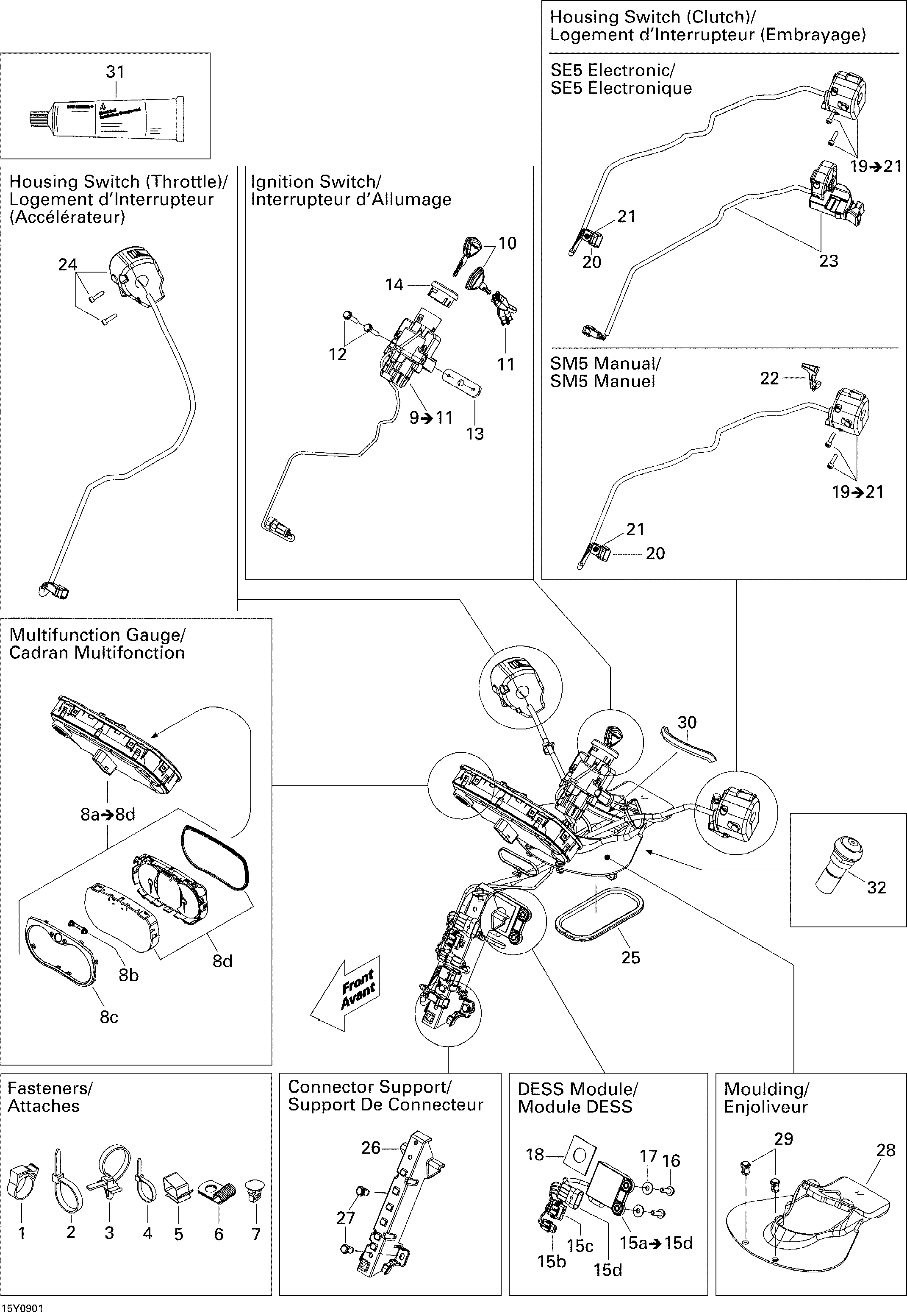

10- Electrical Accessories, Steering SM5 Manual для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8a710001516 Speedometer. Includes 8a to 8dSpeedometer. Includes 8a to 8d
-
8b415129355 Speedometer ButtonSpeedometer Button
-
8c415129348 Gauge RingGauge Ring
-
8d415129349 LensLens
-
9219800070 Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15dIgnition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
-
10710001211 KeyKey
-
11710001102 CoverCover
-
12207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
13710001365 Switch SupportSwitch Support
-
14710001194 Switch CoverSwitch Cover
-
15a219800070 Ignition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15dIgnition Switch & DESS Module Kit. Includes 9 to 11, 15a to 15d
-
15b409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
15c409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
15d710000576 Housing, 4circuitsHousing, 4circuits
-
16210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
17234062410 Flat Washer 6 mmFlat Washer 6 mm
-
18293830091 Rubber BumperRubber Bumper
-
19515176197 Housing Switch. Includes 19 to 21Housing Switch. Includes 19 to 21
-
20710001148 HousingHousing
-
21710001149 LockLock
-
22710001353 Reverse Lever. SM5 ManualReverse Lever. SM5 Manual
-
24710001488 Housing SwitchHousing Switch
-
25271001530 TrimTrim
-
26710001328 Connector SupportConnector Support
-
27293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
28710001342 MouldingMoulding
-
29293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
30271001530 TrimTrim
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32710001277 Fog Light Switch. GS Black A19N ModelFog Light Switch. GS Black A19N Model
