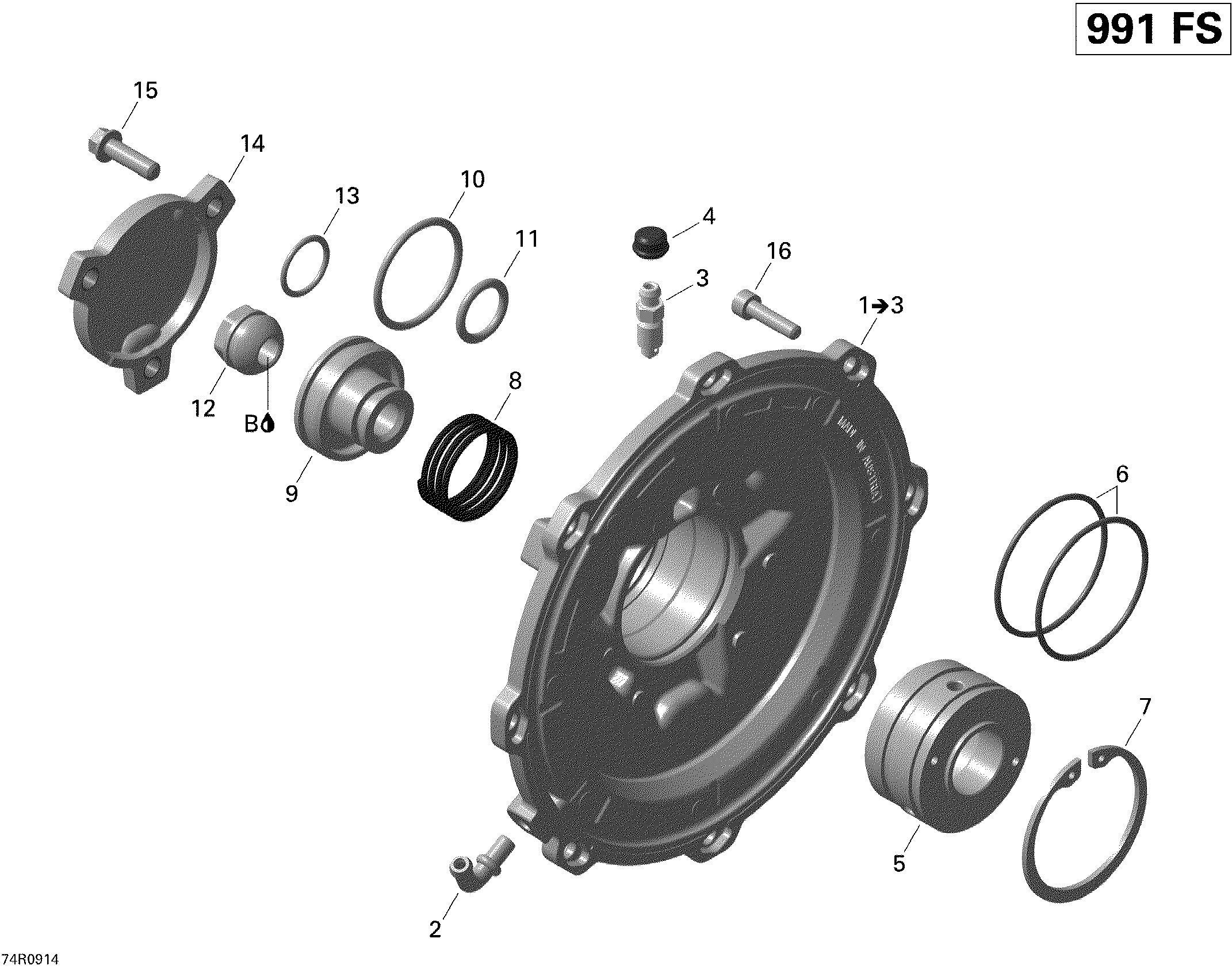

05- Diaphragm Cover для BRP Spyder GS Roadster with SM5 transmission - 2009
-
№АртикулНазвание
-
1420611365 Diaphragm Cover. Includes 1 to 3Diaphragm Cover. Includes 1 to 3
-
3420656470 ValveValve
-
4420460570 Rubber CapRubber Cap
-
5420233190 Antifriction BushingAntifriction Bushing
-
6420950966 O-RingO-Ring
-
7420245190 Retaining RingRetaining Ring
-
8420238740 Compression SpringCompression Spring
-
9420656122 PistonPiston
-
10420431441 O-RingO-Ring
-
11420431301 O-RingO-Ring
-
12420242641 Nut M10 X 1Nut M10 X 1
-
13420631890 O-RingO-Ring
-
14420611710 CoverCover
-
15420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
16420441341 Socket Head Screw M5 X 20Socket Head Screw M5 X 20
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
