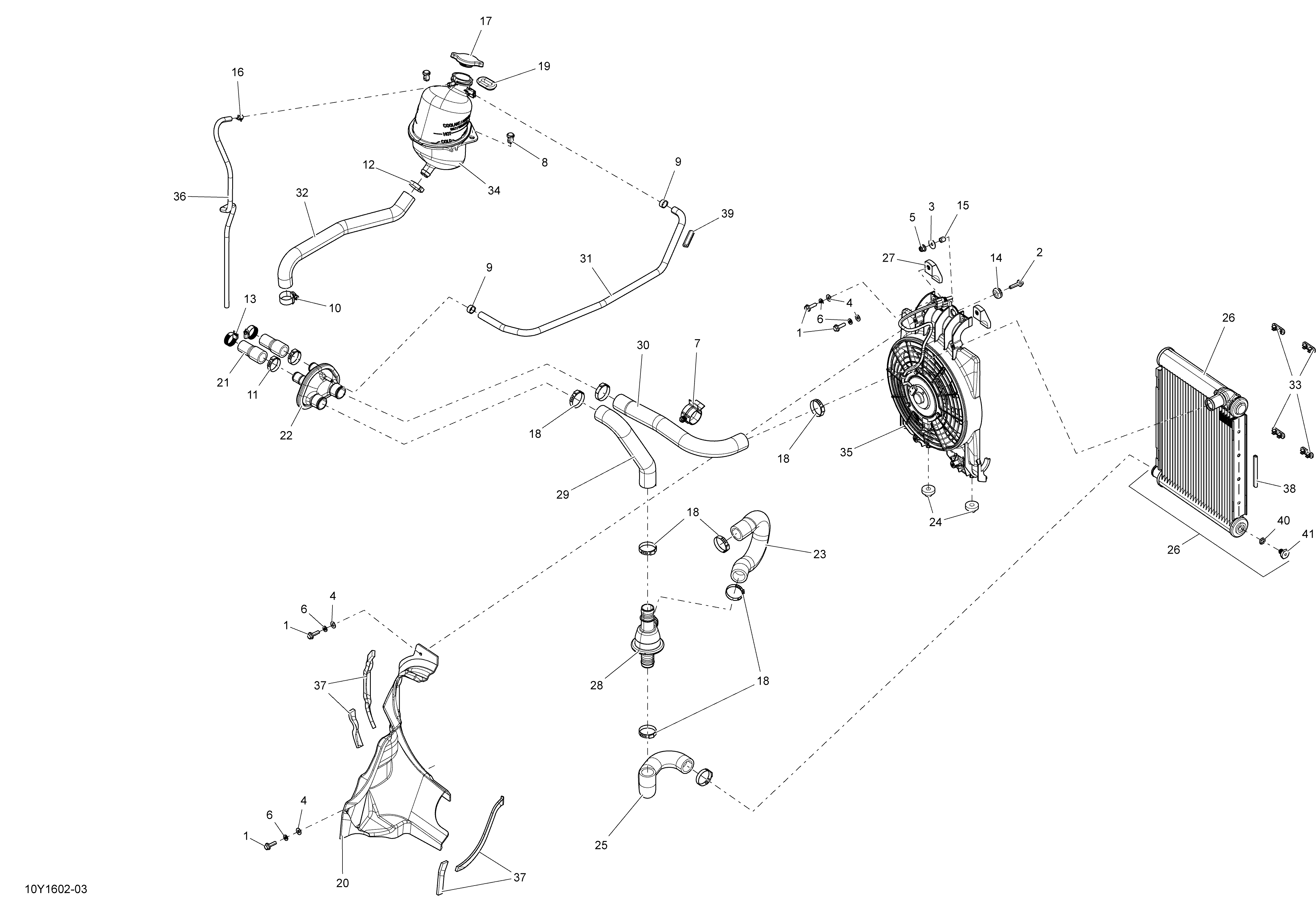

01- Cooling System для BRP RS - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3224060201 Flat WasherFlat Washer
-
4224061121 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234161601 Lock Washer Helical M6Lock Washer Helical M6
-
7275500590 RetainerRetainer
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9293650025 Oetiker Gear ClampOetiker Gear Clamp
-
10293650051 Tridon Gear ClampTridon Gear Clamp
-
11293650099 Crimp ClampCrimp Clamp
-
12293650165 Oetiker Gear ClampOetiker Gear Clamp
-
13293650173 Tridon Gear ClampTridon Gear Clamp
-
14293720053 GrommetGrommet
-
15293900105 BushingBushing
-
16414554800 Spring ClampSpring Clamp
-
17509000187 Pressure CapPressure Cap
-
18509000529 Oetiker Gear ClampOetiker Gear Clamp
-
19705003668 Oblong GrommetOblong Grommet
-
20705006688 RH Inner Heat ShieldRH Inner Heat Shield
-
21709200144 Formed HoseFormed Hose
-
22709200151 ConnectorConnector
-
23709200259 Formed HoseFormed Hose
-
24709200285 GrommetGrommet
-
25709200301 Formed HoseFormed Hose
-
26709200337 RadiatorRadiator
-
27709200372 Clamp BracketClamp Bracket
-
28709200384 Thermostat HousingThermostat Housing
-
29709200419 Formed HoseFormed Hose
-
30709200420 Formed HoseFormed Hose
-
31709200421 Formed HoseFormed Hose
-
32709200489 Formed HoseFormed Hose
-
33709200502 Rubber StopperRubber Stopper
-
34709200528 Coolant TankCoolant Tank
-
35709200554 Fan AssemblyFan Assembly
-
36415080200 Hose, PolyurethaneHose, Polyurethane
-
37293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
38414506600 TrimTrim
-
39271001530 TrimTrim
-
40709200417 O-RingO-Ring
-
41709200418 Drain PlugDrain Plug
