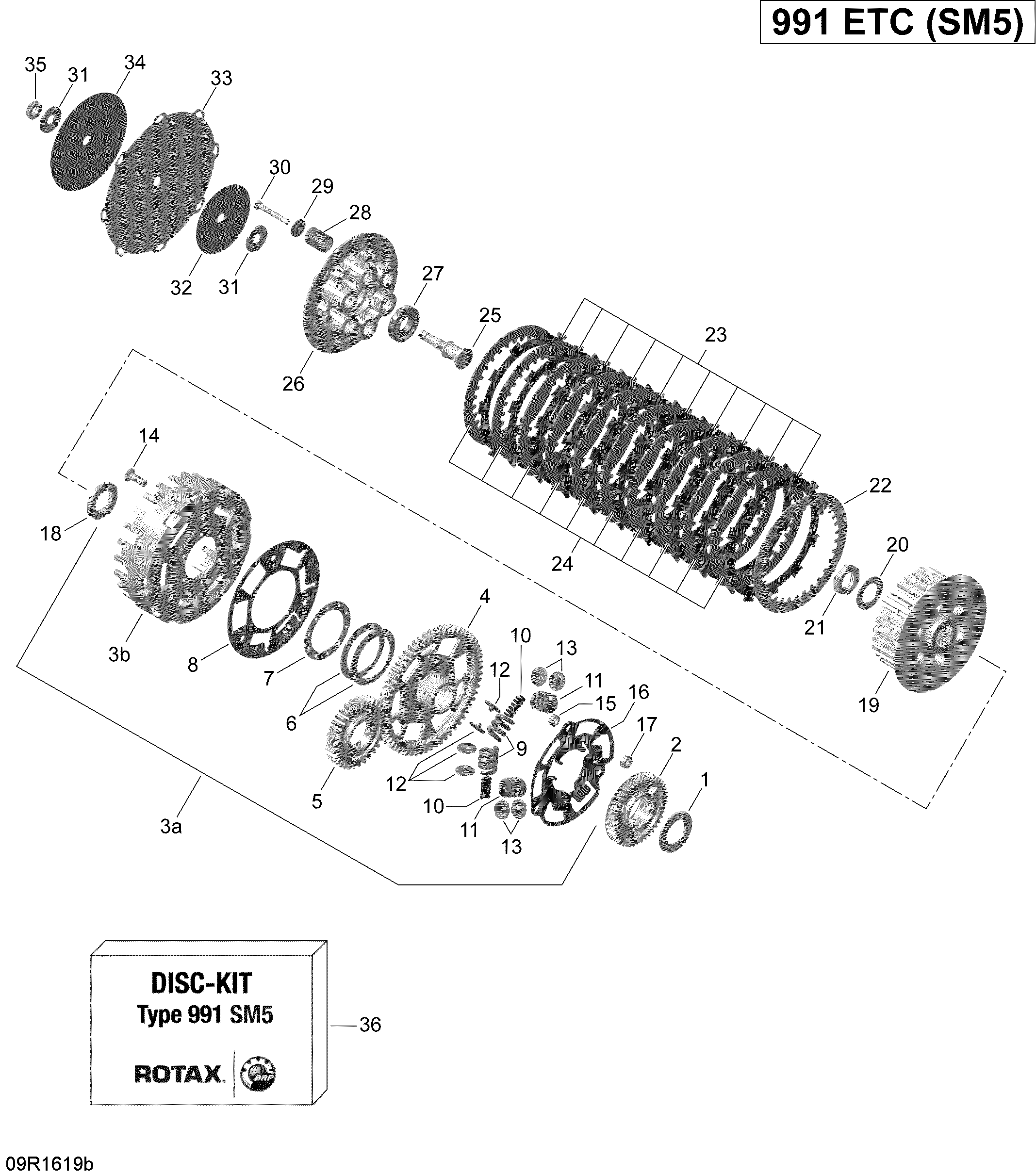

05- Clutch - SM5 для BRP RS - 2016
-
№АртикулНазвание
-
1420626540 Thrust WasherThrust Washer
-
2420634478 Oil Gear Pump, 42 TeethOil Gear Pump, 42 Teeth
-
3a420685850 Primary Drive Ass'yPrimary Drive Ass'y
-
3b420259533 Clutch Drum. Includes 3a to 17Clutch Drum. Includes 3a to 17
-
4420295787 Primary Drive Gear Ass'yPrimary Drive Gear Ass'y
-
6420239395 Disc SpringDisc Spring
-
7420626810 Thrust WasherThrust Washer
-
8420259685 Support PlateSupport Plate
-
9420238135 Compression SpringCompression Spring
-
10420238140 Internal Compression SpringInternal Compression Spring
-
11420238130 Compression SpringCompression Spring
-
12420247971 Spring RetainerSpring Retainer
-
13420247976 Spring RetainerSpring Retainer
-
14420941835 Flat Head Screw, M8 X 25Flat Head Screw, M8 X 25
-
15420247614 Spacer SleeveSpacer Sleeve
-
16420259583 Outer Support PlateOuter Support Plate
-
17232081414 Hex. Nut M8Hex. Nut M8
-
18420627225 Thrust WasherThrust Washer
-
19420259521 Hub ClutchHub Clutch
-
20420245830 Spring WasherSpring Washer
-
21420242954 Hex. Nut M24Hex. Nut M24
-
22420259266 Plate, 1.5 mm. See Item 36, Disc KitPlate, 1.5 mm. See Item 36, Disc Kit
-
25420659791 PinPin
-
26420259519 Pressure Plate Ass'y. Includes 26 to 27Pressure Plate Ass'y. Includes 26 to 27
-
27420632135 Ball BearingBall Bearing
-
28420238721 Clutch Spring. See Item 36, Disc KitClutch Spring. See Item 36, Disc Kit
-
29420627534 Step Washer. See Item 36, Disc KitStep Washer. See Item 36, Disc Kit
-
30420640315 Screw M6 X 45Screw M6 X 45
-
31420227180 Thrust WasherThrust Washer
-
32420627230 Disc SupportDisc Support
-
33420260892 DiaphragmDiaphragm
-
34420627281 Disc PlateDisc Plate
-
35420642059 Hexagonal Nut M12 X 1Hexagonal Nut M12 X 1
-
36420281930 Disc Kit, Type 991 SM5Disc Kit, Type 991 SM5
