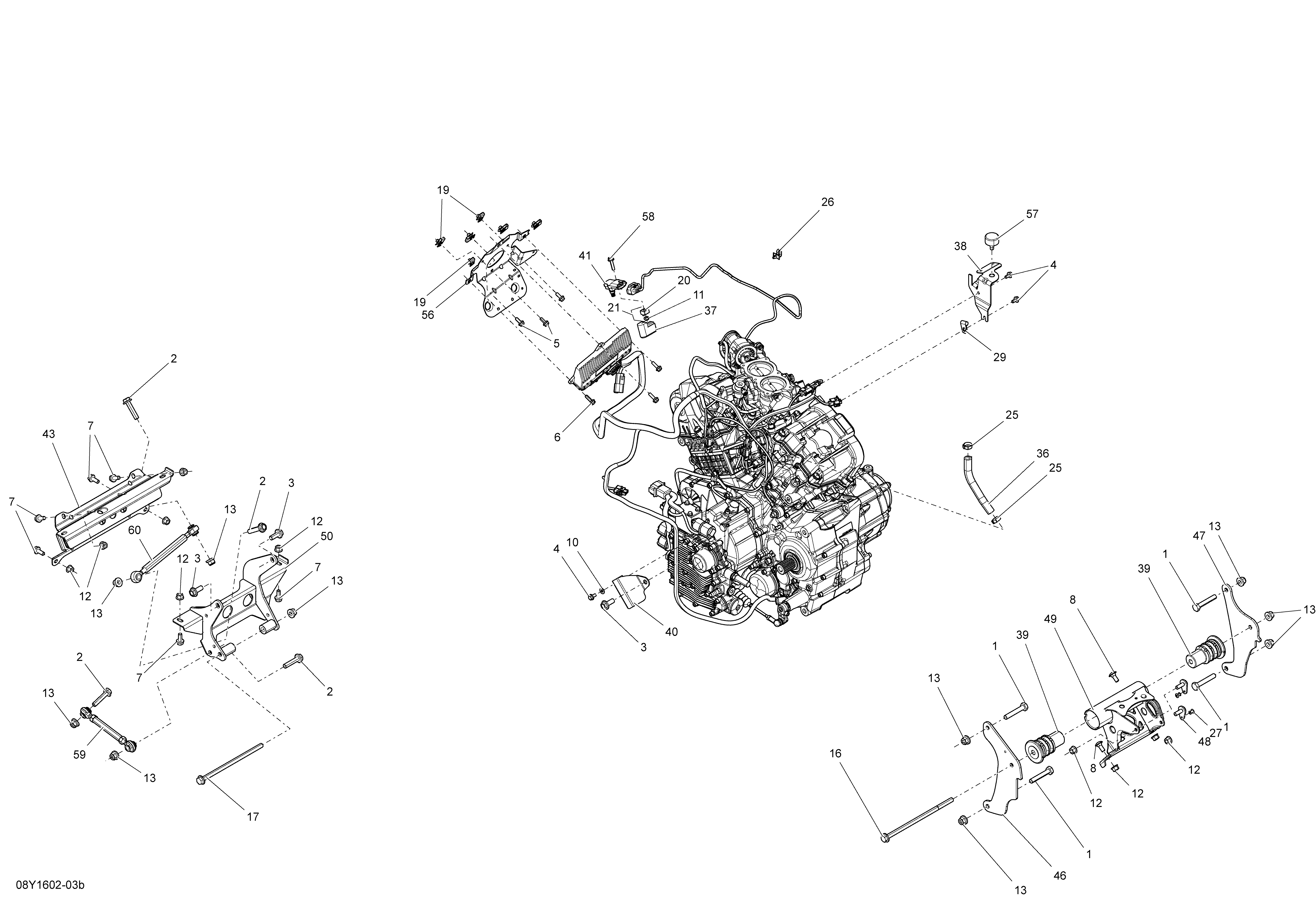

01- Engine - SE5 для BRP RS - 2016
-
№АртикулНазвание
-
1207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
2207504546 Hex. Flanged Screw M10 X 45 Scotch GripHex. Flanged Screw M10 X 45 Scotch Grip
-
3207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
8207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
10224061121 Flat WasherFlat Washer
-
11232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
12233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
13233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
17250000583 Hex. Flanged Screw M10 X 200Hex. Flanged Screw M10 X 200
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
21269500725 Nut Housing Ass'yNut Housing Ass'y
-
25293650186 Oetiker ClampOetiker Clamp
-
26293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
27390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
29415052400 AttacheAttache
-
36707000484 HoseHose
-
37707000586 FilterFilter
-
38707000756 Intake SupportIntake Support
-
39707000814 Rubber MountRubber Mount
-
40707000845 DeflectorDeflector
-
41707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
43707001056 Front Rubber MountFront Rubber Mount
-
46707001238 LH Engine SupportLH Engine Support
-
47707001239 RH Engine SupportRH Engine Support
-
48707001292 AttachAttach
-
49707001331 ExtentionExtention
-
50707001336 Front Engine SupportFront Engine Support
-
56707800469 BracketBracket
-
57708000758 Rubber StopperRubber Stopper
-
58207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
59707001919 Connecting RodConnecting Rod
-
60707001920 Connecting RodConnecting Rod
