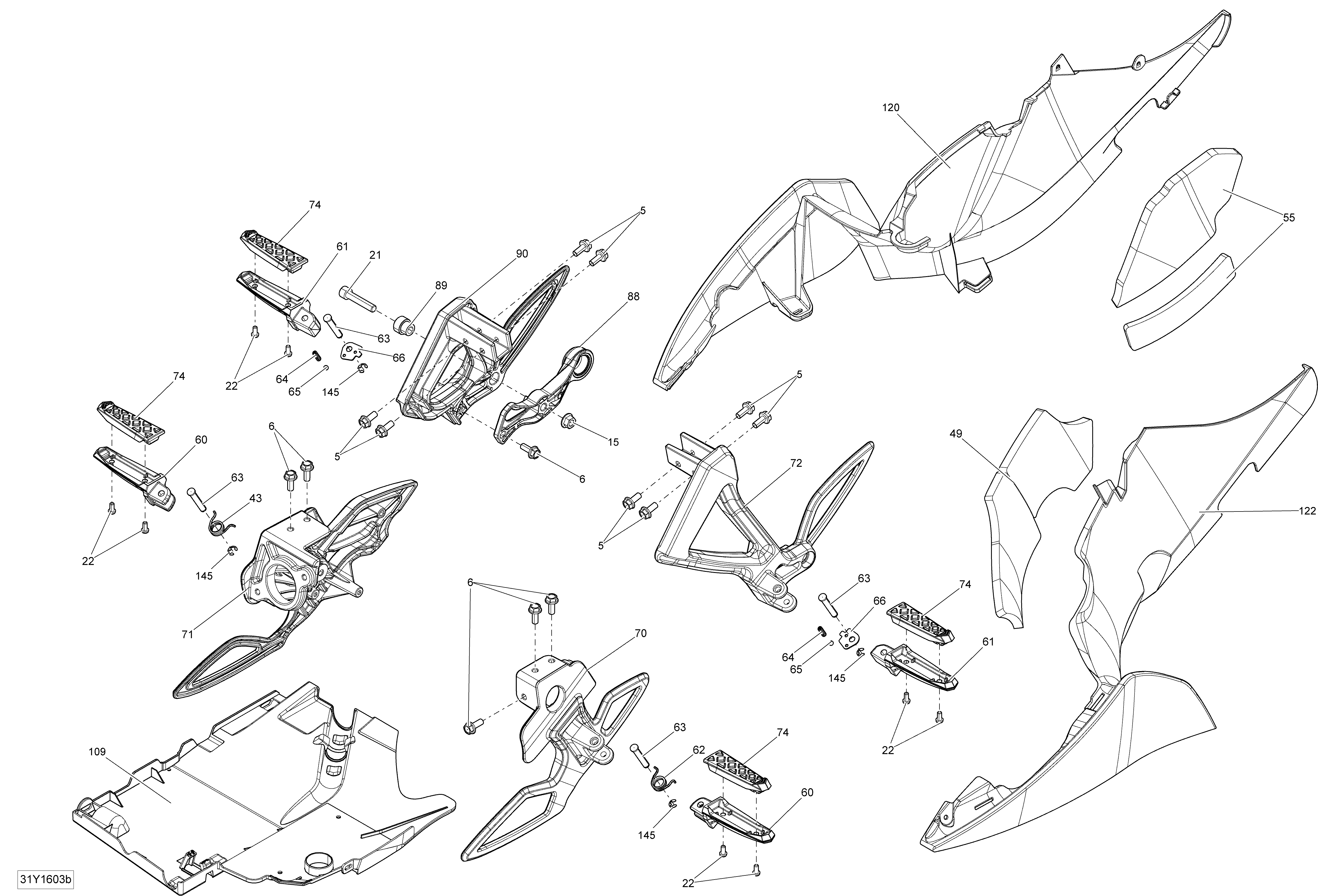

09- Body And Accessories - Footrest для BRP RS - 2016
-
№АртикулНазвание
-
5207581844 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
15233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
21244005060 Allen Screw S.GRIP M10 X 50Allen Screw S.GRIP M10 X 50
-
22250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
43705003362 SpringSpring
-
49518324753 LH Rocker Panel FoamLH Rocker Panel Foam
-
55518327520 RH Rocker Panel FoamRH Rocker Panel Foam
-
60705004180 LH Front Footrest. Package-STDLH Front Footrest. Package-STD
-
60705004183 RH Front Footrest. Package-STDRH Front Footrest. Package-STD
-
60705004671 LH Front Footrest. Package-SLH Front Footrest. Package-S
-
60705004672 RH Front Footrest. Package-SRH Front Footrest. Package-S
-
61705004186 LH Rear Footrest. Package-STDLH Rear Footrest. Package-STD
-
61705004189 RH Rear Footrest. Package-STDRH Rear Footrest. Package-STD
-
61705004680 LH Rear Footrest. Package-SLH Rear Footrest. Package-S
-
61705004681 RH Rear Footrest. Package-SRH Rear Footrest. Package-S
-
62705001701 SpringSpring
-
63705001702 Retainer PinRetainer Pin
-
64705001704 SpringSpring
-
65705001705 BallBall
-
66705001706 Indexation PlateIndexation Plate
-
70705004179 Silver LH Front Foot Support. Package-STDSilver LH Front Foot Support. Package-STD
-
70705004673 Black Carbon LH Front Foot Support. Package-SBlack Carbon LH Front Foot Support. Package-S
-
71705004182 Silver RH Foot Support. Package-STDSilver RH Foot Support. Package-STD
-
71705004674 Black Carbon RH Foot Support. Package-SBlack Carbon RH Foot Support. Package-S
-
72705004185 Silver LH Rear Foot Support. Package-STDSilver LH Rear Foot Support. Package-STD
-
72705004678 Black Carbon LH Rear Foot Support. Package-SBlack Carbon LH Rear Foot Support. Package-S
-
72705004188 Silver RH Rear Foot Support. Package-STDSilver RH Rear Foot Support. Package-STD
-
72705003533 Noir Carbone Support Repose-Pied Arriere DR. Package-SNoir Carbone Support Repose-Pied Arriere DR. Package-S
-
74705002359 Rubber PadRubber Pad
-
88705006852 Grey Muffler Support. Package-STDGrey Muffler Support. Package-STD
-
88705006853 Noir Support De Silencieux. Package-SNoir Support De Silencieux. Package-S
-
89705003765 BushingBushing
-
90705006603 Silver RH Rear Footrest Support. Package-STDSilver RH Rear Footrest Support. Package-STD
-
90705003533 Noir Carbone Support Repose-Pied Arriere DR. Package-SNoir Carbone Support Repose-Pied Arriere DR. Package-S
-
109705005749 LH Deflector PannelLH Deflector Pannel
-
120705006689 RH Rocker PanelRH Rocker Panel
-
122705006985 LH Rocker PanelLH Rocker Panel
-
145705601030 CirclipCirclip
