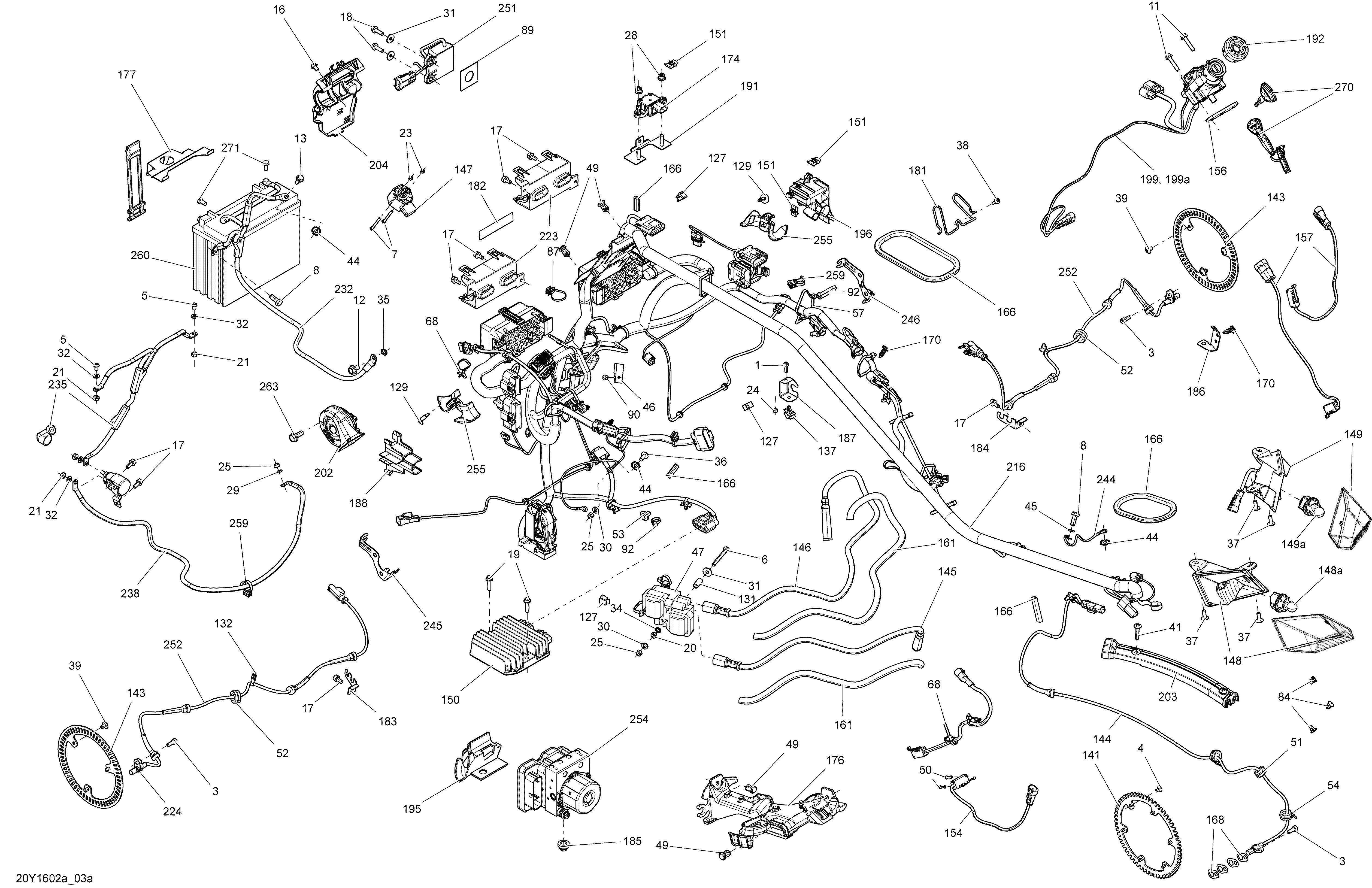

10- Electrical System - General для BRP RS - 2016
-
№АртикулНазвание
-
1205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
5205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
6207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
7207144044 Hex. Cap ScrewHex. Cap Screw
-
8207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
11207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
12207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
17210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
19210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
20232061414 Hex. Nut M6Hex. Nut M6
-
21232061600 Hex. Nut M6Hex. Nut M6
-
23232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
24232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30234061670 Flat Washer 6 mmFlat Washer 6 mm
-
31234062410 Flat Washer 6 mmFlat Washer 6 mm
-
32234161601 Lock Washer Helical M6Lock Washer Helical M6
-
34234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
35234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
36250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
37250000721 Torx ScrewTorx Screw
-
38250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
39250000747 TORX-TRUSS M/S M6 X 10TORX-TRUSS M/S M6 X 10
-
41250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
44250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
45250200111 WasherWasher
-
46270000141 ClipClip
-
47278001546 Ignition CoilIgnition Coil
-
49293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50293150150 Pop RivetPop Rivet
-
51293720084 GrommetGrommet
-
52293720095 GrommetGrommet
-
53293730018 Mount DartMount Dart
-
54293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
57293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
68293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
84293750044 Tie Rap MountTie Rap Mount
-
87293750063 Clip Tie-RapClip Tie-Rap
-
89293830091 Rubber BumperRubber Bumper
-
90390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
92414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
127414227300 ClipClip
-
129414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
131512059812 SpacerSpacer
-
132515175220 Tie RapTie Rap
-
137515176795 ClipClip
-
141705601372 Sensor WheelSensor Wheel
-
143705601512 Front Sensor WheeelFront Sensor Wheeel
-
144706202361 Speed SensorSpeed Sensor
-
145707000399 Cable Ass'yCable Ass'y
-
146707000518 Cable Ass'yCable Ass'y
-
147219800354 Steering Position SensorSteering Position Sensor
-
148515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
148a520000758 BulbBulb
-
149515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
149a520000758 BulbBulb
-
150710001191 Voltage RegulatorVoltage Regulator
-
151710001222 LockLock
-
154710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
156710001365 Switch SupportSwitch Support
-
157710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
161415079900 Tubing 10 mmTubing 10 mm
-
166271001530 TrimTrim
-
168710002023 ShimShim
-
170710002033 HolderHolder
-
174710002677 Yaw Rate SensorYaw Rate Sensor
-
176710002860 Rear SupportRear Support
-
177710002893 Battery HolderBattery Holder
-
181710003017 Grommet SpindleGrommet Spindle
-
182710003077 R/L Label DecalR/L Label Decal
-
183710003156 Speed Sensor HolderSpeed Sensor Holder
-
184710003157 Speed Sensor HolderSpeed Sensor Holder
-
185710003279 Damper ShockDamper Shock
-
186710003305 Connectors BracketConnectors Bracket
-
187710003306 Knock Holder SupportKnock Holder Support
-
188710003322 Connector SupportConnector Support
-
191710003494 YRS HolderYRS Holder
-
192710003594 Switch CoverSwitch Cover
-
195710003996 VCM Harness ProtectorVCM Harness Protector
-
196710004086 Connector SupportConnector Support
-
199710004277 Ignition SwitchIgnition Switch
-
199a219800373 DESS AntennaDESS Antenna
-
202710004229 HornHorn
-
203710004281 ProtectorProtector
-
204710004308 Wire SupportWire Support
-
216710004350 Frame Harness Ass'y. SM5Frame Harness Ass'y. SM5
-
216710004351 Frame Harness Ass'y. SE5Frame Harness Ass'y. SE5
-
223710004472 Fuse Holder SupportFuse Holder Support
-
232710004733 Cable NegCable Neg
-
235710004734 Cable PositiveCable Positive
-
238710004735 Start CableStart Cable
-
244710004849 Tank CableTank Cable
-
245710004860 Support-Wire LHSupport-Wire LH
-
246710004861 Support-Wire RHSupport-Wire RH
-
251710004916 Dess ModuleDess Module
-
252710004923 Speed SensorSpeed Sensor
-
254219800375 VCM Dry ProgVCM Dry Prog
-
255710004931 Harness HolderHarness Holder
-
259710005037 ClipClip
-
260410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
263207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
270710004408 Ignition Key KitIgnition Key Kit
-
271250000282 Battery Bolt Kit. RSBattery Bolt Kit. RS
