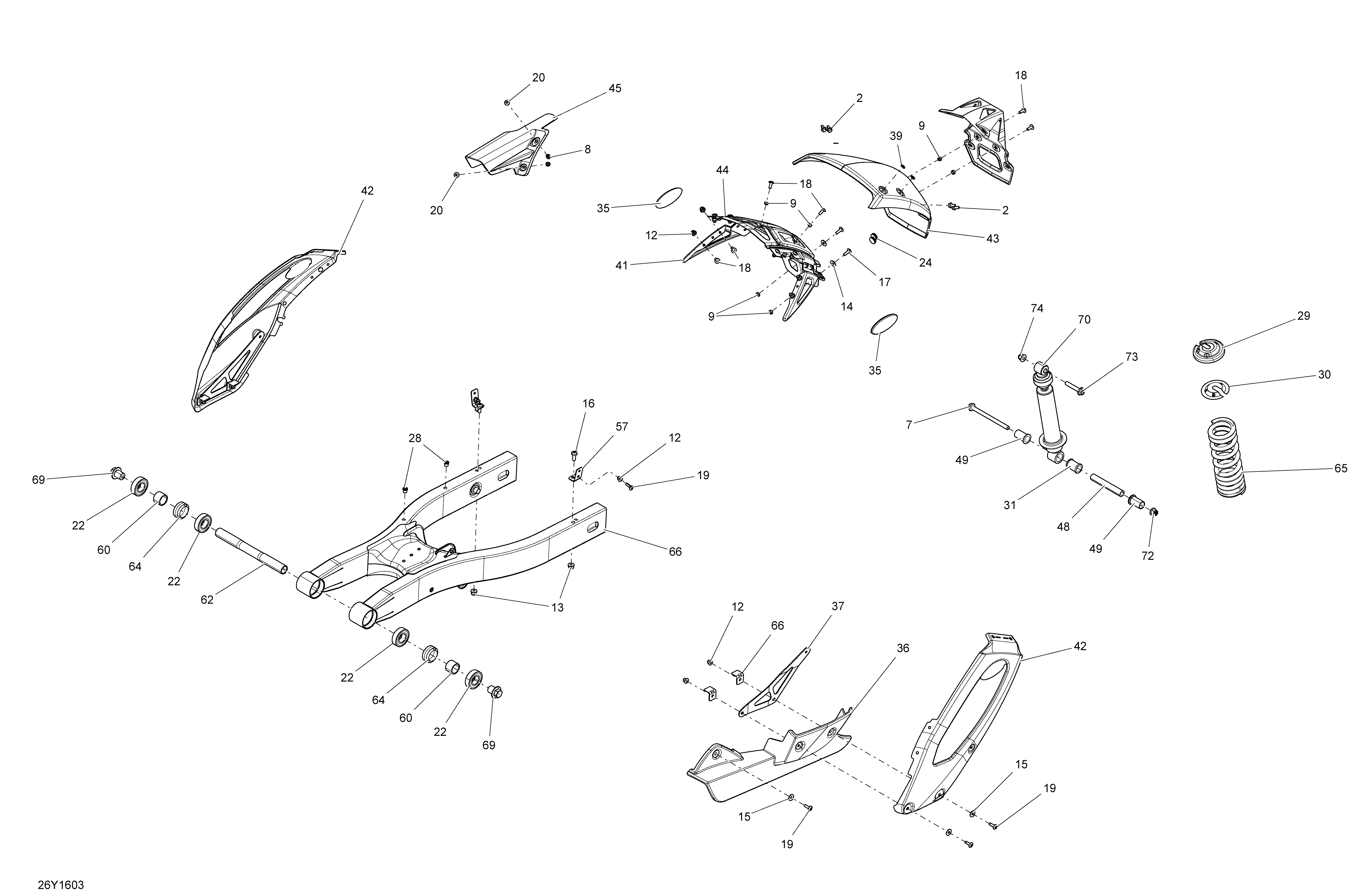

08- Suspension, Rear для BRP RS - 2016
-
№АртикулНазвание
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
7230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
8232361600 Nut M6Nut M6
-
9232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15234062670 Flat Washer, StainlessFlat Washer, Stainless
-
16236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
17250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
19250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
22293350055 Ball BearingBall Bearing
-
24293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
28293450275 InsertInsert
-
29503191604 Spring StopperSpring Stopper
-
30503191605 CapCap
-
31503191609 Urethane CushionUrethane Cushion
-
35219400236 RED REAR LATERAL REFLECTORRED REAR LATERAL REFLECTOR
-
36705002092 Lower Belt GuardLower Belt Guard
-
37705002981 RH Reinforcement PlateRH Reinforcement Plate
-
37705002980 LH Reinforcement PlateLH Reinforcement Plate
-
39705003207 Plastic WasherPlastic Washer
-
41705009148 Carbon Black RH Rear Fender Reinforc.Carbon Black RH Rear Fender Reinforc.
-
41705009147 Carbon Black LH Rear Fender Reinforc.Carbon Black LH Rear Fender Reinforc.
-
42705006085 RH Rear Fender Support. Model with Package STDRH Rear Fender Support. Model with Package STD
-
42705006084 LH Rear Fender Support. Model with Package STDLH Rear Fender Support. Model with Package STD
-
42705009146 RH Support. Model with Package SRH Support. Model with Package S
-
42705009145 LH Support. Model with Package SLH Support. Model with Package S
-
43705004660 Steel Black Rear FenderSteel Black Rear Fender
-
44705006086 Rear Fender SupportRear Fender Support
-
45705007213 Upper Belt GuardUpper Belt Guard
-
48706000409 Shock Absorber ShaftShock Absorber Shaft
-
49706000410 SpacerSpacer
-
57706000895 BracketBracket
-
60706001152 SpacerSpacer
-
62706001182 Swing Arm AxleSwing Arm Axle
-
64706001366 SleeveSleeve
-
65706001701 SpringSpring
-
66706001574 Swing ArmSwing Arm
-
69706001579 Bolt M20Bolt M20
-
70706001110 Shock AbsorberShock Absorber
-
72233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
73207605554 Hex.Flanged Screw M10 X 55Hex.Flanged Screw M10 X 55
-
74233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
