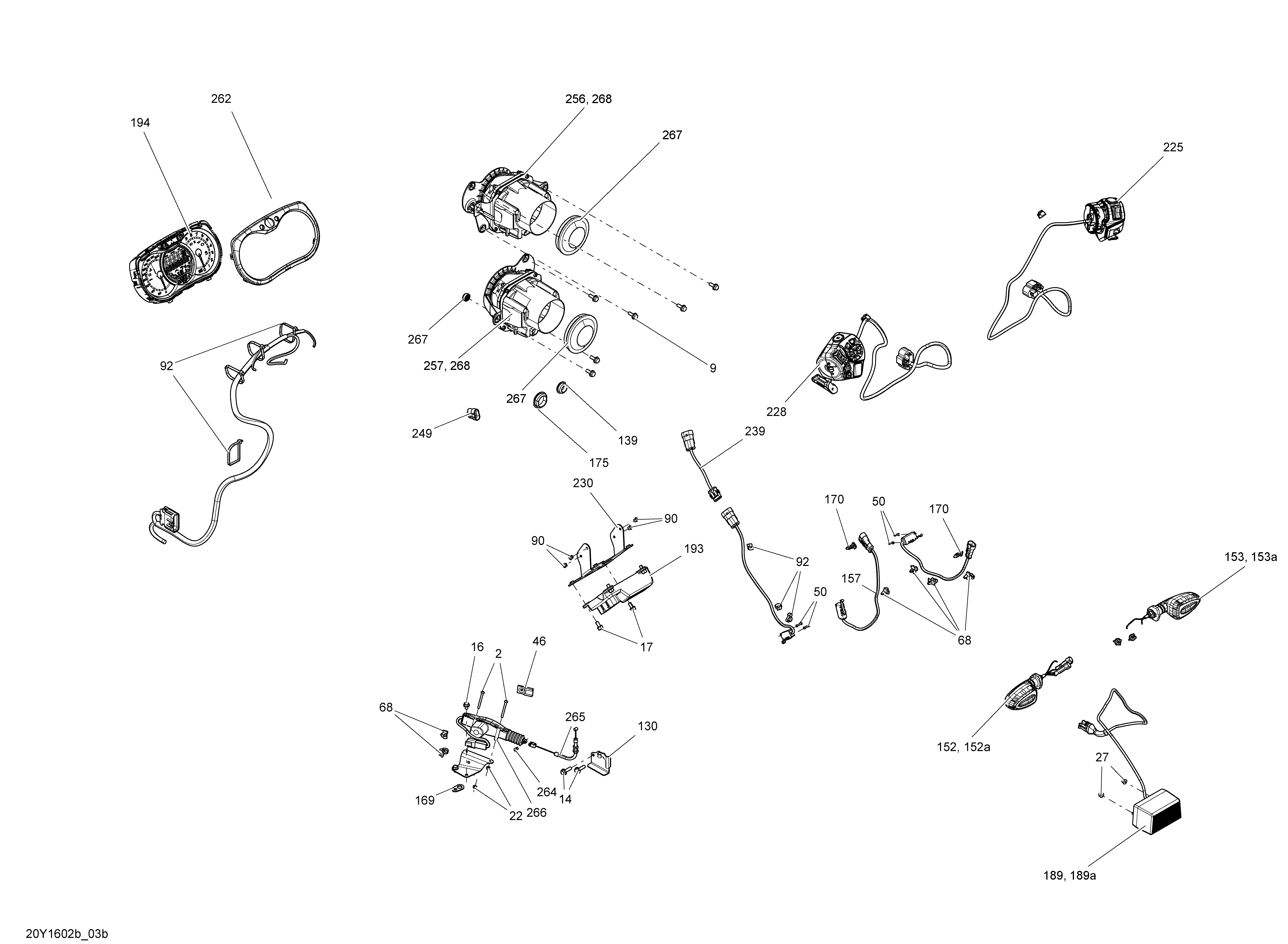

10- Electrical System - Accessories для BRP RS - 2016
-
№АртикулНазвание
-
2205444086 Socket Head Screw M4 X 40. SM5Socket Head Screw M4 X 40. SM5
-
9207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
14207662044 Hex. Flanged Screw M6 X 20. SM5Hex. Flanged Screw M6 X 20. SM5
-
16210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
17210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
22232541414 Elastic Stop Nut M4. SM5Elastic Stop Nut M4. SM5
-
27233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
46270000141 ClipClip
-
50293150150 Pop RivetPop Rivet
-
68293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
90390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
92414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130420251565 Reverse Cable Support. SM5Reverse Cable Support. SM5
-
139705003464 CapCap
-
152710001290 LH Rear Turn Signal Ass'yLH Rear Turn Signal Ass'y
-
152a219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
153710001337 RH Rear Turn Signal Ass'yRH Rear Turn Signal Ass'y
-
157710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
169710002024 Shim. SM5Shim. SM5
-
170710002033 HolderHolder
-
175710002858 Rubber PlugRubber Plug
-
189710003348 License Plate LightLicense Plate Light
-
189a415129261 BulbBulb
-
193710003750 Calibrated Module. SE5Calibrated Module. SE5
-
194710003948 Multifunction Gauge ClusterMultifunction Gauge Cluster
-
225710004582 Housing-Switch RH. RSHousing-Switch RH. RS
-
225710004583 Housing-Switch RH. RS-SHousing-Switch RH. RS-S
-
228710004161 Housing-Switch LH. RSHousing-Switch LH. RS
-
228710004584 Housing-Switch LH. RS-SHousing-Switch LH. RS-S
-
230710004629 Tcm Support. SE5Tcm Support. SE5
-
239710004750 HarnessHarness
-
249710004901 Connector PlugConnector Plug
-
256710004951 Rh Bi-Halogen Beam Ass'YRh Bi-Halogen Beam Ass'Y
-
257710004952 Lh Bi-Halogen Beam Ass'YLh Bi-Halogen Beam Ass'Y
-
262415129349 LensLens
-
264390401600 Pop Rivet 1/8''. SM5Pop Rivet 1/8''. SM5
-
265707001455 Reverse Cable. SM5Reverse Cable. SM5
-
266710003776 Actuator. SM5Actuator. SM5
-
267219400070 CapCap
-
268219400069 Halogen BulbHalogen Bulb
