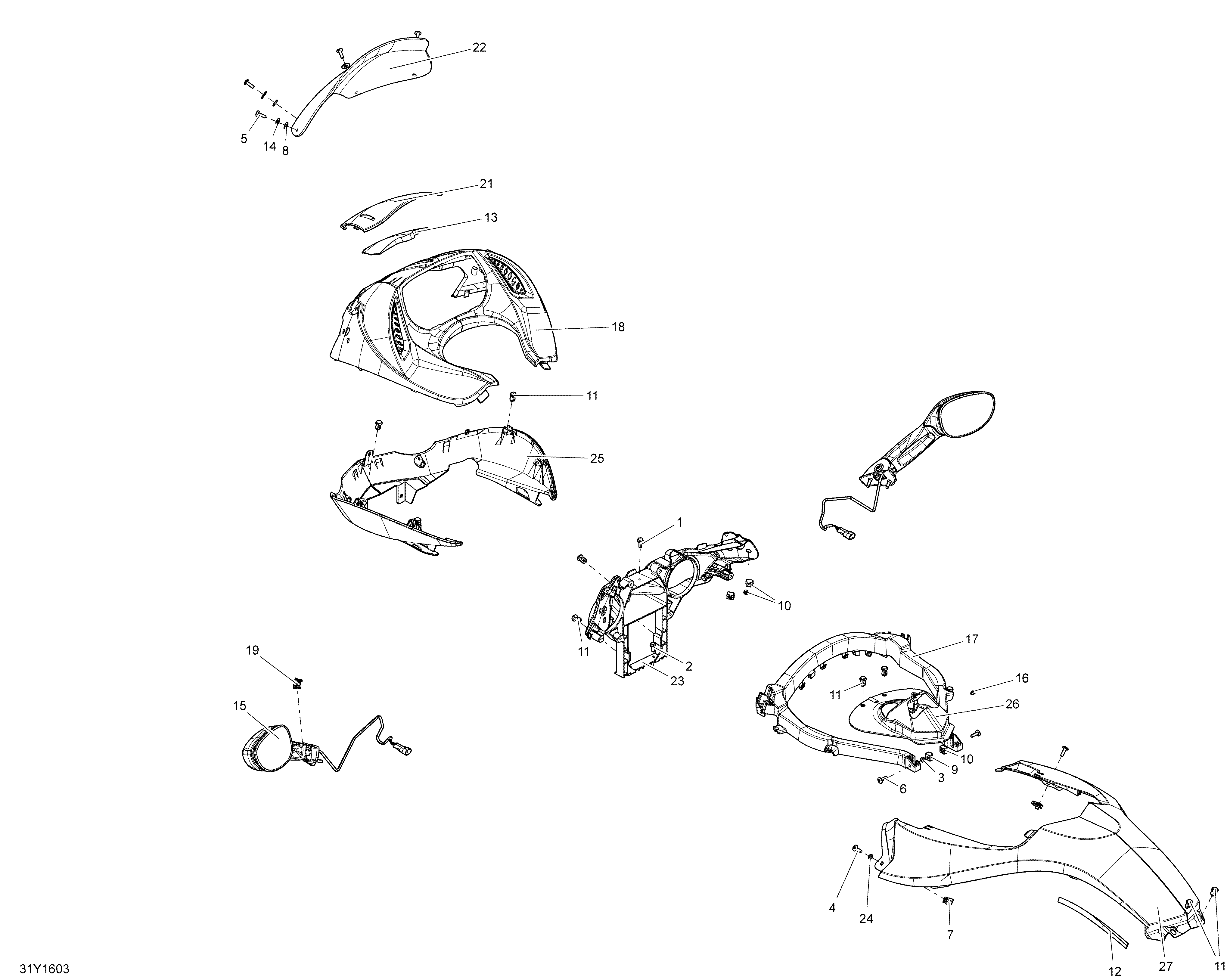

09- Body And Accessories - Console для BRP RS - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
4250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
6250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
10269500725 Nut Housing Ass'yNut Housing Ass'y
-
11293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
12293250087 Gasket, NeopreneGasket, Neoprene
-
13705009360 Guide ChartGuide Chart
-
14234062670 Flat Washer, StainlessFlat Washer, Stainless
-
15705005574 LH Mirror Ass'yLH Mirror Ass'y
-
15705005575 RH Mirror Ass'yRH Mirror Ass'y
-
16293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
17705001548 Console SupportConsole Support
-
18705002082 Upper ConsoleUpper Console
-
19705002704 LH Mirror CapLH Mirror Cap
-
19705002705 RH Mirror CapRH Mirror Cap
-
21705002712 Upper Console DeflectorUpper Console Deflector
-
22219800077 WindshieldWindshield
-
23705004795 Black Upper HeadlampBlack Upper Headlamp
-
24705003207 Plastic WasherPlastic Washer
-
25705005882 Lower ConsoleLower Console
-
26705007496 MouldingMoulding
-
27705007646 Steel Black Center PannelSteel Black Center Pannel
-
27705009959 Magma Red Center PanelMagma Red Center Panel
