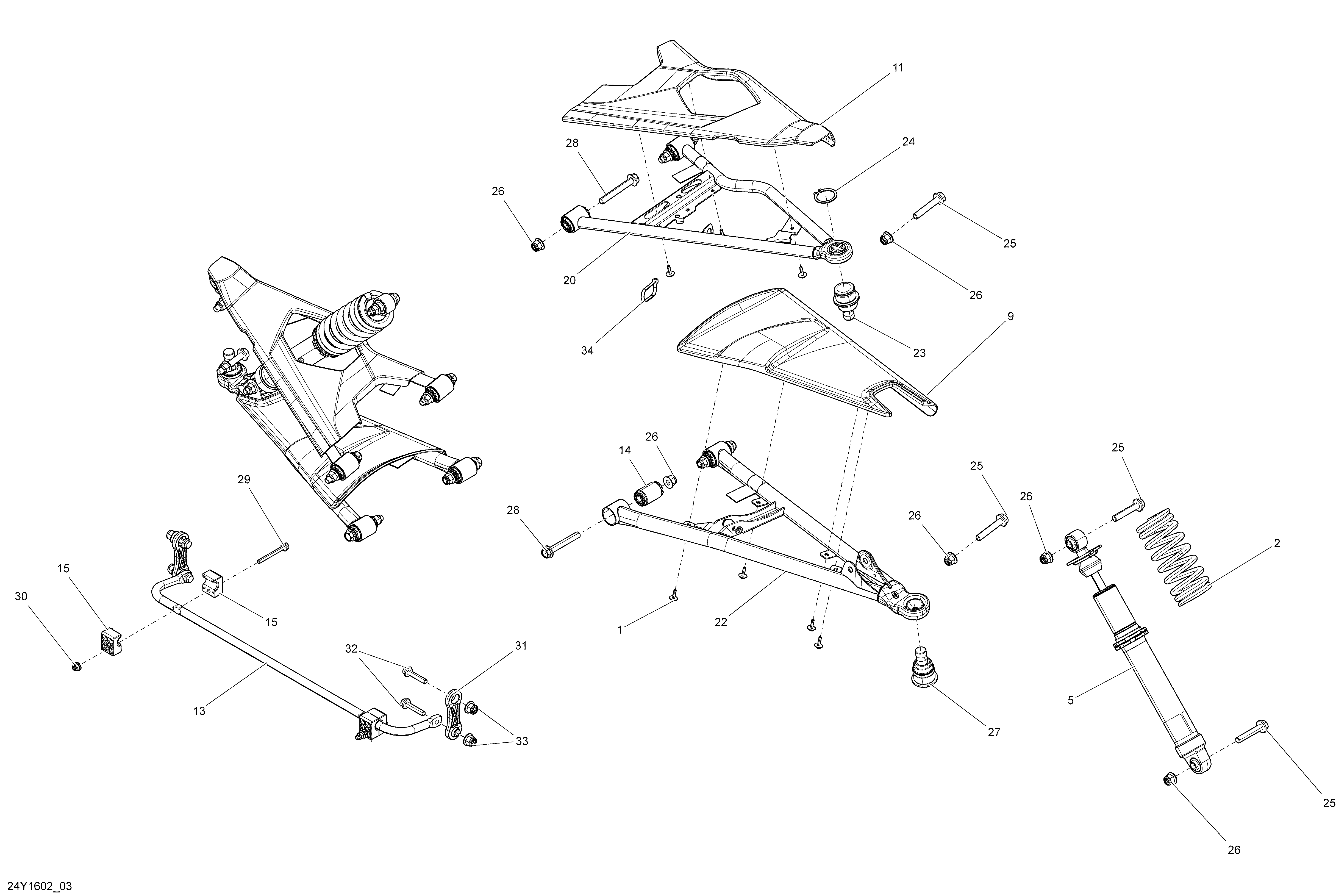

07- Suspension, Front для BRP RS - 2016
-
№АртикулНазвание
-
1250000725 Screw M4 X 16Screw M4 X 16
-
2706001108 SpringSpring
-
5706001939 ShockShock
-
9706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
9706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
11706201322 Black RH Upper Air Deflector. Model with Package STDBlack RH Upper Air Deflector. Model with Package STD
-
11706201321 Black LH Upper Air Deflector. Model with Package STDBlack LH Upper Air Deflector. Model with Package STD
-
11706201920 Steel Black RH Upper Air Deflector. Model with Package S & Color Steel BlackSteel Black RH Upper Air Deflector. Model with Package S & Color Steel Black
-
11706201919 Steel Black LH Upper Air Deflector. Model with Package S & Color Steel BlackSteel Black LH Upper Air Deflector. Model with Package S & Color Steel Black
-
11706202414 Red Deflector RH. Model with Package S & Color Magma RedRed Deflector RH. Model with Package S & Color Magma Red
-
11706202413 Red Deflector LH. Model with Package S & Color Magma RedRed Deflector LH. Model with Package S & Color Magma Red
-
13706201421 Sway BarSway Bar
-
14706201519 Suspension Arm BushingSuspension Arm Bushing
-
15706201545 Stabilizer BushingStabilizer Bushing
-
20706201736 RH Upper ArmRH Upper Arm
-
20706201735 LH Upper ArmLH Upper Arm
-
22706201738 RH Lower ArmRH Lower Arm
-
22706201737 LH Lower ArmLH Lower Arm
-
23706202507 Ball JointBall Joint
-
24293370035 CirclipCirclip
-
25207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
26233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
27706202508 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
28207607056 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
29250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
30233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31706202506 Tie RodTie Rod
-
32207684054 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
33233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
