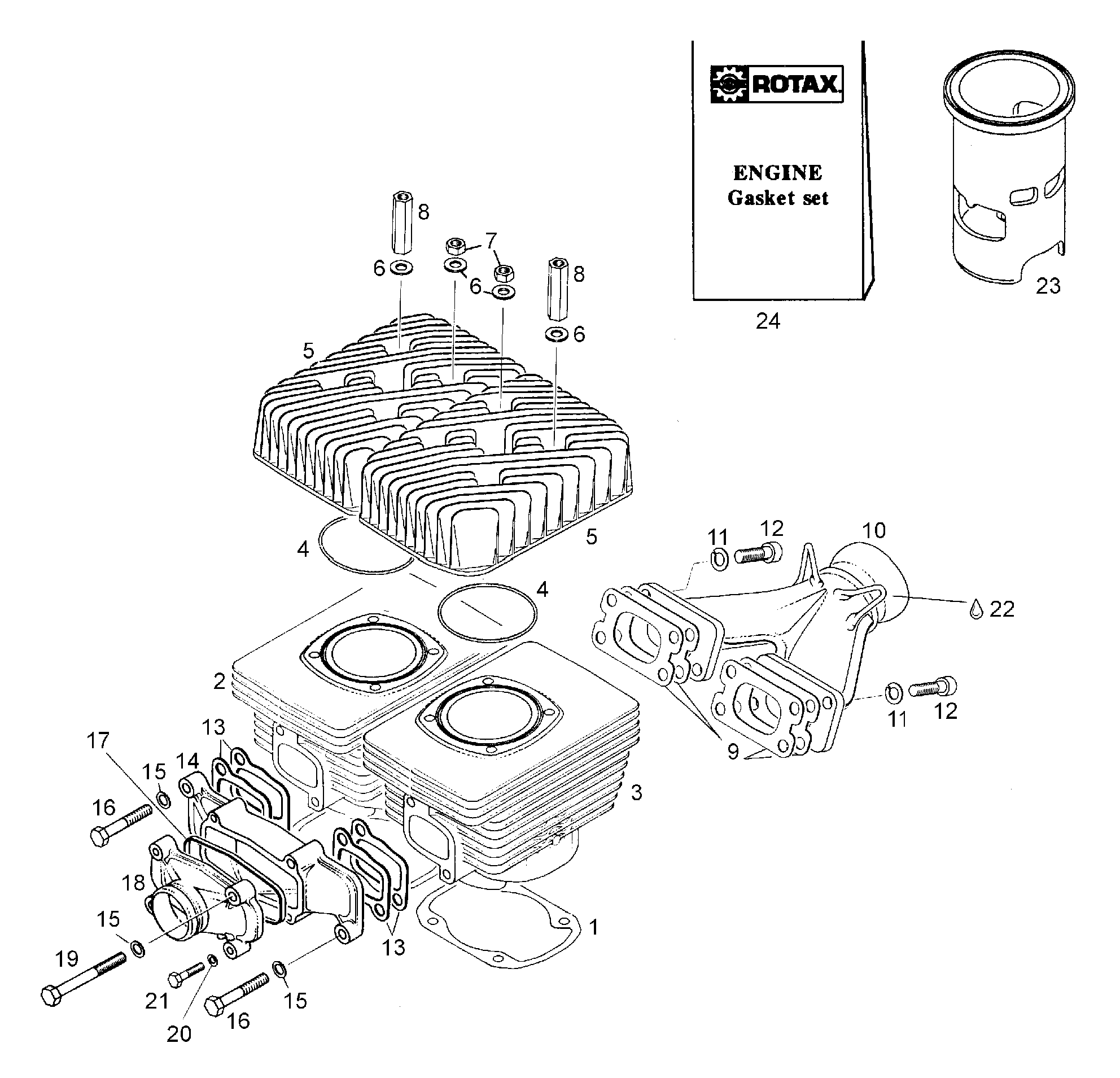

01- Cylinder для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
1420850105 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
2420923402 Cylinder,var.sideCylinder,var.side
-
3420923407 Cylinder,magn.sideCylinder,magn.side
-
4420931380 Gasket, cylinder headGasket, cylinder head
-
5420923600 Cylinder headCylinder head
-
620004 WasherWasher
-
7420242206 Nut M8Nut M8
-
8420842385 Nut M8x42Nut M8x42
-
9420850114 Gasket 1.0mmGasket 1.0mm
-
10420879459 Branch-YBranch-Y
-
1120014 Spring washerSpring washer
-
1240135 Allen screw M8x30Allen screw M8x30
-
13420831866 Gasket 1.0mmGasket 1.0mm
-
14420867435 Intake manifoldIntake manifold
-
1520014 Spring washerSpring washer
-
16420940491 Screw M8x35Screw M8x35
-
17420850190 Gasket ringGasket ring
-
18420867442 Intake coverIntake cover
-
19420841201 Screw M8x70Screw M8x70
-
2020052 Spring washerSpring washer
-
21222062565 Screw M6x25Screw M6x25
-
22420297434 LoctiteLoctite
-
23420823819 Spare cylinder sleeveSpare cylinder sleeve
-
24420994232 Gasket setGasket set
