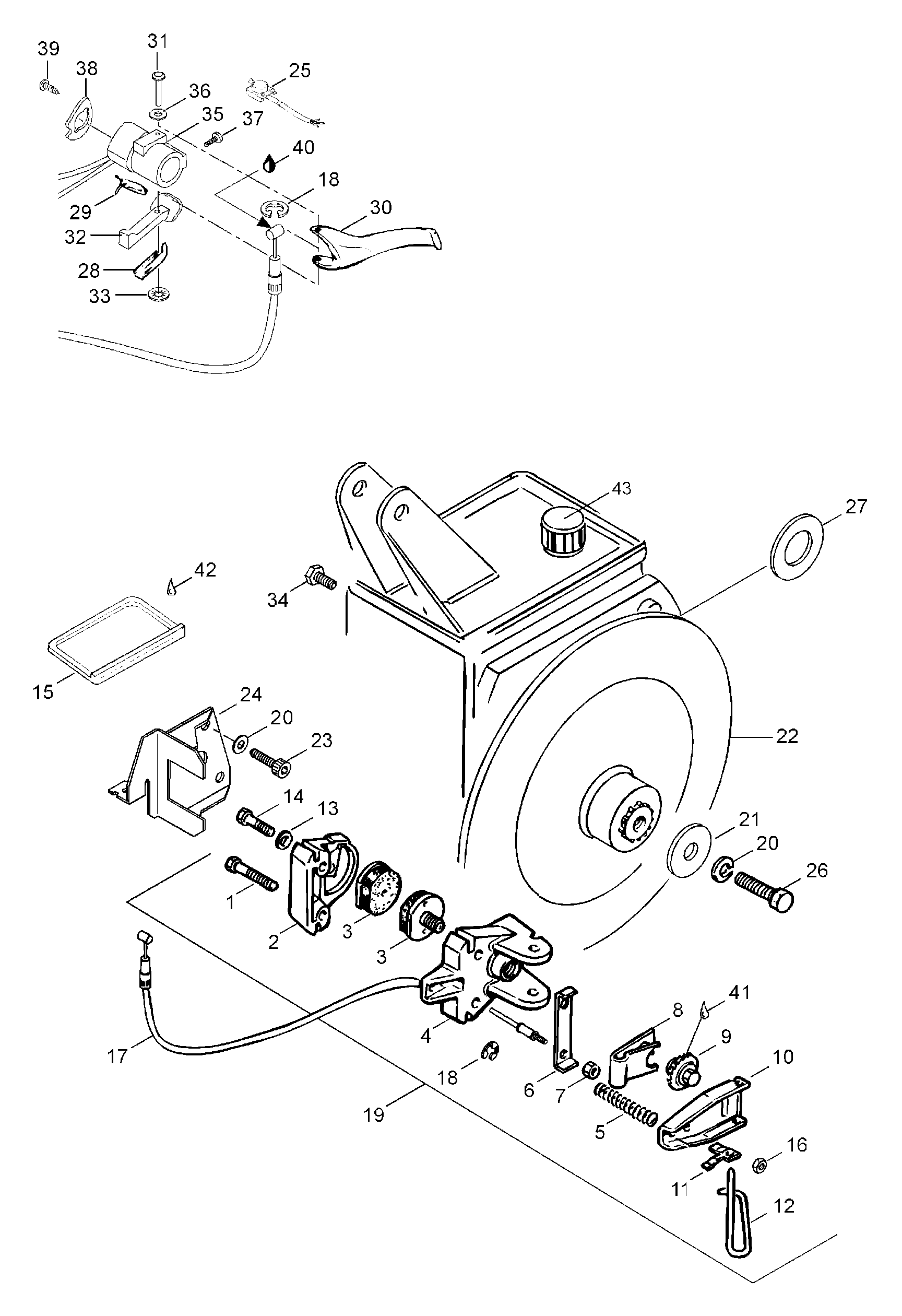

06- Brake Assy для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
1222051465 Screw M5x0.80x14Screw M5x0.80x14
-
2414466800 AnvilAnvil
-
3860700100 Brake pad setBrake pad set
-
4507026600 Mobile Brake lining hold.Mobile Brake lining hold.
-
5414460600 SpringSpring
-
6507020400 Lock tabLock tab
-
7232581414 Nut elastic M8x1.25Nut elastic M8x1.25
-
8507020200 Release springRelease spring
-
9507019600 Ratchet wheelRatchet wheel
-
10507021500 Brake leverBrake lever
-
11507009400 Rachet springRachet spring
-
12507027500 PinPin
-
13507023600 Lock tabLock tab
-
14222085065 Screw M8x1.25x50Screw M8x1.25x50
-
15572013500 SliderSlider
-
1633010 Nut M6Nut M6
-
17535657 Brake wireBrake wire
-
1831038 CirclipCirclip
-
19580251002 Brake assyBrake assy
-
2020014 Lock washerLock washer
-
2120010 WasherWasher
-
225340065 Brake diskBrake disk
-
2340305 Allen screw M8x20Allen screw M8x20
-
245340079 Brake supportBrake support
-
25415085800 Dimmer switchDimmer switch
-
2640036 Screw M8x20Screw M8x20
-
2731013 Support washerSupport washer
-
28517229300 SpringSpring
-
29415085700 Brake light switchBrake light switch
-
30572025700 Brake handleBrake handle
-
31517229400 PinPin
-
32572025200 Brake leverBrake lever
-
33389804300 Push nutPush nut
-
3440035 Screw M8x16Screw M8x16
-
3524034 Brake handle housingBrake handle housing
-
36414729400 Lock washerLock washer
-
37414440800 ScrewScrew
-
38572086600 PlatePlate
-
39414473200 Self tapping screwSelf tapping screw
-
40413701700 Dielectric grease, 3ozDielectric grease, 3oz
-
41413701000 Loctite 767, 12ozLoctite 767, 12oz
-
42413706100 Lithium grease, 400 gLithium grease, 400 g
-
4333025 PluggPlugg
