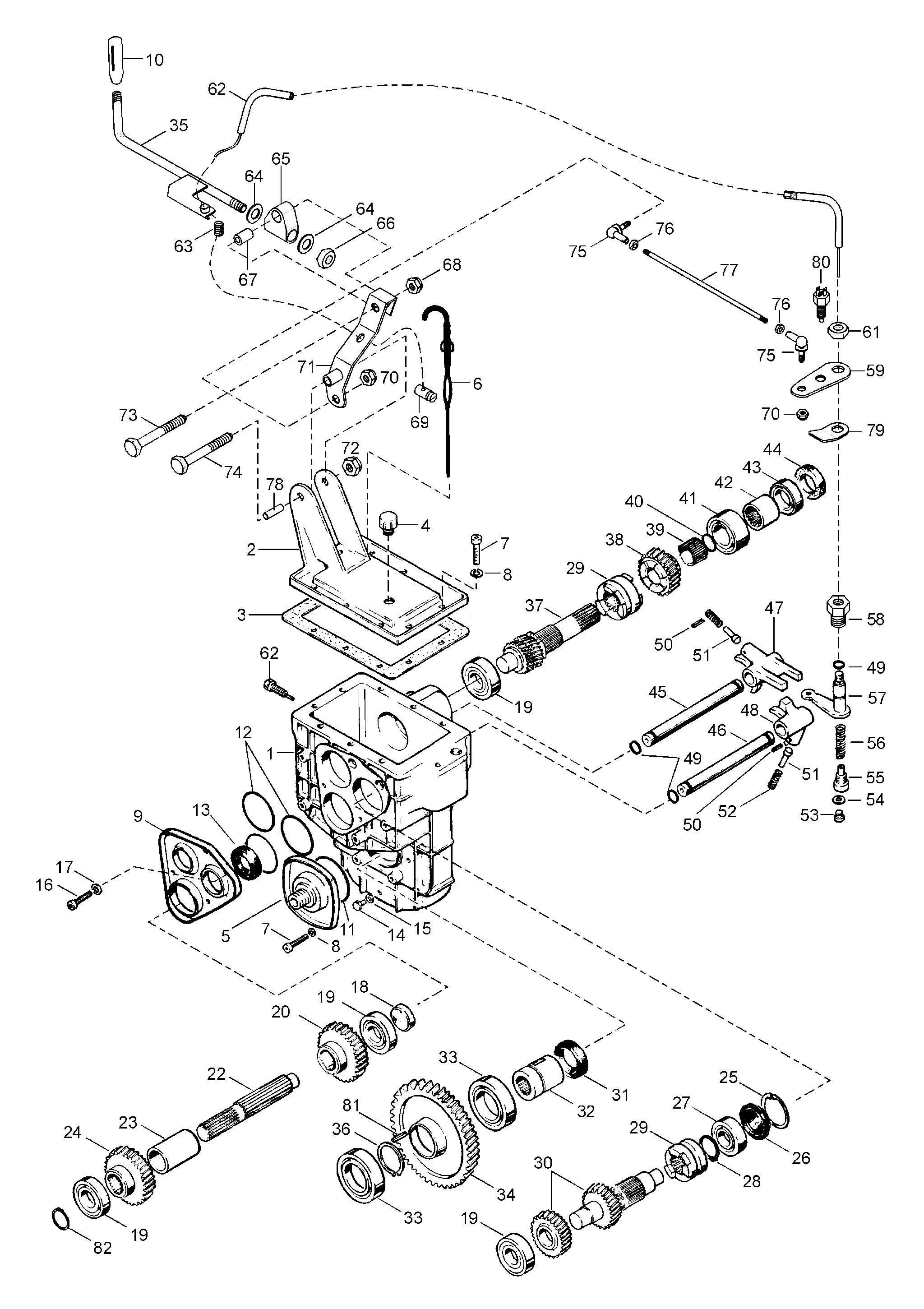

05- Gearbox для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
870146032 Gear box, fastGear box, fast
-
1875146257 HousingHousing
-
2875146812 CoverCover
-
3875146411 GasketGasket
-
433025 PlugPlug
-
5875146416 Cover,lowerCover,lower
-
6875146814 DipstickDipstick
-
740052 ScrewScrew
-
820003 Spring washerSpring washer
-
9875146050 Side coverSide cover
-
1028247 HandleHandle
-
11614606825 O-ringO-ring
-
12614605225 O-ringO-ring
-
13614102040 Oil sealOil seal
-
1440114 ScrewScrew
-
15615580711 Gasket ringGasket ring
-
1640332 ScrewScrew
-
1720014 Spring washerSpring washer
-
18640016025 PlugPlug
-
196304 BearingBearing
-
20875146042 Gear Z-32Gear Z-32
-
22875147162 ShaftShaft
-
23875146112 SleeveSleeve
-
24875146043 Gear Z-36Gear Z-36
-
25617330047 CirclipCirclip
-
26875146348 PlugPlug
-
276204RS BearingBearing
-
28617450028 CirclipCirclip
-
29875156120 Clutch wheelClutch wheel
-
30875146049 Back shaft assyBack shaft assy
-
312652101 Oil sealOil seal
-
32875136962 Shaft, lowerShaft, lower
-
336008 BearingBearing
-
34875155048 Wheel,lower Z-64Wheel,lower Z-64
-
355340093 Gearbox leverGearbox lever
-
36617300040 CirclipCirclip
-
37875146034 Clutch shaft assyClutch shaft assy
-
38875146037 Gear Z-27Gear Z-27
-
39611002529 Needle bearingNeedle bearing
-
40617450025 CirclipCirclip
-
413205 Bearing, dublexBearing, dublex
-
42875138073 Clutch sleeveClutch sleeve
-
436005 BearingBearing
-
44614102542 Oil sealOil seal
-
45875146051 Shift fork shaftShift fork shaft
-
46875146052 Back shaft,shift forkBack shaft,shift fork
-
47875146018 Shift forkShift fork
-
48875146019 Shift fork, back shaftShift fork, back shaft
-
49614601024 O-ringO-ring
-
50043030 Spring cotterSpring cotter
-
51875119655 Lock pinLock pin
-
52875128952 SpringSpring
-
53640046008 PlugPlug
-
54617300016 CirclipCirclip
-
55875146099 HolderHolder
-
56875146111 SpringSpring
-
57875146095 ArmArm
-
58875146100 Screw-in sleeveScrew-in sleeve
-
59875156004 Arm, upperArm, upper
-
61505611402 NutNut
-
62534705 Gear wireGear wire
-
63541747 SpringSpring
-
6431014 WasherWasher
-
65548799 Glide pieceGlide piece
-
6633012 Nut elastic M10Nut elastic M10
-
675440098 SleeveSleeve
-
6833010 Nut elastic M6Nut elastic M6
-
6924011 Wire lockWire lock
-
7033011 Nut elastic M8Nut elastic M8
-
715340094 Gear change leverGear change lever
-
7340003 Screw M6x35Screw M6x35
-
7440010 Screw M8x55Screw M8x55
-
7531064 JointJoint
-
7633003 NutNut
-
77543987 TierodTierod
-
78543995 SleeveSleeve
-
79875156003 BracketBracket
-
8042004 Switch connectorSwitch connector
-
81603345070 KeyKey
-
82617300020 CirclipCirclip
