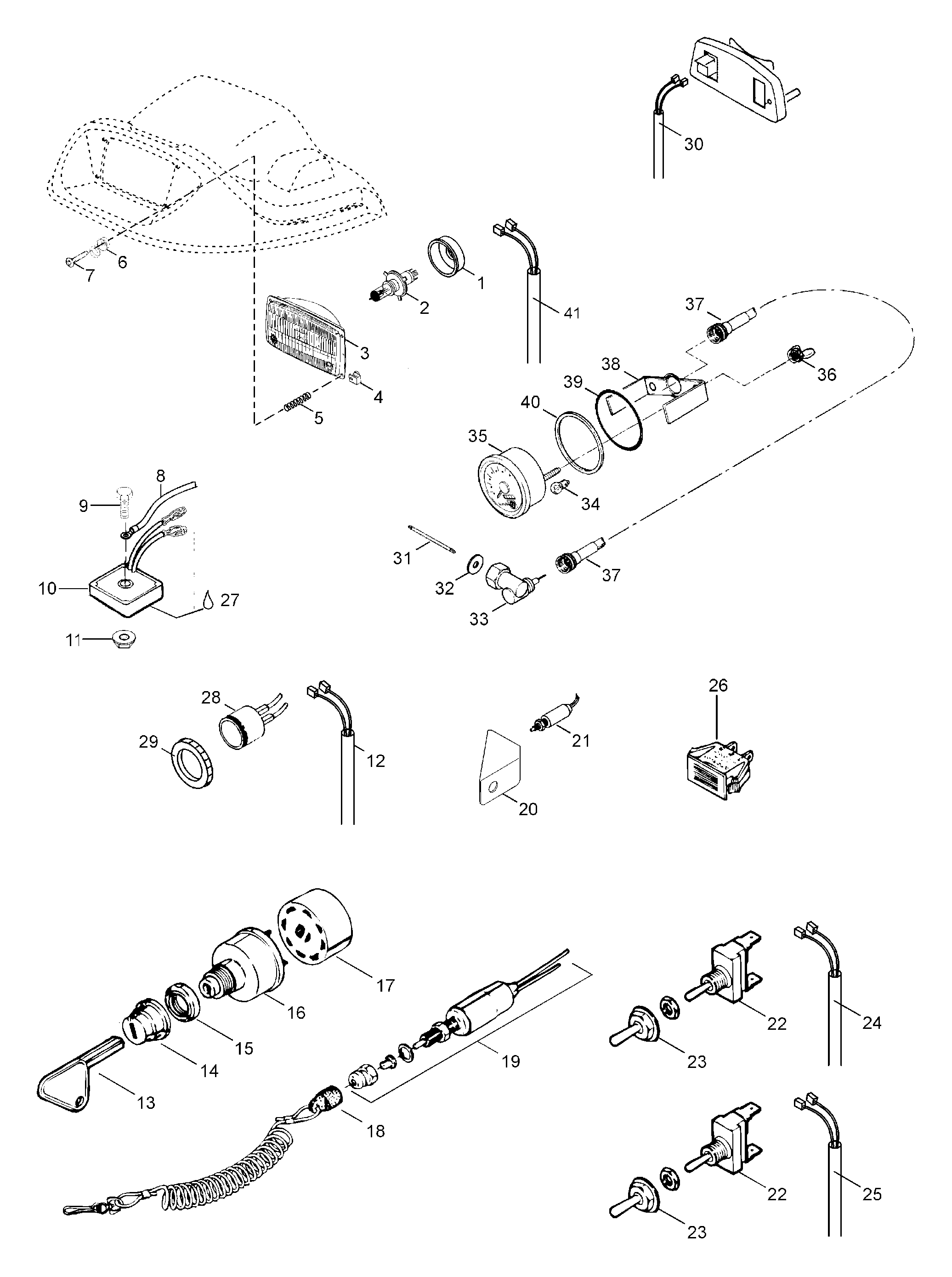

10- Electric для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
1410607100 Protector capProtector cap
-
2410503700 Halogen bulpHalogen bulp
-
3410606700 HeadlampHeadlamp
-
4572378700 NutNut
-
5541747 SpringSpring
-
6282001 CoverCover
-
7732603002 Screw M4x40Screw M4x40
-
8549265 Ground cableGround cable
-
940003 Screw M6x35Screw M6x35
-
10410110600 Voltage regulatorVoltage regulator
-
1133200 Nut M6Nut M6
-
125442124 Wire for back up alarmWire for back up alarm
-
13414991700 KeyKey
-
14570013700 BootBoot
-
15410112100 NutNut
-
1642019 Ignition switchIgnition switch
-
17572150700 Ignition switch blockIgnition switch block
-
185441353 Switch brake assy. Includes items 18 thru 19Switch brake assy. Includes items 18 thru 19
-
184299163 Switch cupSwitch cup
-
19544957 Switch brakeSwitch brake
-
22410110700 SwitchSwitch
-
23570013900 Rubber coverRubber cover
-
245244738 Wiring harnessWiring harness
-
255441888 Switch wireSwitch wire
-
26410109500 Pilot lamp (oil)Pilot lamp (oil)
-
27413706400 Lithium greaseLithium grease
-
28414792102 Back up alarmBack up alarm
-
29414805101 Back up alarm nutBack up alarm nut
-
305442762 Wire for tail lampWire for tail lamp
-
3145009 Square pin, L=85mmSquare pin, L=85mm
-
3220044 GasketGasket
-
3335002 Angle driveAngle drive
-
34410504200 Intrument bulpIntrument bulp
-
3535018 SpeedometerSpeedometer
-
3633009 Nut elastic M5Nut elastic M5
-
3745008 Speedometer cableSpeedometer cable
-
38414806500 HolderHolder
-
39517258500 WasherWasher
-
40414807100 O-ringO-ring
-
415342764 WireWire
