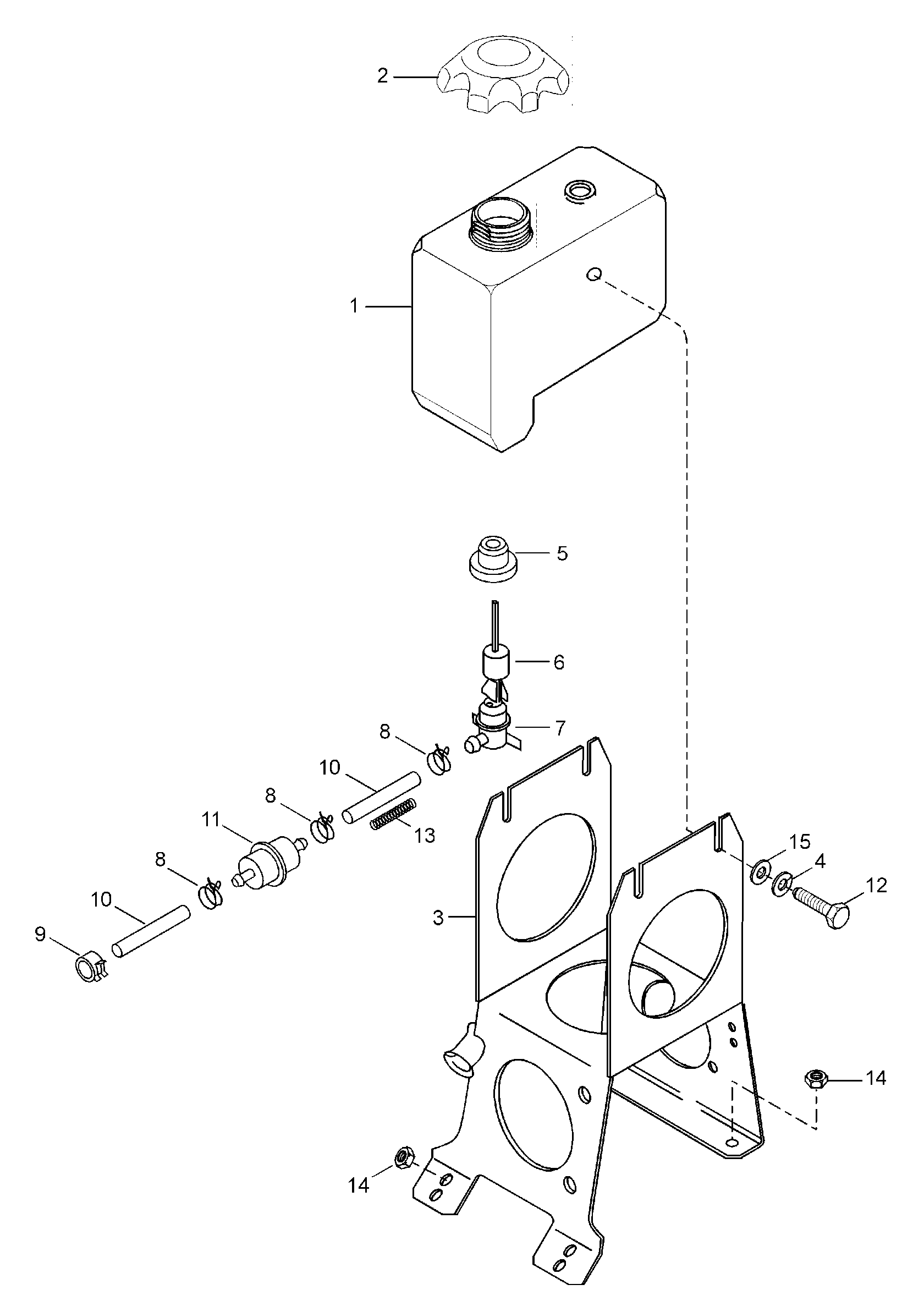

01- Oil Tank для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
1572091600 Oil tank, 2,5 lOil tank, 2,5 l
-
2572071000 CapCap
-
35344677 SupportSupport
-
420052 Lock washerLock washer
-
5570023000 GrommetGrommet
-
6414681900 Float for sensorFloat for sensor
-
7414681800 Oil level sensorOil level sensor
-
827119F Spring clipSpring clip
-
9414420700 Spring clipSpring clip
-
1039046 Hose, 11/8 mHose, 11/8 m
-
11414536500 Oil filterOil filter
-
1240114 Screw M6x10Screw M6x10
-
1433200 Nut M6Nut M6
-
1520009 WasherWasher
