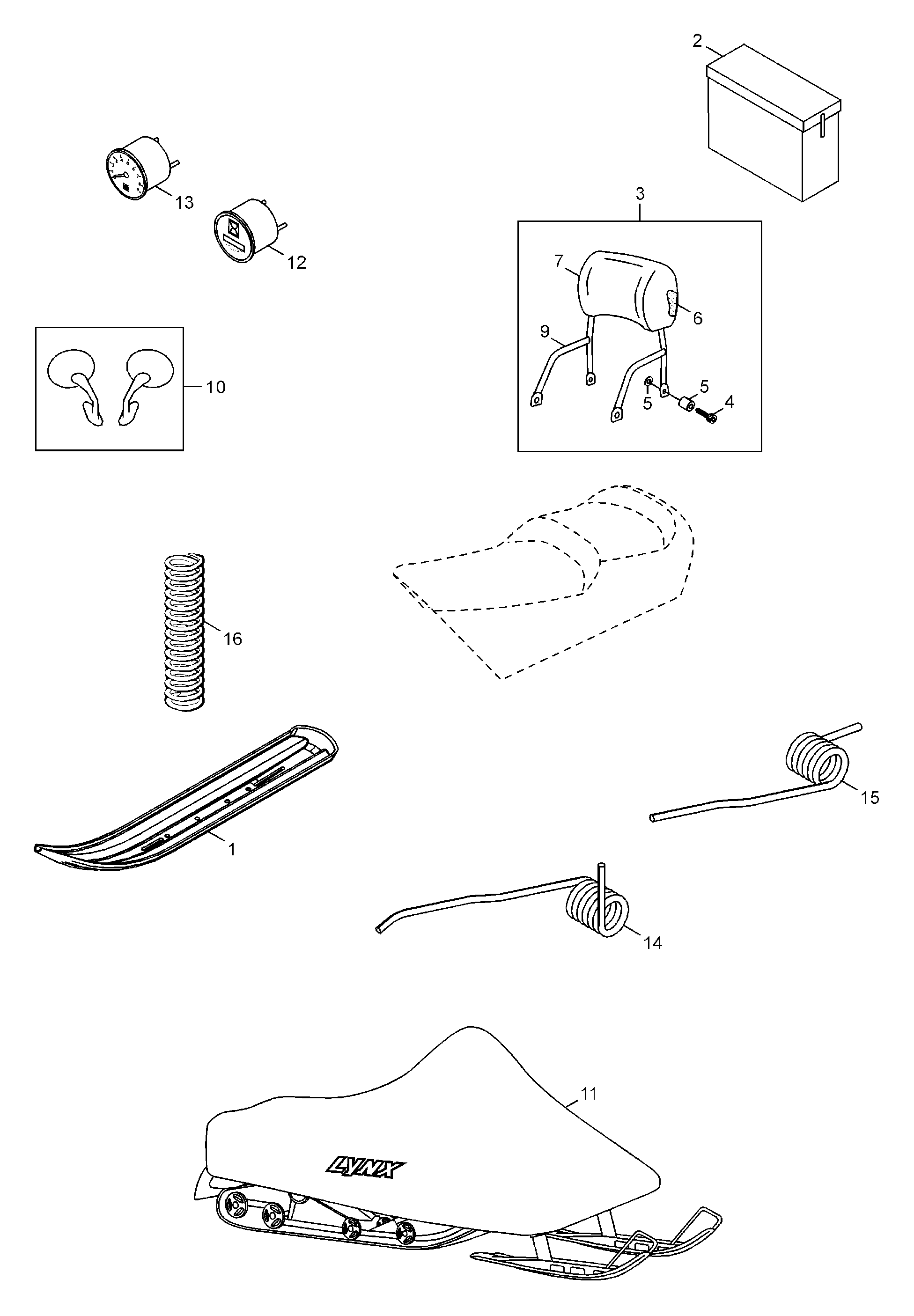

11- Accessories для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
15144415 Skiliner, wideSkiliner, wide
-
27820085 Goods boxGoods box
-
35342097 Seat back kit (pos.4-9)Seat back kit (pos.4-9)
-
440135 Allen screw M8x30Allen screw M8x30
-
55440665 SleeveSleeve
-
6539399 FoamFoam
-
75340917 Backrest coverBackrest cover
-
820060 WasherWasher
-
95342100 Backrest weldedBackrest welded
-
10211216501 Mirror assyMirror assy
-
117820062 CoverCover
-
125343943 Kit meter hour assyKit meter hour assy
-
13538164 Tachometer assyTachometer assy
-
14538798 Spring R.H. d=9Spring R.H. d=9
-
14538797 Spring L.H. d=9Spring L.H. d=9
-
14529896 Spring R.H. d=10Spring R.H. d=10
-
14529895 Spring L.H. d=10Spring L.H. d=10
-
155342228 Spring R.H. d=11Spring R.H. d=11
-
155342229 Spring L.H. d=11Spring L.H. d=11
-
16414803000 Spring, 11,4 N/mmSpring, 11,4 N/mm
-
165240896 Spring, 18 N/mmSpring, 18 N/mm
-
16529756 Spring, 22 N/mmSpring, 22 N/mm
