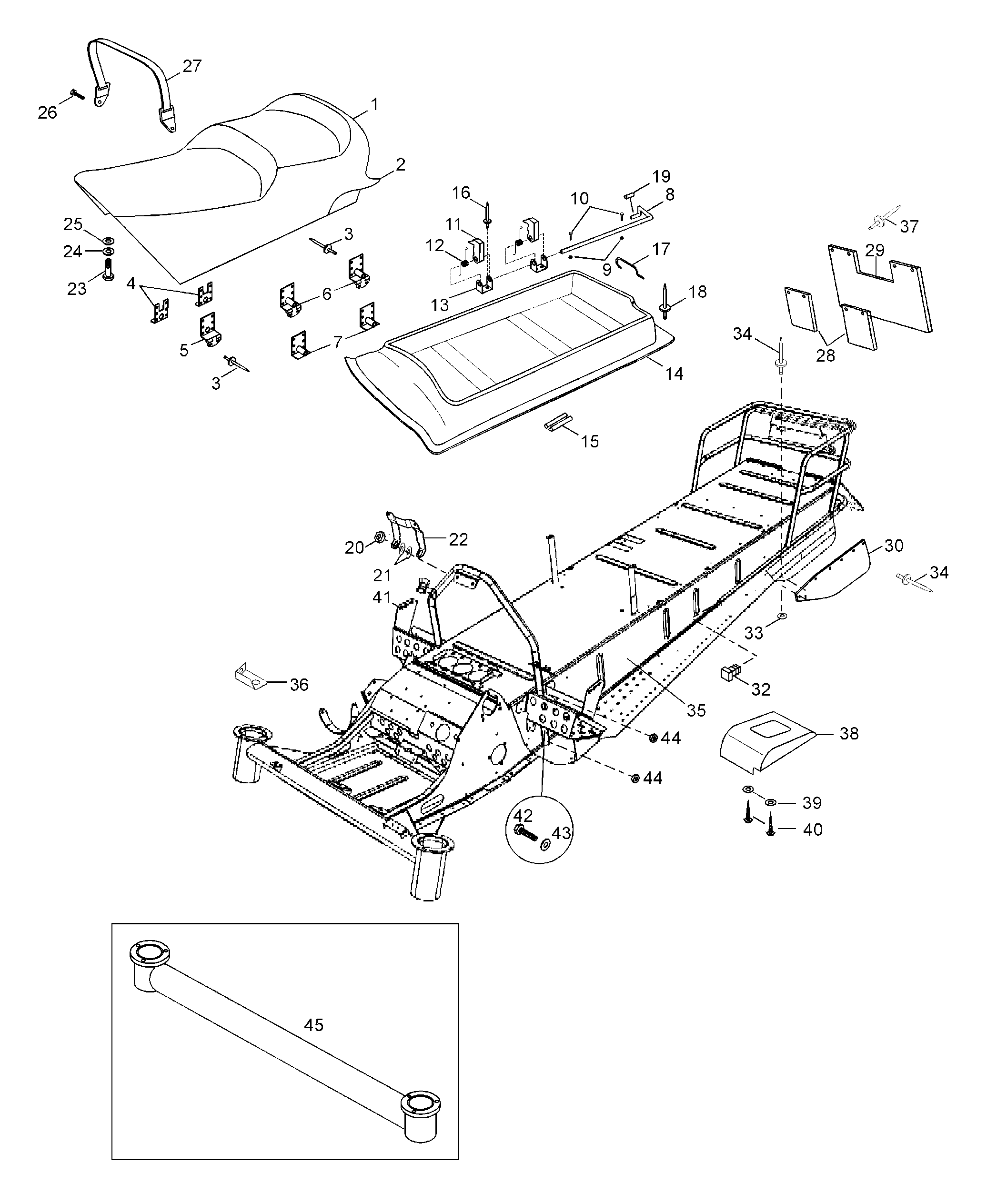

09- Frame для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
15244704 SeatSeat
-
25344705 Seat CoverSeat Cover
-
336043 RivetRivet
-
45441278 Locking plateLocking plate
-
55441918 HingeHinge
-
65441279 Hinge weld.Hinge weld.
-
8539875 Locking leverLocking lever
-
933008 Nut elastic M4Nut elastic M4
-
1040144 Allen screw M4x16Allen screw M4x16
-
11549605 Locking deviceLocking device
-
125441847 SpringSpring
-
135441362 SupportSupport
-
145242664 Seat baseSeat base
-
155442641 SealSeal
-
1636083 RivetRivet
-
175441849 StopperStopper
-
1836036 RivetRivet
-
1928019 PluggPlugg
-
2033201 Nut elastic M8Nut elastic M8
-
2120004 WasherWasher
-
225340085 SupportSupport
-
2640305 Allen screw M8x20Allen screw M8x20
-
275341468 Strap for seatStrap for seat
-
28537576 SupportSupport
-
295344645 Snow guardSnow guard
-
305344301 Snow guard, sideSnow guard, side
-
3228232 PluggPlugg
-
3320008 WasherWasher
-
3436005 RivetRivet
-
355144189 FrameFrame
-
36549954 Support L.H.Support L.H.
-
36549952 Support R.H.Support R.H.
-
3736037 RivetRivet
-
38414975400 Footrest L.H.Footrest L.H.
-
38414975300 Footrest R.H.Footrest R.H.
-
39224061121 WasherWasher
-
4040177 ScrewScrew
-
415244678 Main Tube WeldMain Tube Weld
-
4240002 Screw M6x40Screw M6x40
-
4320003 WasherWasher
-
4433200 Nut M6Nut M6
-
455243953 Face barFace bar
