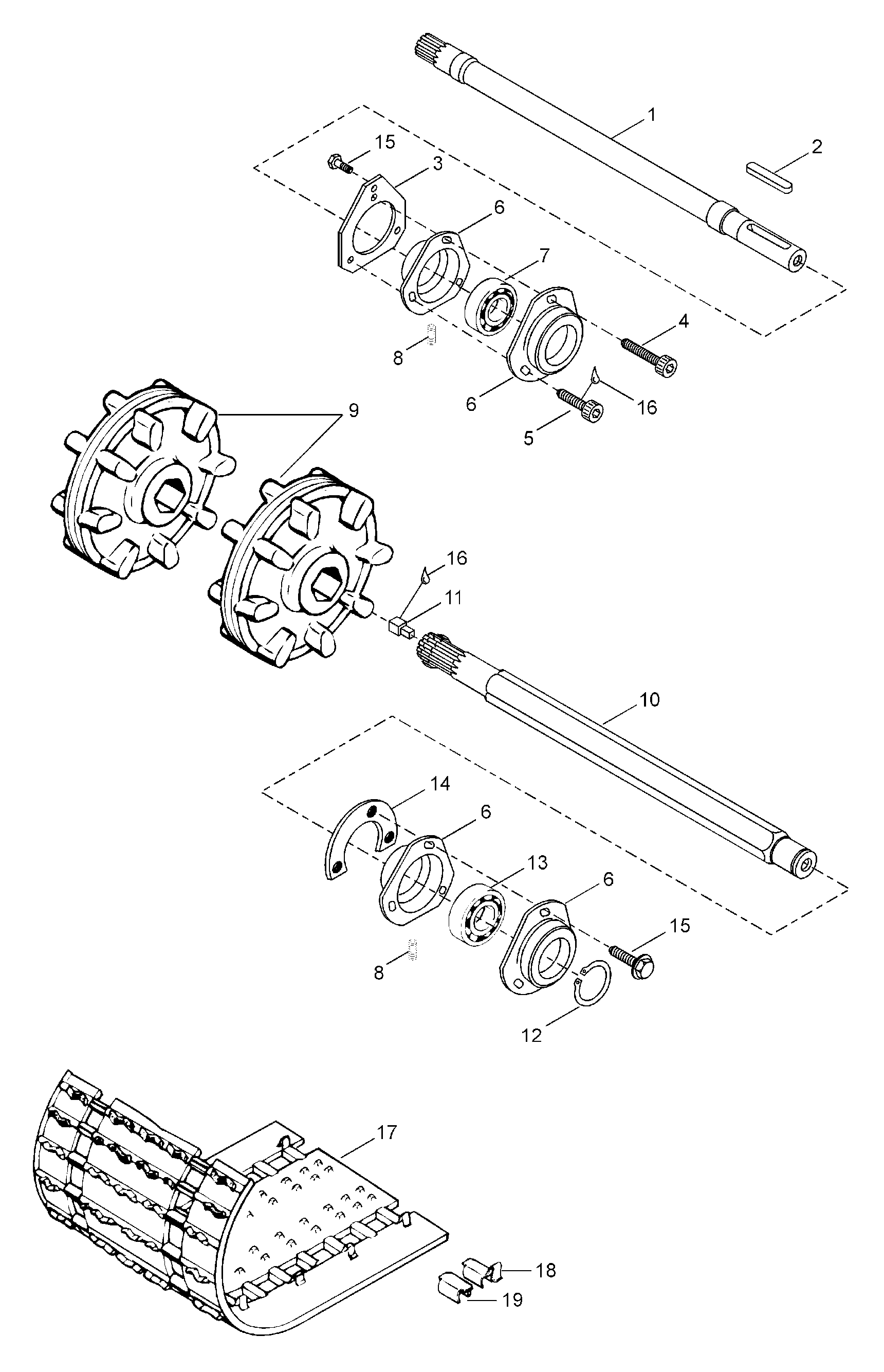

05- Drive Shaft для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
1539990 CountershaftCountershaft
-
2418763 KeyKey
-
35340072 Shaft offset pieceShaft offset piece
-
440351 Allen screw M8x25Allen screw M8x25
-
540344 Screw M8x25Screw M8x25
-
6534430 Bearing housing assyBearing housing assy
-
731B516 BearingBearing
-
810531 ScrewScrew
-
95341002 Drive shaft assy. Includes items 9 thru 11Drive shaft assy. Includes items 9 thru 11
-
9539750 Sprocket 8-toothSprocket 8-tooth
-
105340346 Drive shaftDrive shaft
-
11542013 Speedo drive insertSpeedo drive insert
-
1231001 CirclipCirclip
-
1331UC205 BearingBearing
-
14546421 Thrust ringThrust ring
-
1540337 Screw M8x16Screw M8x16
-
16413707400 Loctite 271, 10ccLoctite 271, 10cc
-
1713057 Track assy. Includes items 17 thru 19Track assy. Includes items 17 thru 19
-
185318323 Cleat guideCleat guide
-
195318322 Slide guideSlide guide
