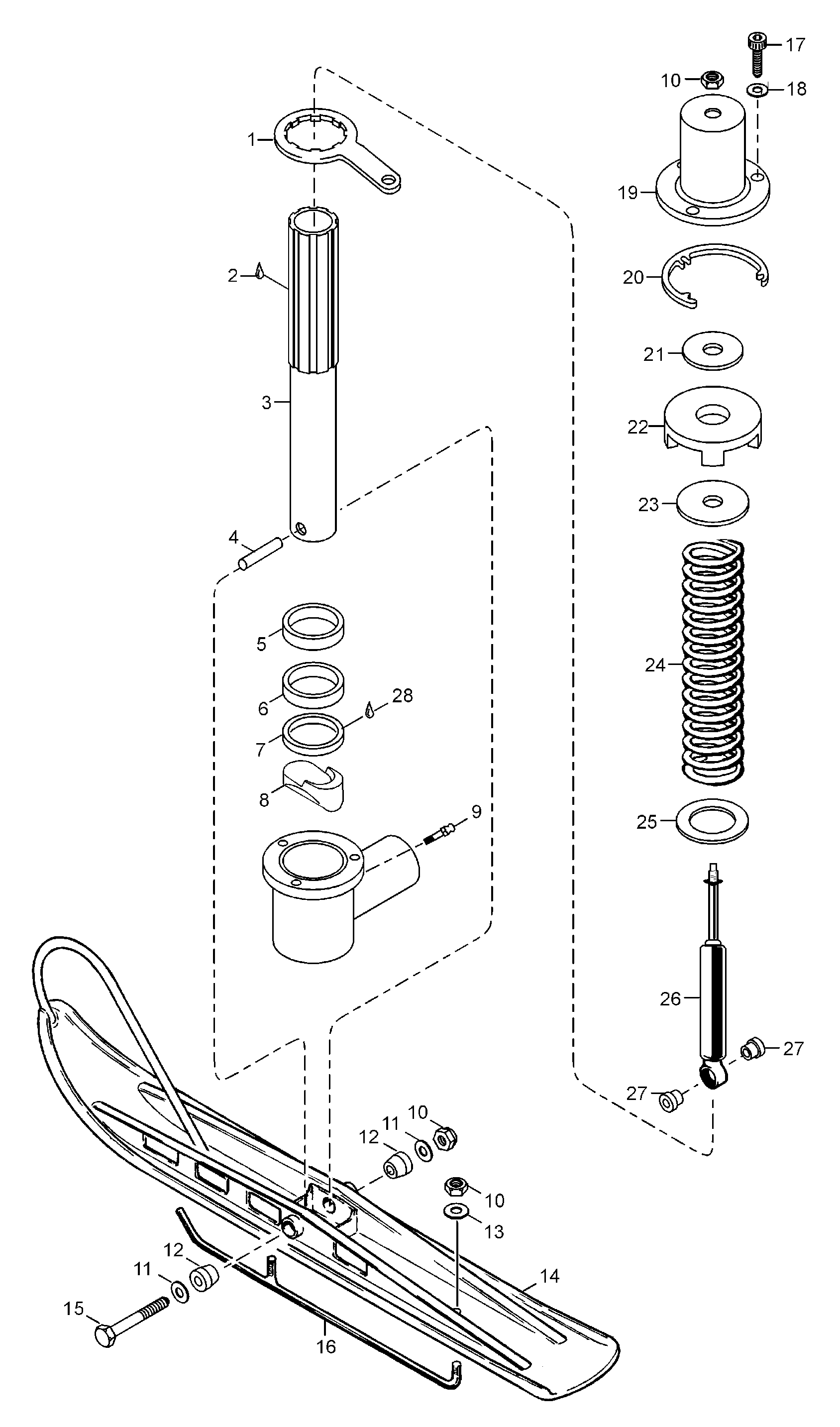

08- Front Suspension для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
15340383 Reversing armReversing arm
-
2413711500 Lithium grease 400 gLithium grease 400 g
-
35243952 SlideSlide
-
4549716 SleeveSleeve
-
5414803100 Bushing, upperBushing, upper
-
6414803200 Bushing, lowerBushing, lower
-
7316373 Oil sealOil seal
-
85341750 Damper, skiDamper, ski
-
934019 Grease nippleGrease nipple
-
1033012 Nut elastic M10Nut elastic M10
-
1120012 WasherWasher
-
12547543 RubberRubber
-
1320005 WasherWasher
-
145241710 SkiSki
-
1540354 Screw M10x125Screw M10x125
-
165344021 Slide rail,hard metalSlide rail,hard metal
-
1740305 Allen screw M8x20Allen screw M8x20
-
1820014 Lock washerLock washer
-
195240019 CoverCover
-
20503145600 Spacer plateSpacer plate
-
215440399 PlatePlate
-
22570025800 Damper,rubberDamper,rubber
-
23549492 Holder plateHolder plate
-
245240897 Spring 16 N/mmSpring 16 N/mm
-
25549493 WasherWasher
-
26414803600 Shock absorberShock absorber
-
27572034500 SleeveSleeve
-
28420899785 Loctite 221, 10ccLoctite 221, 10cc
