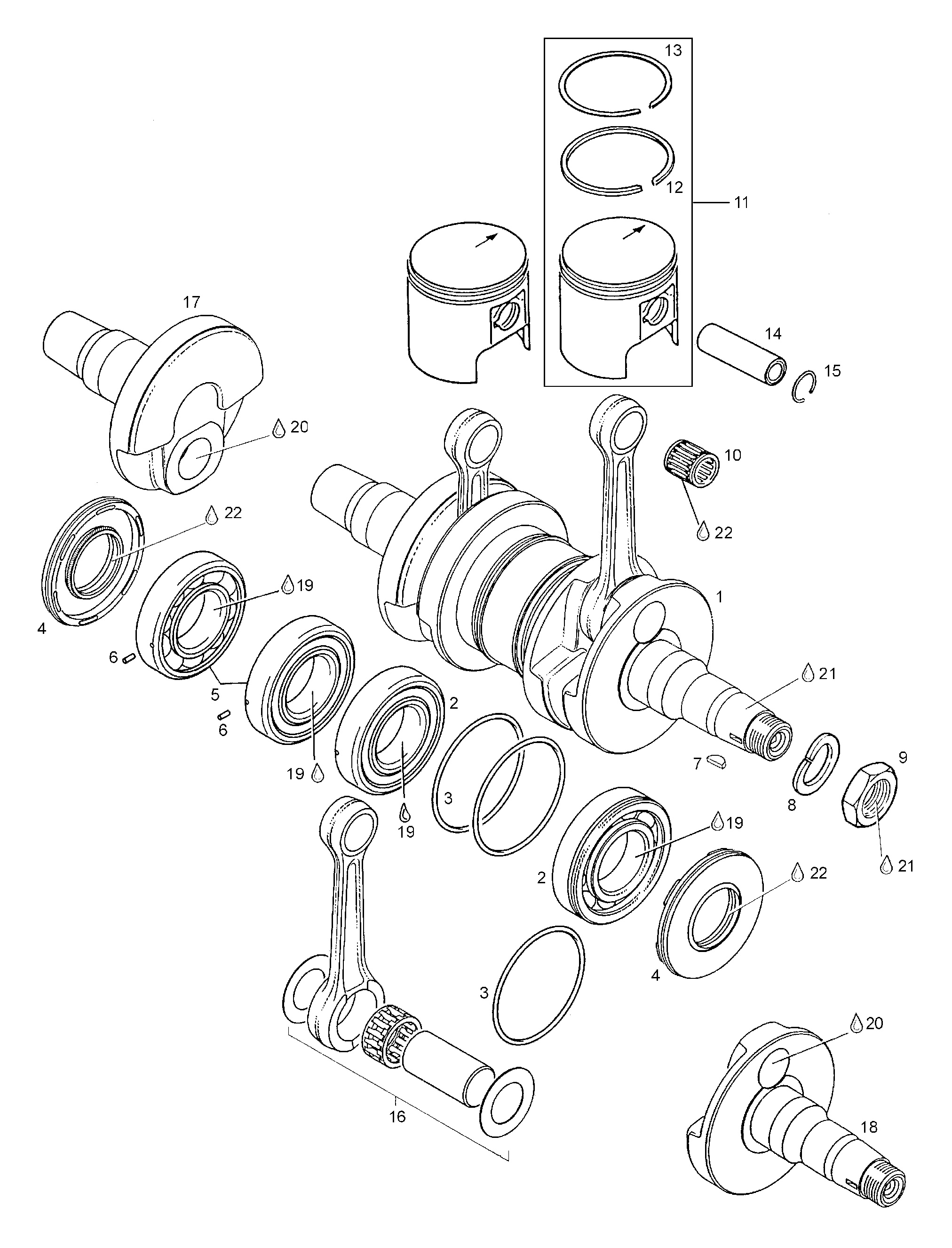

01- Crankshaft Assy для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
1420887247 Crankshaft assy. Includes items 1 thru 7Crankshaft assy. Includes items 1 thru 7
-
2420832570 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420831950 Oil sealOil seal
-
5420832574 B.Bearing 6207 assy. Includes items 5 thru 6B.Bearing 6207 assy. Includes items 5 thru 6
-
6420929972 Drive PinDrive Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock WasherLock Washer
-
9420842230 NutNut
-
10420932904 Needle bearingNeedle bearing
-
11420887470 Piston assy, 61.94mmPiston assy, 61.94mm
-
11420887471 Piston assy, 62.19mmPiston assy, 62.19mm
-
11420887472 Piston assy, 62.44mmPiston assy, 62.44mm
-
12420915890 Piston ring 62 mmPiston ring 62 mm
-
12420915891 Piston ring 62.25 mmPiston ring 62.25 mm
-
12420915892 Piston ring 62.50 mmPiston ring 62.50 mm
-
13420215210 Piston ring 62.0 mmPiston ring 62.0 mm
-
13420215211 Piston ring 62.25 mmPiston ring 62.25 mm
-
13420215212 Piston ring 62.50 mmPiston ring 62.50 mm
-
14420916260 Piston pinPiston pin
-
15420945735 Lock ringLock ring
-
16420996334 Repair kitRepair kit
-
17420818203 Crankhalf P.T.O sideCrankhalf P.T.O side
-
18420919979 Crankhalf Mag. SideCrankhalf Mag. Side
-
19420297434 Loctite 76710, 50mlLoctite 76710, 50ml
-
20420897341 Loctite 14486, 10ccLoctite 14486, 10cc
-
21420899785 Loctite 221/violetLoctite 221/violet
