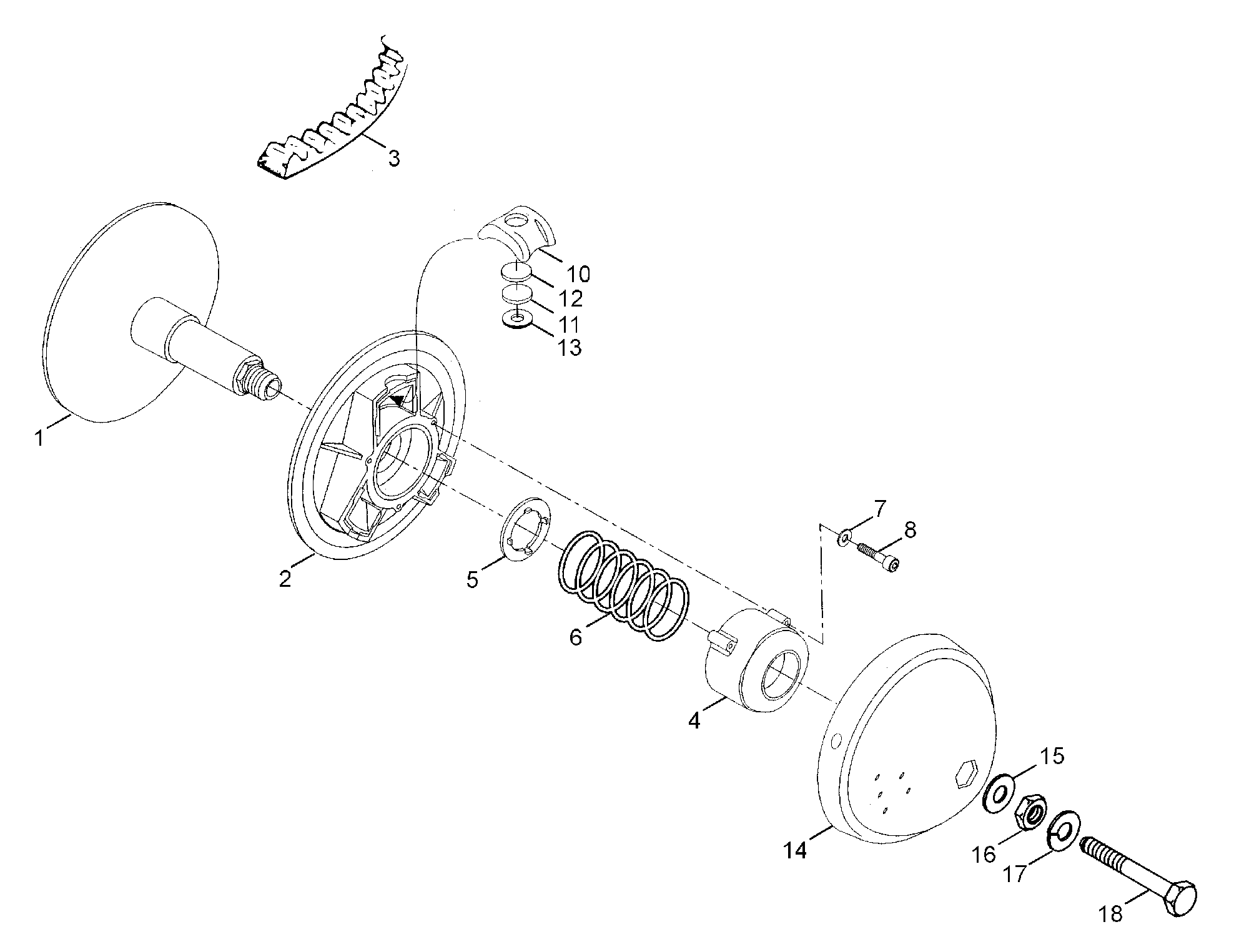

05- Clutch для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
114122 Drive pulley assy. Includes items 1 thru 16Drive pulley assy. Includes items 1 thru 16
-
1417121200 Inner halfInner half
-
2417121300 Outer halfOuter half
-
3414633800 Drive beltDrive belt
-
4417121400 Spring cover assemblSpring cover assembl
-
5417116200 Shoulder washerShoulder washer
-
61471415 Spring, greenSpring, green
-
7420245310 Lock washerLock washer
-
8222964066 Screw M6x40Screw M6x40
-
10417118100 Centrifigural blockCentrifigural block
-
11417120400 Calibration slug 21 gCalibration slug 21 g
-
13417114500 Plastic capPlastic cap
-
14417125100 Domed cupDomed cup
-
15417122400 Lock washerLock washer
-
16417118500 NutNut
-
1720024 Lock washerLock washer
-
1840800 ScrewScrew
