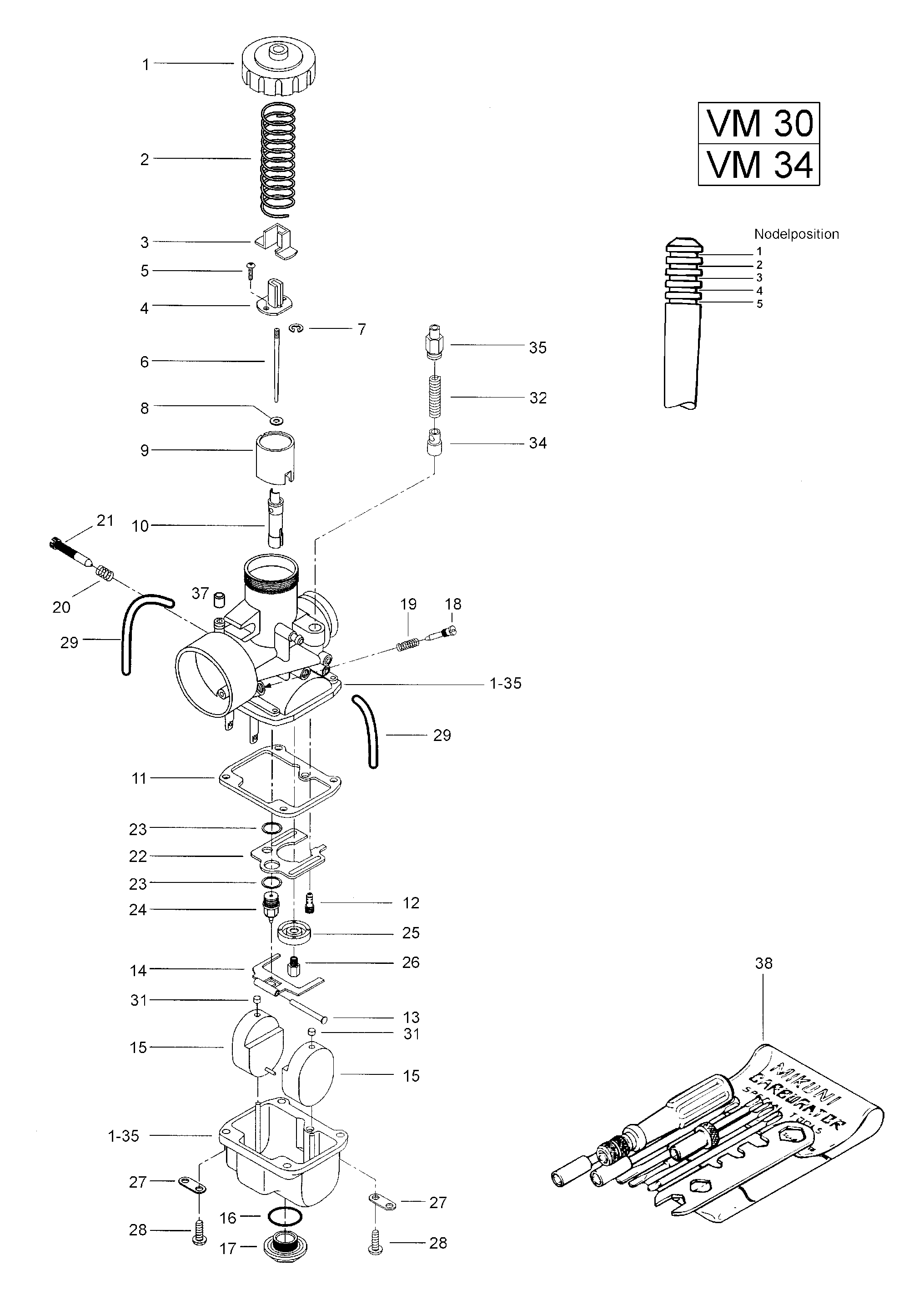

02- Carburetor для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
119065 Carburetor VM30. Includes items 1 thru 37Carburetor VM30. Includes items 1 thru 37
-
1404103700 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404122100 Fitting connectorFitting connector
-
4404160800 ConnectorConnector
-
5404121300 Screw + washerScrew + washer
-
6404152600 Jet needle 6DP9-4Jet needle 6DP9-4
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128400 Throttle valve 2.5Throttle valve 2.5
-
10404116900 Needle jet 159O-8Needle jet 159O-8
-
11404104200 GasketGasket
-
12404109100 Pilot jet 40Pilot jet 40
-
13404103300 Float barm pinFloat barm pin
-
14404107600 Float armFloat arm
-
15404107100 FloatFloat
-
16404107300 WasherWasher
-
17404107400 Plug screwPlug screw
-
18404102300 Idle adjusting screwIdle adjusting screw
-
19404101800 SpringSpring
-
20404101700 SpringSpring
-
21404109700 Throttle stop screwThrottle stop screw
-
22404109600 Baffle plateBaffle plate
-
23404101600 GasketGasket
-
24404147400 Needle valve 1.5Needle valve 1.5
-
25404110900 Baffle ringBaffle ring
-
26404119200 Main jet 175Main jet 175
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161802 Vent tubeVent tube
-
31404127400 CapCap
-
32404127400 SpringSpring
-
33404156400 PlatePlate
-
34404127500 Plunger assyPlunger assy
-
35404127200 Support guideSupport guide
-
37404158900 FilterFilter
-
38404112000 Tool kitTool kit
