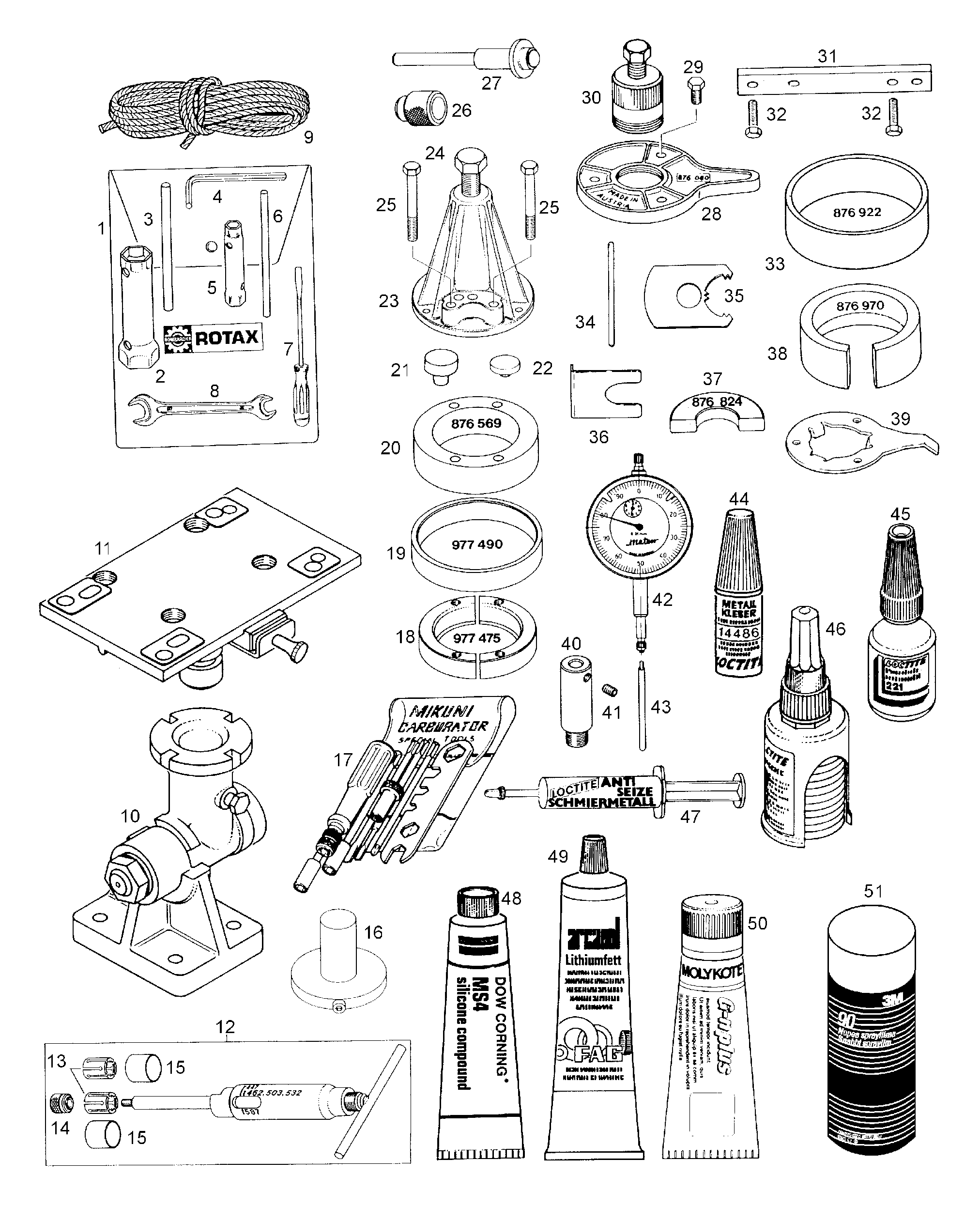

11- Tools для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
1420887354 Tool set. Includes items 1 thru 8Tool set. Includes items 1 thru 8
-
1420876197 Tool bagTool bag
-
2420876210 Socket Wrench 21x26Socket Wrench 21x26
-
3420977420 BoltBolt
-
4420876360 Allen key 5mmAllen key 5mm
-
4420277810 Allen key 6mmAllen key 6mm
-
5420876227 Socket Wrench 10x13Socket Wrench 10x13
-
6420977425 Bolt 6x130Bolt 6x130
-
7420876200 Screw driverScrew driver
-
9420852091 Starting ropeStarting rope
-
9420877640 Trestle Assy. Includes items 9 thru 10Trestle Assy. Includes items 9 thru 10
-
11420877646 Mounting PlateMounting Plate
-
16420877555 Insertion jig assyInsertion jig assy
-
17420876960 Tool set, MikuniTool set, Mikuni
-
18420977475 Ring half, 6207Ring half, 6207
-
19420977490 RingRing
-
20420876569 DistansringDistansring
-
21420876552 Cover, P.T.O. sideCover, P.T.O. side
-
22420876557 Cover, magn.sideCover, magn.side
-
23420876298 Puller. Includes items 23 thru 24Puller. Includes items 23 thru 24
-
24420940755 ScrewScrew
-
25420841201 ScrewScrew
-
26420877020 Circlip Install.SleeveCirclip Install.Sleeve
-
26420877015 Circlip Install. Tool As. Includes items 26 thru 27Circlip Install. Tool As. Includes items 26 thru 27
-
27420877010 Pusher, circlipPusher, circlip
-
28420876080 Holder plateHolder plate
-
29420940591 ScrewScrew
-
30420876065 PullerPuller
-
31420876171 Alig.tool, cyl.Alig.tool, cyl.
-
32420240275 ScrewScrew
-
33420876922 Centr. ring, magn.Centr. ring, magn.
-
34420876640 Crankshaft Fixation b.Crankshaft Fixation b.
-
35420876695 Holder, oilpumpHolder, oilpump
-
36420876620 Distance GaugeDistance Gauge
-
37420876822 Distance GaugeDistance Gauge
-
38420876090 Install.ring, pistonringInstall.ring, pistonring
-
39420876357 Fan HolderFan Holder
-
40420876940 Gauge adapterGauge adapter
-
41420841771 ScrewScrew
-
42420876950 Precision Dial GaugePrecision Dial Gauge
-
43420876945 Gauge pinGauge pin
-
44420897341 Loctite 14486, 10ccLoctite 14486, 10cc
-
45420899785 Loctite 221/violLoctite 221/viol
-
46420899784 Loctite 574/orangeLoctite 574/orange
-
47420297434 Loctite anti seize, 50mLoctite anti seize, 50m
-
48420897061 Silicone com. greaseSilicone com. grease
-
49420897330 Lithium-base greaseLithium-base grease
-
50420297433 Molykote slide pasteMolykote slide paste
-
5132600 Spray-glueSpray-glue
