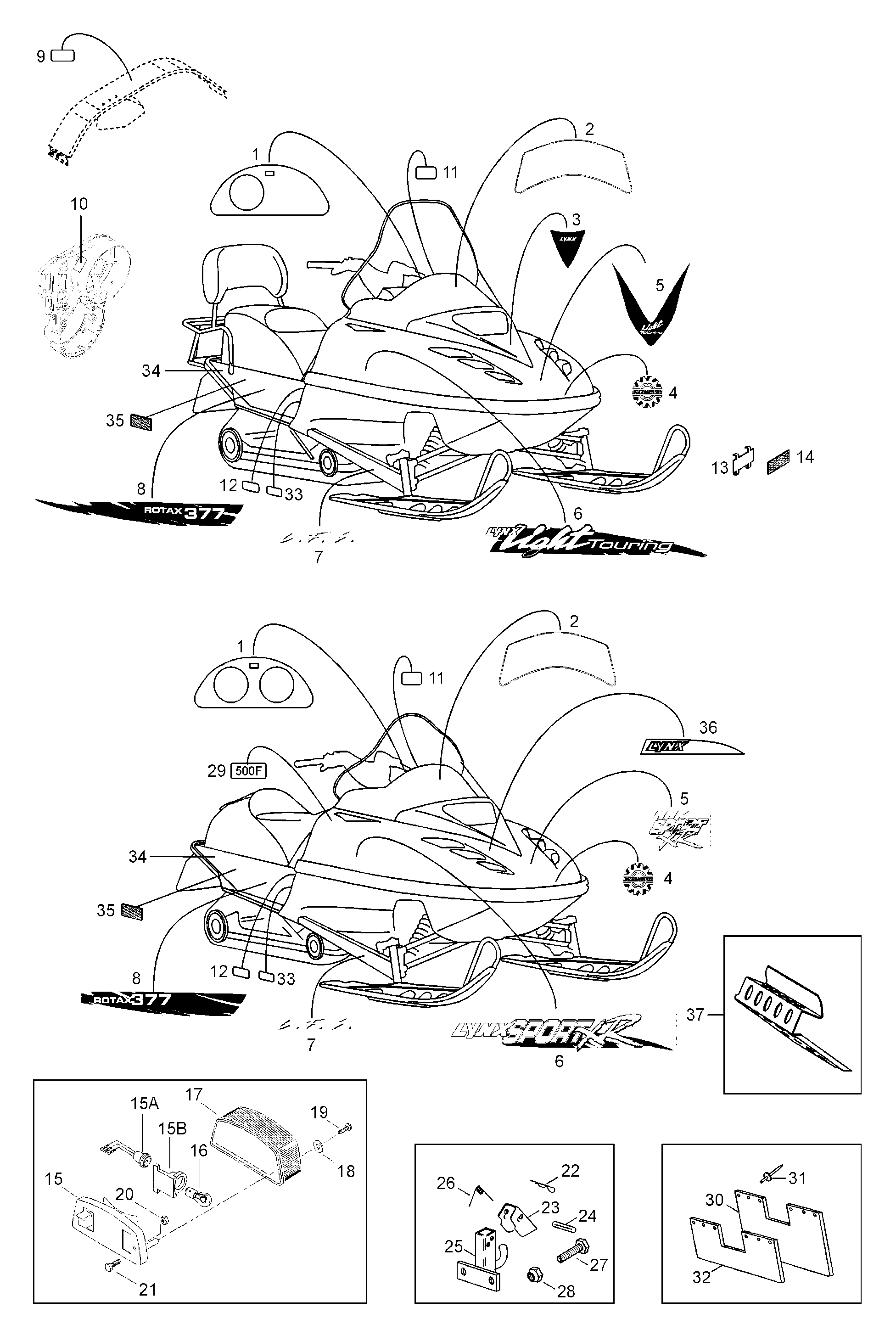

09- Equipment для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
5143327 Instruction decals ( 9, 10, 11, 12, 33)Instruction decals ( 9, 10, 11, 12, 33)
-
5143315 Chasis decals ( 7 and 8)Chasis decals ( 7 and 8)
-
5144201 Hood decals ( 1, 2, 4, 5, 6, 36)Hood decals ( 1, 2, 4, 5, 6, 36)
-
15243305 Instrument panel decalInstrument panel decal
-
25241725 Instruction decalInstruction decal
-
4516000282 Logo, BOMBARDIERLogo, BOMBARDIER
-
55243304 Decal for hood, frontDecal for hood, front
-
65243301 Decal hood L.H.Decal hood L.H.
-
65243300 Decal hood R.H.Decal hood R.H.
-
75343311 LFS-decal blue/yellowLFS-decal blue/yellow
-
85243306 Decal for frame R.H.Decal for frame R.H.
-
85243310 Decal for frame L.H.Decal for frame L.H.
-
9546820 Belt quard decalBelt quard decal
-
10544073 Fan belt decalFan belt decal
-
11549711 Dacal for instrumentDacal for instrument
-
12544068 Oil check decalOil check decal
-
135440839 SupportSupport
-
1421060 White reflectorWhite reflector
-
155341214 Rear lamp assy. Includes items 15 thru 20Rear lamp assy. Includes items 15 thru 20
-
15414979400 Taillamp housingTaillamp housing
-
15a414979400 SocketSocket
-
15b414979411 Rubber damperRubber damper
-
16410504000 BulbBulb
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
2033200 Nut M6Nut M6
-
2140002 Screw M6x40Screw M6x40
-
30534727 Snow guardSnow guard
-
3136037 RivetRivet
-
32537577 SupportSupport
-
33418002200 CE-decalCE-decal
-
345142628 FrameFrame
-
3521121 Reflector, yellowReflector, yellow
-
365243302 Upper decal hood R.HUpper decal hood R.H
-
365243303 Upper decal hood L.H.Upper decal hood L.H.
-
375243453 R.H. Front footrestR.H. Front footrest
-
375243452 L.H. Front footrestL.H. Front footrest
