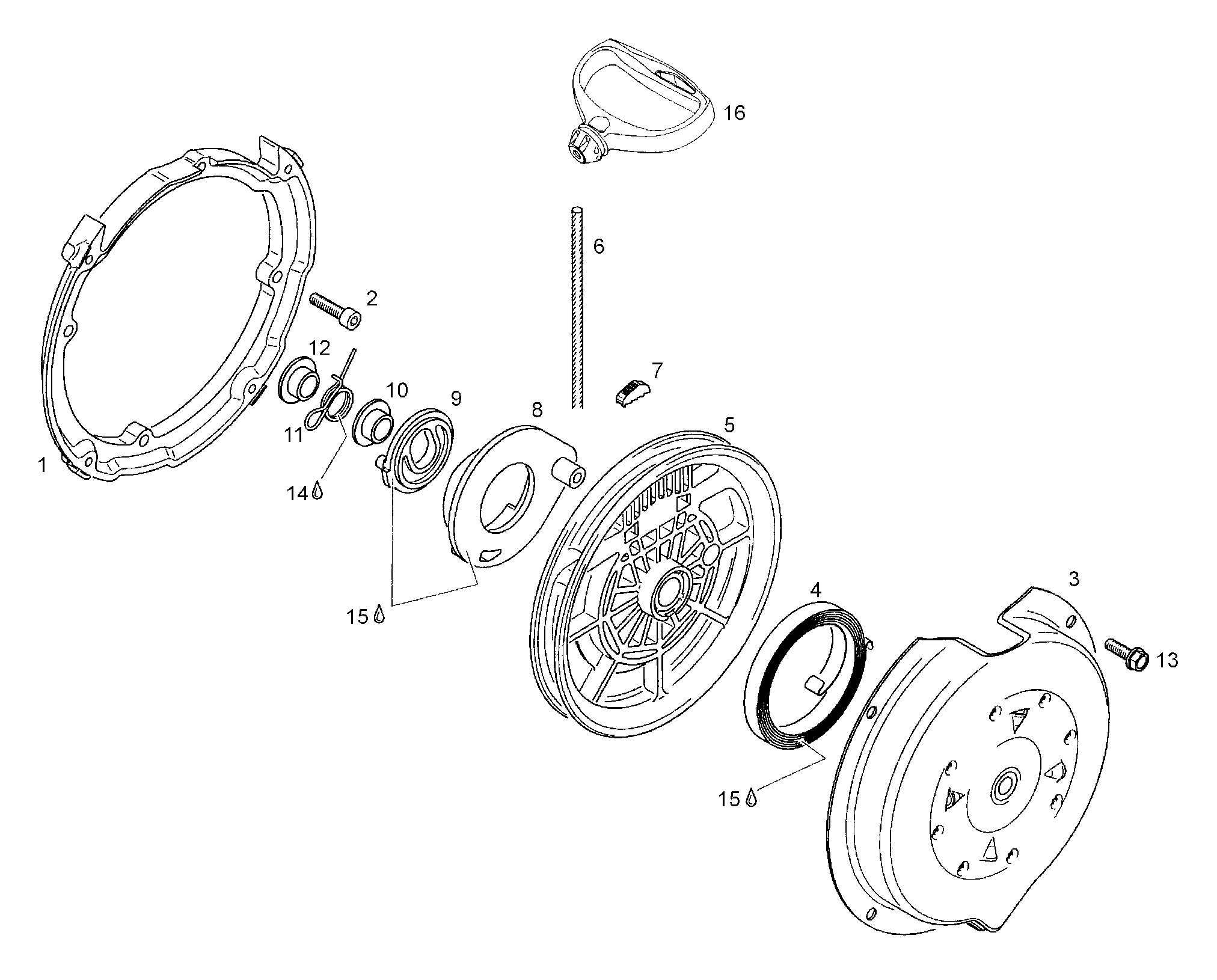

04- Rewind Starter для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
1420888216 Rewind starter kit. Includes items 1 thru 15Rewind starter kit. Includes items 1 thru 15
-
1420810952 Connecting flangeConnecting flange
-
2420840401 Screw M6x22Screw M6x22
-
3420888215 Rewind starter assy. Includes items 3 thru 12Rewind starter assy. Includes items 3 thru 12
-
3420811345 Starter housing assyStarter housing assy
-
4420939115 Spring assySpring assy
-
5420852480 Rope sheaveRope sheave
-
6420852491 Starter rope (2.2 m)Starter rope (2.2 m)
-
6412500100 Starter rope (30 m)Starter rope (30 m)
-
7420852070 KeyKey
-
8420852293 PawlPawl
-
9420852300 Pawl lockPawl lock
-
10420847925 Stage sleeveStage sleeve
-
11420938986 Locking springLocking spring
-
12420847920 Stage sleeveStage sleeve
-
13420941250 Taptite screw M6x20Taptite screw M6x20
-
14420297433 Molykote G-N 50gMolykote G-N 50g
-
15420897061 Silicon compoundSilicon compound
-
16572084400 HandleHandle
